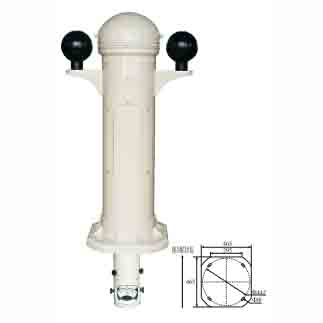

Reflector Magnetic Compass CGF-180
General
The Reflective Magnetic Compass is a new magnetic compass, with a stylish and elegant design. The reflective dial is clear and bright. The magnetic compass uses a new generation of directional magnets and calibration magnets, which can greatly improve the accuracy of the magnetic compass and sensors.
Standard Specifications
| Type of compass | Reflector Compass |
|---|---|
| Compass bowl | Card dia 180mm |
| Power supply | AC100V~220V DC24V |
| Type approvals | CCS, RS |
| On-shaping head | Width 442mm, Aperture Φ180mm |
| Net weight | 54.05kg |
(Technical drawing image included in the source)
Standard Accessories
| Correcting Magnets for B,C and H | 12 |
|---|---|
| Quadrantal correctors | 2 |
| Flinders bars | 4 |
| Spare bulbs | 10(24V/40W) |
Technical Data
| Using temperature | -30℃~+60℃ |
|---|---|
| Inducing rudder | ±1°, 0.23° |
| Induced(1℃) | 0.23° |
| Heeling angle | ±0.62° |
| Heel-and-bank | ±0.09° |
Adjustable Azimuth Reading Device
-
Adjustable Azimuth reading device GFC-180
Note: The description may be different with the product, please contact us for quotation.
