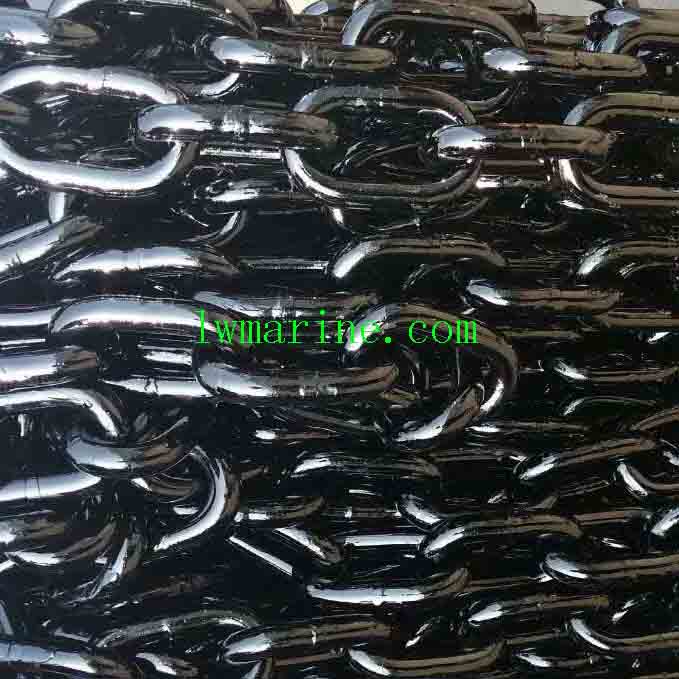

R3 Offshore Mooring Chain

R3 Grade Offshore Mooring Chain – Engineered for Extreme Marine Environments

Unmatched Performance for Permanent Offshore Installations

Specially designed for oil platforms, FPSOs, and renewable energy structures, our R3 Offshore Mooring Chain deliver superior strength and fatigue resistance in the harshest ocean conditions. Unlike standard anchor chains, these high-performance chains are built for decades of continuous service with:

✔ Ultra-High Tensile Strength (Minimum Break Load: 800 N/mm²)
✔ Exceptional Fatigue Life (100,000+ load cycles)
✔ Advanced Corrosion Protection with dual-layer coatings
✔ API 2F & DNV-OS-E302 Certified for critical applications

Comprehensive Inspection Protocol

1. Visual Examination (Monthly)
• Link Inspection: Check for cracks, pitting, or deformation
• Stud Integrity: Verify no movement or wear exceeds 5% diameter loss
• Corrosion Mapping: Document rust progression with photographic benchmarks

2. Dimensional Checks (Quarterly)
• Wear Measurement: Ultrasonic testing for diameter reduction
• Elongation Monitoring: Mark 10-link segments for stretch comparison
• Shackle Tolerance: Verify Kenter/Baldt shackle tolerances within 2%

3. Advanced Testing (Annual)

Magnetic Particle Inspection for surface cracks
Ultrasonic Thickness Testing on random links
Proof Load Testing to 50% MBL

Critical Replacement Thresholds:
⚠ Replace Immediately If:

Any crack indication found
Wear exceeds 12% nominal diameter
Elongation >5% in any 3-link group

Maintenance Best Practices

Cleaning & Preservation:
• Bi-monthly: High-pressure freshwater wash (3500 psi minimum)
• Annual: Surface preparation and re-coating of wear zones

Lubrication Standards:

Use marine-grade anti-seize compound
Apply to all interlink contact surfaces
Special attention to shackle threads

Storage Requirements:

Dry, ventilated storage with <60% humidity
Non-metallic separators between chain layers
Cathodic protection for long-term storage

Parameters:

R3s			R3		R4			Chain Diameter
Studless Tension	Stud Tension	Breaking Load	Stud, Studless Tension	Breaking Load	Studless Tension	Stud Tension	Breaking Load	Chain Diameter
831	859	1189	745	1065	917	1031	1308	34
928	960	1327	832	1189	1024	1152	1461	36
1030	1065	1473	923	1319	1136	1278	1621	38
1136	1176	1626	1019	1456	1254	1411	1789	40
1248	1291	1786	1119	1599	1377	1549	1965	42
1364	1411	1952	1223	1748	1505	1693	2148	44
1485	1536	2124	1331	1903	1639	1843	2338	46
1610	1666	2304	1444	2064	1777	1999	2536	48
1740	1800	2490	1560	2230	1920	2160	2740	50
1875	1940	2683	1681	2403	2069	2327	2952	52
2014	2083	2882	1806	2581	2222	2500	3171	54
2157	2231	3086	1934	2764	2380	2677	3396	56
2304	2384	3297	2066	2953	2543	2860	3628	58
2456	2541	3514	2202	3147	2710	3049	3867	60
2612	2702	3737	2342	3347	2882	3242	4112	62
2771	2867	3966	2485	3552	3058	3440	4364	64
2935	3036	4200	2632	3762	3239	3644	4622	66
3103	3210	4440	2782	3977	3424	3852	4886	68
3274	3387	4686	2936	4196	3613	4065	5156	70
3539	3661	5064	3173	4535	3905	4393	5572	73
3812	3943	5454	3417	4885	4206	4731	6002	76
3998	4136	5721	3584	5124	4411	4963	6295	78
4284	4432	6130	3841	5490	4727	5318	6746	81
4578	4735	6550	4104	5866	5051	5682	7208	84
4879	5047	6981	4374	6252	5383	6056	7682	87
5187	5366	7423	4651	6648	5724	6439	8168	90
5397	5583	7723	4838	6916	5955	6699	8498	92
5717	5914	8180	5125	7326	6308	7096	9002	95
5934	6138	8491	5320	7604	6547	7366	9343	97
6264	6480	8964	5616	8028	6912	7776	9864	100
6489	6712	9285	5817	8316	7160	8055	10217	102
6830	7065	9774	6123	8753	7536	8478	10755	105
7061	7304	10104	6330	9049	7791	8765	11118	107
7530	7789	10775	6751	9650	8309	9347	11857	111
7888	8160	11288	7072	10109	8704	9792	12421	114
8251	8536	11808	7398	10575	9105	10243	12993	117
8620	8917	12335	7728	11047	9511	10700	13573	120
8868	9174	12690	7951	11365	9785	11008	13964	122
9118	9433	13048	8175	11686	10062	11319	14358	124
9498	9825	13591	8515	12172	10480	11790	14956	127
9881	10222	14140	8859	12663	10903	12266	15559	130
10139	10488	14509	9090	12994	11188	12586	15965	132
10791	11163	15442	9674	13829	11907	13395	16992	137
11452	11847	16389	10268	14677	12637	14217	18034	142
12123	12541	17348	10869	15536	13377	15049	19089	147
12800	13242	18318	11476	16405	14125	15890	20157	152
13485	13950	19297	12090	17282	14880	16740	21235	157
14175	14664	20284	12708	18166	15641	17596	22321	162
