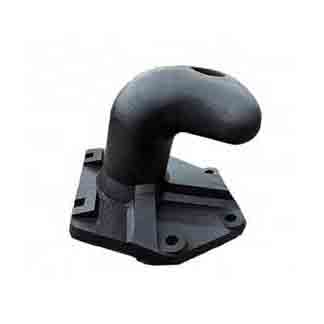

R Type Dock Bollard

R Type Dock Bollard – Superior Mooring Performance for Modern Ports

Engineered for Heavy-Duty Marine Applications

Our R Type Dock Bollard delivers exceptional mooring security for commercial ports and harbors. Designed with a robust curved profile, this bollard provides reliable vessel anchoring while minimizing rope wear. As part of our complete bollard solutions, we offer customized configurations to meet your specific port requirements.

5 Key Advantages of R-Type Bollards

✔ Exceptional Load-Bearing Capacity

Withstands heavy mooring forces from cargo ships and tankers
Reinforced structure prevents deformation under stress
Tested beyond industry standards for maximum safety

✔ Quick & Cost-Efficient Installation

Simple bolt-down or embedded mounting options
Reduces port downtime during installation
Pre-engineered for hassle-free setup

✔ Marine-Grade Durability

Constructed from high-strength cast steel
Corrosion-resistant coatings for saltwater environments
20+ year service life with minimal maintenance

✔ Customizable Design Solutions

Adjustable sizes for different vessel classes
Optional stainless steel variants available
Can be tailored to your dock layout

✔ Enhanced Operational Safety

Secure rope retention prevents vessel drift
Reduces crew injury risks during mooring
Meets all international port safety regulations

Technical Specifications

Feature	Specification
Model Type	R-Type Dock Bollard
Material	Premium Cast Steel
Load Capacity	Custom 10T-500T options
Surface Treatment	Hot-dip galvanized or marine paint
Certifications	CCS, ABS, BV, LR, NK, RINA

Complete Bollard Selection

We manufacture all major bollard types:

K Head – For maximum rope security
Stag Horn – Unique dual-horn design
T Head – Ideal for wire rope mooring
J Type – Compact space-saving solution
Single Bitt – Perfect for smaller vessels

Parameters:

Product No.	Capacity	Bolts Quantity	Sizes(mm)
Product No.	(tonnes)	Bolts Quantity	A	B	C	D	E	F	G	H
R-001	10	4	200	216	236	160	106	218	120	32
R-002	25	4	245	350	305	250	150	285	127	45
R-003	30	5	290	430	410	360	190	360	150	45
R-004	50	5	365	550	540	430	250	475	200	50
R-005	75	5	430	650	650	520	300	570	235	70
R-006	80	5	415	518	540	430	250	430	245	55
R-007	120	7	490	678	642	600	330	584	290	65
R-008	200	7	520	950	780	680	360	670	306	80
R-009	200	7	600	950	780	680	360	670	386	80
R-010	200	6	656	1020	930	800	460	830	349	100
