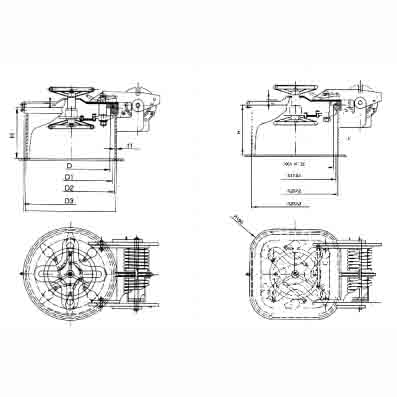

QUICK OPEN&CLOSE WATERTIGHT HATCH COVER
263.YHS-006
PRODUCT DESCRIPTION
THIS KIND OF HATCH COVER COULD WITHSTAND THE PRESSURE OF 0.2MPa.
TECHNICAL DATA TABLE 1
| TYPE | ACCESS WAY SIZE | SIZE OF OPENING | INSIDE DIA. OF COAMING | OUT. DIA. OF COAMING | THICK. OF COVER | COAMING THICK. | COAMING HEIGHT | CENTRAL DISTANCE | WEIGHT (KG) |
|---|---|---|---|---|---|---|---|---|---|
| A | 600 | 640 | 670 | 720 | 12 | 12 | 200 | 473 | 245 |
| A | 650 | 690 | 720 | 770 | 12 | 12 | 200 | 498 | 266 |
| A | 700 | 740 | 770 | 820 | 12 | 12 | 200 | 523 | 285 |
| A | 750 | 790 | 820 | 870 | 12 | 12 | 200 | 548 | 306 |
| A | 800 | 840 | 870 | 920 | 12 | 12 | 200 | 573 | 328 |
TECHNICAL DATA TABLE 2
| TYPE | ACCESS WAY SIZE | SIZE OF OPENING | INSIDE DIA. OF COAMING | OUT. DIA. OF COAMING | THICK. OF COVER | COAMING THICK. | COAMING HEIGHT | CENTRAL DISTANCE | WEIGHT (KG) |
|---|---|---|---|---|---|---|---|---|---|
| A | 600 | 640 | 670 | 720 | 12 | 12 | 200 | 473 | 245 |
| A | 650 | 690 | 720 | 770 | 12 | 12 | 200 | 498 | 266 |
| A | 700 | 740 | 770 | 820 | 12 | 12 | 200 | 523 | 285 |
| A | 750 | 790 | 820 | 870 | 12 | 12 | 200 | 548 | 306 |
| A | 800 | 840 | 870 | 920 | 12 | 12 | 200 | 573 | 328 |
Note: The description may be different with the product, please contact us for quotation.
