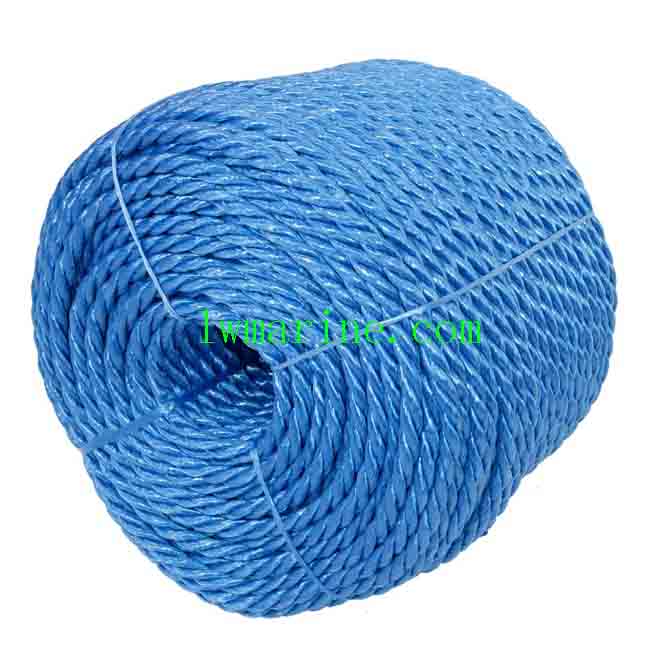

Polypropylene Rope
General
-
Material: Polyolefin (PP/PE)
-
Density: 0.92g/cm³, Floating
-
Melting Point: 160℃
-
Elongation at Break: 10-15%
-
Abrasion Resistance: Good
-
UV Resistance: Good
-
Chemical Resistance: Good
Polypropylene Rope is a high-performance rope made by special high-quality mixed PP/PE fiber and widely used worldwide for its high performance and competitive price. It is also called Danline or Polyolefin. The Polypropylene Rope has 30% higher MBL (Minimum Breaking Load) than general PP rope, and also has better abrasion resistance, UV resistance, and longer service life.
Application
Ship mooring, port towing, pelagic fishing, sea farming.
8-Strand and 12-Strand Technical Parameters (ISO MEG4)
| Size (mm) | Circumference (inch) | Weight (kg/m) | Weight (kg/220m) | ISO MBF (kN) | ISO MBF (Ton) | MEG4 LDBF (kN) | MEG4 LDBF (Ton) |
|---|---|---|---|---|---|---|---|
| 24 | 3 | 274 | 60.3 | 118 | 12.0 | 106 | 10.8 |
| 28 | 3-1/2 | 372 | 81.8 | 155 | 15.9 | 140 | 14.3 |
| 32 | 4 | 487 | 107.1 | 192 | 19.6 | 173 | 17.6 |
| 36 | 4-1/2 | 618 | 136.0 | 240 | 24.5 | 216 | 22.1 |
| 40 | 5 | 762 | 167.6 | 300 | 30.6 | 270 | 27.5 |
| 44 | 5-1/2 | 920 | 202.4 | 357 | 36.4 | 321 | 32.8 |
| 45 | 5-5/8 | 968 | 213.0 | 371 | 37.9 | 334 | 34.1 |
| 48 | 6 | 1092 | 240.2 | 415 | 42.3 | 374 | 38.1 |
| 50 | 6-1/4 | 1195 | 262.9 | 453 | 46.3 | 408 | 41.6 |
| 52 | 6-1/2 | 1281 | 281.8 | 492 | 50.2 | 443 | 45.2 |
| 55 | 6-7/8 | 1445 | 317.9 | 535 | 54.6 | 482 | 49.2 |
| 56 | 7 | 1491 | 328.0 | 550 | 56.1 | 495 | 50.5 |
| 60 | 7-1/2 | 1711 | 376.4 | 635 | 64.8 | 571 | 58.3 |
| 64 | 8 | 1963 | 429.7 | 710 | 72.4 | 639 | 65.2 |
| 65 | 8-1/8 | 2018 | 444.0 | 732 | 74.7 | 659 | 67.3 |
| 68 | 8-1/2 | 2205 | 485.1 | 799 | 81.6 | 719 | 73.4 |
| 70 | 8-3/4 | 2341 | 515.0 | 844 | 86.1 | 759 | 77.5 |
| 72 | 9 | 2467 | 542.7 | 888 | 90.6 | 800 | 81.6 |
| 75 | 9-3/8 | 2680 | 590.0 | 965 | 98.4 | 868 | 88.6 |
| 80 | 10 | 3045 | 669.9 | 1093 | 111.5 | 984 | 100.4 |
| 85 | 10-5/8 | 3450 | 759.0 | 1239 | 126.4 | 1115 | 113.8 |
| 88 | 11 | 3685 | 810.7 | 1326 | 135.3 | 1194 | 121.8 |
| 90 | 11-1/4 | 3888 | 851.0 | 1385 | 138.3 | 1247 | 127.2 |
| 95 | 11-7/8 | 4330 | 948.0 | 1512 | 154.3 | 1361 | 138.9 |
| 96 | 12 | 4378 | 963.2 | 1555 | 158.7 | 1399 | 142.8 |
| 100 | 12-1/2 | 4773 | 1050.1 | 1681 | 171.5 | 1513 | 154.3 |
| 104 | 13 | 5145 | 1131.9 | 1806 | 184.3 | 1626 | 165.9 |
| 112 | 14 | 5964 | 1312.1 | 2104 | 214.7 | 1893 | 193.2 |
| 120 | 15 | 6845 | 1506.1 | 2344 | 239.2 | 2110 | 215.3 |
Note:
-
MBL = Minimum Breaking Force per ISO2307.
-
LDBF = Line Design Break Force per OCIMF MEG4 Appendix B.
-
Other sizes are available upon request.
Note: The description may be different with the product, please contact us for quotation.
