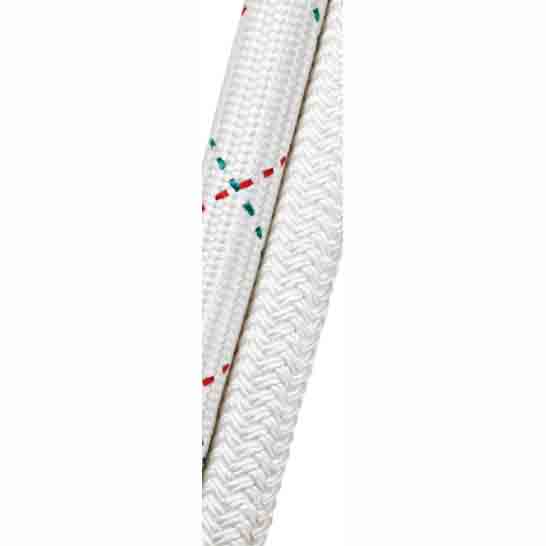

Polyamide and Polyester Double Braided Rope
| Size (mm) | Circumference (inch) | Weight (kg/m) | Weight (kg/220m) | ISO MBF (kN) | ISO MBF (Ton) | MEG4 LDBF (kN) | MEG4 LDBF (Ton) |
|---|---|---|---|---|---|---|---|
| 40 | 5 | 1130 | 248.6 | 400 | 40.8 | 360 | 36.7 |
| 44 | 5 1/2 | 1333 | 293.3 | 483 | 49.3 | 435 | 44.4 |
| 48 | 6 | 1688 | 371.4 | 564 | 57.6 | 508 | 51.8 |
| 52 | 6 1/2 | 2040 | 448.8 | 652 | 66.5 | 587 | 59.9 |
| 56 | 7 | 2325 | 511.5 | 745 | 76.0 | 671 | 68.4 |
| 60 | 7 1/2 | 2755 | 606.1 | 848 | 86.5 | 763 | 77.8 |
| 64 | 8 | 3145 | 691.9 | 967 | 98.6 | 870 | 88.8 |
| 68 | 8 1/2 | 3550 | 781.0 | 1087 | 110.9 | 978 | 99.8 |
| 72 | 9 | 4000 | 880.0 | 1232 | 125.6 | 1109 | 113.1 |
| 76 | 9 1/2 | 4488 | 987.4 | 1352 | 137.9 | 1217 | 124.2 |
| 80 | 10 | 4900 | 1078.0 | 1486 | 151.6 | 1337 | 136.4 |
| 84 | 10 1/2 | 5450 | 1199.0 | 1616 | 164.9 | 1454 | 148.3 |
| 88 | 11 | 5900 | 1298.0 | 1755 | 179.1 | 1579 | 161.1 |
| 92 | 11 1/2 | 6550 | 1441.0 | 1910 | 194.9 | 1719 | 175.4 |
| 96 | 12 | 7160 | 1575.2 | 2063 | 210.5 | 1857 | 189.4 |
| 100 | 12 1/2 | 7860 | 1729.2 | 2250 | 229.6 | 2025 | 206.6 |
| 104 | 13 | 8500 | 1870.0 | 2430 | 248.0 | 2187 | 223.1 |
| 108 | 13 1/2 | 9300 | 2046.0 | 2661 | 271.5 | 2395 | 244.4 |
| 112 | 14 | 10000 | 2200.0 | 2881 | 293.9 | 2592 | 264.5 |
| 116 | 14 1/2 | 10800 | 2376.0 | 3086 | 314.8 | 2778 | 283.4 |
| 120 | 15 | 11655 | 2564.0 | 3273 | 333.9 | 2946 | 300.6 |
Note: The description may be different with the product, please contact us for quotation.
