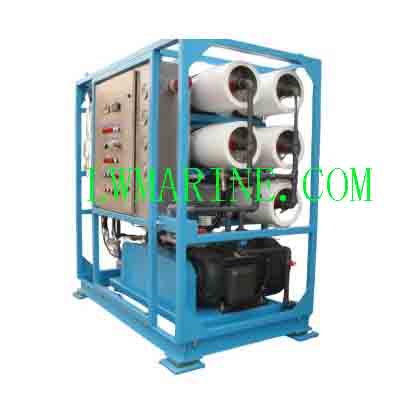

Marine Plate Type Fresh Water Generator | Compact Reverse Osmosis Desalination System
Advanced Portable Water Desalination Solution for Marine & Offshore Applications
Our Plate Type Fresh Water Generator represents the pinnacle of reverse osmosis technology, specifically engineered to transform seawater into clean, safe drinking water that meets stringent national standards (GB5749-85). Utilizing premium DOW seawater RO membranes with up to 99.7% salt rejection rate, this compact system delivers reliable freshwater production without chemical additives—perfect for vessels, offshore platforms, and remote coastal locations.
Designed for ease of use and maximum reliability, this fully automated system features one-touch operation, comprehensive protection mechanisms, and corrosion-resistant construction, ensuring continuous access to fresh, great-tasting drinking water in the most challenging marine environments.
Technical Specifications:
| Parameter | Specification |
|---|---|
| Model | HS-SWRO-5 m³ |
| Production Capacity | 5 m³/day |
| Recovery Rate | 20% |
| Power Supply | AC220V, 50HZ (3KW) |
| Feed Water TDS | <38,000 ppm |
| Product Water TDS | <600 ppm |
| Operating Pressure | <6 MPa |
| Operating Temperature | 10-45°C |
| Dimensions | 90×86×140 cm |
| Net Weight | 150-200 kg |
| Shipping Weight | 200-250 kg |
Premium System Components & Features:
1. Advanced Reverse Osmosis System
-
DOW Seawater RO Membranes: 99.7% maximum salt rejection rate
-
SS316 High-Pressure Pump: With high/low pressure protection devices
-
FRP Membrane Housings: Corrosion-resistant, end-port design
2. Comprehensive Pretreatment
-
Quartz Sand Filter: Removes large impurities and algae
-
Dual-Stage Cartridge Filters: 5μm + 10μm precision filtration
-
Automatic Dosing System: SEKO metering pump reduces membrane fouling
3. Intelligent Operation & Safety
-
One-Touch Automatic Operation: PLC + touch screen control
-
Real-Time Monitoring: Online conductivity meter and pressure gauges
-
Complete Protection: High/low voltage protection with fault alarm system
-
UV Sterilization: Final disinfection ensures water safety
4. Portable & Versatile Design
-
Stainless Steel Frame: Polished for marine corrosion resistance
-
Universal Wheels & Adjustable Legs: Easy mobility and installation
-
Flexible Power Options: Compatible with AC power, generators, solar, and wind
The description/sizes may be different with goods, please check with us when order.
