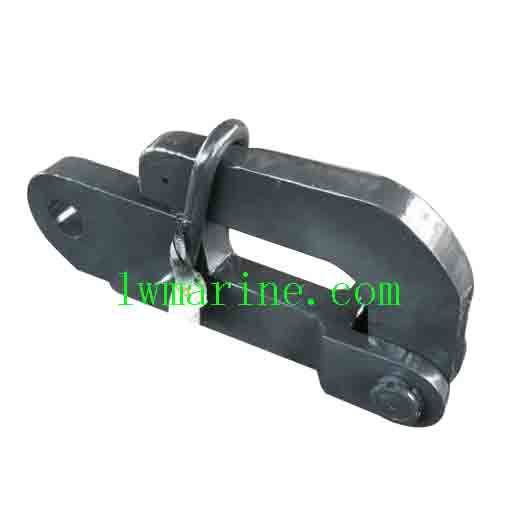

Heavy-Duty Pelican Hook Chain Stopper – Secure Anchoring Solutions for Marine Vessels
Ensure maximum safety and reliability in your vessel’s anchoring system with our premium Pelican Hook Chain Stopper. This crucial marine component provides secure chain locking capability during mooring operations, offering quick engagement and release when needed. Manufactured to exacting standards, our chain stoppers feature robust construction and protective black painting finish for enhanced corrosion resistance in harsh marine environments.
Comprehensive Size Range & Technical Specifications
Our pelican hook chain stoppers accommodate various chain sizes with precise engineering:
| Chain Size | Dimensions (Inches) | Load Capacity | |||||||
|---|---|---|---|---|---|---|---|---|---|
| Inches | mm | A | B Min. | B Max. | C | D | E | Proof Load (Lbs.) | Break Load (Lbs.) |
| 3/4″ | 19 | 16 | 33-1/4 | 40-1/2 | 1 | 11 | 7/8 | 67,500 | 91,100 |
| 7/8″ | 22 | 17-1/4 | 38-7/16 | 45-9/16 | 1-7/32 | 11 | 1 | 88,200 | 119,000 |
| 1″ – 1-1/8″ | 25-29 | 19-1/2 | 46-7/8 | 55-1/2 | 1-17/32 | 13 | 1-1/8 | 145,000 | 195,000 |
| 1-1/4″ | 32 | 19-5/8 | 48 | 56-5/8 | 1-17/32 | 13 | 1-1/4 | 178,200 | 240,600 |
| 1-1/4HS – 1-1/2″ | 32HS-38 | 23-3/4 | 55-3/16 | 65-11/16 | 1-3/4 | 16 | 1-1/2 | 211,500 | 285,500 |
| 1-3/8HS – 1-5/8″ | 34HS-42 | 23-3/4 | 55-3/16 | 65-11/16 | 2 | 16 | 1-1/2 | 211,500 | 285,500 |
| 1-5/8HS – 2″ | 42HS-51 | 24-1/8 | 59-3/16 | 69-11/16 | 2-7/16 | 16 | 1-1/2 | 252,000 | 340,200 |
| 2-1/8″ – 2-3/8″ | 54-60 | 26-1/4 | 65-5/8 | 76-1/8 | 2-9/16 | 16 | 1-5/8 | 252,000 | 340,200 |
| 2-1/2″ – 2-5/8″ | 64-67 | 29-3/4 | 74-3/8 | 87-1/2 | 3-1/8 | 20 | 1-7/8 | 292,500 | 395,000 |
| 2-3/4″ – 2-3/4HD | 70-70HD | 29-3/4 | 86-5/8 | 89-3/4 | 3-1/8 | 20 | 1-7/8 | 352,000 | 476,000 |
| 3HD – 3-1/4″ | 76HD-83 | 36 | 90-3/4 | 106-1/2 | 3-3/4 | 24 | 2-3/8 | 403,000 | 610,000 |
| 3-3/8″ – 3-1/2″ | 86-89 | 38-5/8 | 97-7/16 | 113-1/16 | 3-7/8 | 24 | 2-5/8 | 492,000 | 744,000 |
| 3-1/2HD – 3-3/4″ | 89HD-95 | 44-3/8 | 110 | 128-1/8 | 4-1/2 | 27-1/2 | 2-7/8 | 706,000 | 1,068,000 |
| 4-3/4″ | 121 | 44-3/8 | 130-5/8 | 147-5/8 | 5-3/8 | 27-1/2 | 2-7/8 | 706,000 | 1,068,000 |
Note: HS = High Strength Chain, HD = Heavy Duty Chain
Key Features & Applications
-
Heavy-duty marine chain stoppers for commercial and naval vessels
-
Quick-release pelican hook mechanism for efficient operations
-
High-strength chain compatibility with proven load capacity
-
Corrosion-resistant black painted finish for extended service life
-
Anchor chain locking systems for secure vessel mooring
-
Marine-grade construction meeting international standards
The description/sizes may be different with goods, please check with us when order.
