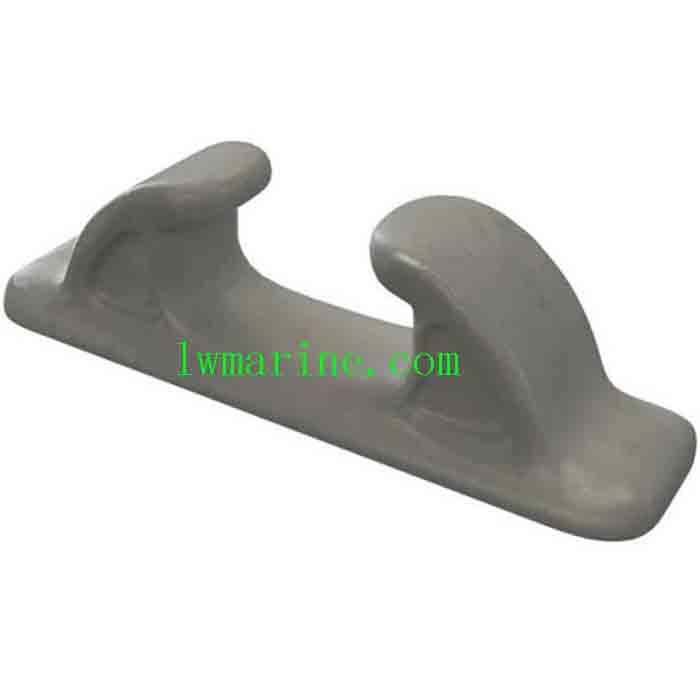

Open Chock JIS F-2006 Type FC – High-Strength Marine Rope Guide with International Certification
Engineered for reliability and smooth rope handling, our Open Chock JIS F-2006 Type FC ensures safe and efficient mooring operations for various marine applications. With strict quality control and comprehensive international certifications including BV, CCS, DNV, LR, KR, ABS, and RINA, these chocks deliver trusted performance worldwide. The inner contact surface is precision-finished to minimize rope wear and extend service life.
We specialize in designing and manufacturing Panama chocks in multiple configurations, including CB34-76 Type A, B, C, and D, to meet diverse vessel requirements. Trusted by both military and industrial ships, our deck fittings operate effectively across global maritime environments.
| Product No. | Size A (inch) | B (inch) | C (inch) | D (inch) | E (inch) | F (inch) | G (inch) | J (inch) | K (inch) | L (inch) | M (inch) | N (inch) | P (inch) | S (inch) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| OCJ-001 | 9″ | 27-3/4″ | 6 | 12 | 10-1/8″ | 4-1/2″ | 7/8″ | 1-1/2″ | 2-1/16″ | 1-1/8″ | 1-3/8″ | 4-7/8″ | 5-1/16″ | 4-1/4″ |
| OCJ-002 | 10″ | 30-3/8″ | 6-5/8″ | 13-1/4″ | 11-1/8″ | 5 | 1 | 1-9/16″ | 2-3/16″ | 1-1/4″ | 1-1/2″ | 5-7/16″ | 5-3/8″ | 4-3/4″ |
| OCJ-003 | 12″ | 36 | 8 | 16 | 13-3/8″ | 6 | 1-1/4″ | 1-7/8″ | 2-5/8″ | 1-1/2″ | 1-3/4″ | 6-1/2″ | 6-3/4″ | 5-3/4″ |
| OCJ-004 | 14″ | 42 | 9-3/8″ | 18-3/4″ | 15-5/8″ | 7 | 1-1/4″ | 2-3/16″ | 3-1/16″ | 1-3/4″ | 2 | 7-5/8″ | 7-7/8″ | 6-11/16″ |
| OCJ-005 | 16″ | 48 | 10-3/4″ | 21-1/2″ | 17-3/4″ | 8 | 1-3/8″ | 1-3/8″ | 3-3/8″ | 2 | 2-1/4″ | 8-5/8″ | 9 | 7-3/4″ |
| OCJ-006 | 18″ | 54 | 12 | 24 | 20 | 9 | 1-1/2″ | 1-1/2″ | 3-7/8″ | 2-1/4″ | 2-1/2″ | 9-3/4″ | 10-1/8″ | 8-5/8″ |
Key Features & Benefits:
-
Smooth Rope Contact Surface: Precision-finished inner edges to reduce rope abrasion and extend lifespan
-
International Marine Certifications: Compliant with BV, CCS, DNV, LR, KR, ABS, and RINA standards
-
Multiple Type Availability: CB34-76 Type A, B, C, and D models for flexible application
-
Robust Panama Chock Design: Ideal for military, commercial, and industrial vessel mooring systems
-
Global Reliability: Proven performance in diverse maritime environments and operating conditions
Applications:
-
Military and naval vessels
-
Commercial shipping and cargo ships
-
Industrial and offshore support vessels
-
Port and harbor mooring systems
-
Custom shipbuilding and vessel retrofitting
The description/sizes may be different with goods, please check with us when order.
