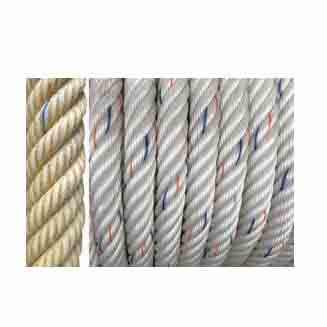

Nylon Single Filament 6 Strands Composite Rope

Nylon Single Filament 6 Strands Composite Rope

General Description

Varieties include nylon multifilament/nylon monofilament and other series products, which are produced through specific processing technology, with extramadinary resistance to abrasion, more than 2 times higher than that of ordinary chemical fiber ropes, plus seawater resistance, chemical corrosion resistance, and ultraviolet resistance. The advantages of radiation and high temperature resistance have been widely used in ship mooring and towing, mainly used in ocean transportation, container ships, heavy industry shipbuilding, national defense and military industry, petroleum exploration, port operations and other fields.

Technology Comparison

Chart Legend:

• MBL: Minimum Breaking Load

• Elongation: Elongation

• Firstload: First use

• Return: Return

• Used: Normal use

(Chart axes: X-axis = Elongation[%], Y-axis = MBL[%])

Main performance

• Material: 100% high tenacity nylon 66 (mono-and multi-filament)

• Construction: 6 strands twist

• Treatment: Ocean

• Colour of Rope: White with marker yarn

• Approx. Spec. Density: 1.14 Non floating

• Melting Point: 215°C

• Abrasion Resistance: Excellent

• U.V. Resistance: Excellent

• Temperature resistance: 70°C max

• Dry & wet conditions: Can be stowed wet

• Range of use: As winch lines, mooring lines, anchor lines and heavy duty applications

• Coil length: 220m

• Spliced strength: 10%

• Weight and length tolerance: ±5%

• Other sizes available upon request

Parameter Table

Note: Other sizes can be customized

Note: The description may be different with the product, please contact us for quotation.
