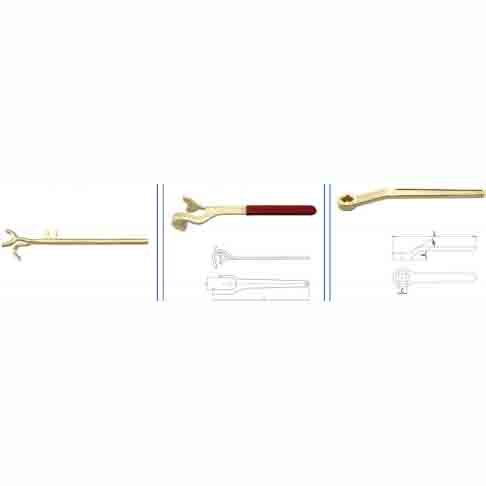

Non-Spark Valve Handle
Features: Used for various types of valves. While in use, place the pin into the valve’s pin slot, while the other end grips the valve body from the opposite side. Material: Beryllium Copper/Aluminum Bronze.
| Number | S(mm) | L(mm) | Weight(g) | Be-Cu | Al-Cu |
|---|---|---|---|---|---|
| 1081-430 | 60 | 355 | 1,230 | ✓ | ✓ |
| 1081-520 | 80 | 520 | 2,270 | ✓ | ✓ |
| 1081-660 | 90 | 660 | 3,200 | ✓ | ✓ |
1081B Non-Spark Valve Handle (Gas Valve)
Features: Used for gas valves, size can be customized. Material: Beryllium Copper/Aluminum Bronze.
| Number | S(mm) | L(mm) | Weight(g) | Be-Cu | Al-Cu |
|---|---|---|---|---|---|
| 1081B-200 | 30 | 200 | 660 | ✓ | ✓ |
| 1081B-250 | 40 | 250 | 900 | ✓ | ✓ |
| 1081B-300 | 50 | 300 | 1,400 | ✓ | ✓ |
| 1081B-350 | 50 | 350 | 1,900 | ✓ | ✓ |
| 1081B-400 | 60 | 400 | 2,300 | ✓ | ✓ |
1082 Non-Spark Valve Handle (Gripping Type, Pin Style)
Features: Used for various types of valves. While in use, place the pin into the valve’s pin slot, while the other end grips the valve body from the opposite side. Material: Beryllium Copper/Aluminum Bronze.
| Number | S(mm) | L(mm) | Weight(g) | Be-Cu | Al-Cu |
|---|---|---|---|---|---|
| 1082-290 | 60 | 360 | 800 | ✓ | ✓ |
| 1082-430 | 80 | 520 | 1,500 | ✓ | ✓ |
| 1082-500 | 90 | 600 | 2,500 | ✓ | ✓ |
| 1082-600 | 100 | 650 | 3,600 | ✓ | ✓ |
1082A Non-Spark Valve Handle (Gripping Type, Anti-sticking)
Features: Used for various types of valves. While in use, place the pin into the valve’s pin slot, while the other end grips the valve body from the opposite side. Material: Beryllium Copper/Aluminum Bronze.
| Number | S(mm) | L(mm) | Weight(g) | Be-Cu | Al-Cu |
|---|---|---|---|---|---|
| 1082A-250 | 30 | 250 | 500 | ✓ | ✓ |
| 1082A-300 | 40 | 300 | 780 | ✓ | ✓ |
| 1082A-350 | 45 | 400 | 1,150 | ✓ | ✓ |
| 1082A-500 | 50 | 500 | 1,600 | ✓ | ✓ |
| 1082A-650 | 65 | 650 | 2,600 | ✓ | ✓ |
1083 Non-Spark Valve Handle (Multi-turn)
Features: Used for various types of multi-turn valves. Material: Beryllium Copper/Aluminum Bronze.
| Number | Size | Length (mm) | Weight(g) | Be-Cu | Al-Cu |
|---|---|---|---|---|---|
| 1083-20 | DN20 | 114 | 80 | ✓ | ✓ |
| 1083-25 | DN25 | 120 | 105 | ✓ | ✓ |
| 1083-32 | DN32 | 150 | 130 | ✓ | ✓ |
| 1083-40 | DN40 | 200 | 190 | ✓ | ✓ |
| 1083-50 | DN50 | 230 | 280 | ✓ | ✓ |
| 1083-65 | DN65 | 240 | 360 | ✓ | ✓ |
| 1083-80 | DN80 | 280 | 420 | ✓ | ✓ |
| 1083-100 | DN100 | 350 | 600 | ✓ | ✓ |
| 1083-125 | DN125 | 400 | 800 | ✓ | ✓ |
| 1083-150 | DN150 | 450 | 1,000 | ✓ | ✓ |
| 1083-200 | DN200 | 520 | 1,500 | ✓ | ✓ |
1084 Non-Spark Valve Handle (Long Handle)
Features: Used for opening and closing long-handled valves. Material: Beryllium Copper/Aluminum Bronze.
| Number | Size | Length (mm) | Weight(g) | Be-Cu | Al-Cu |
|---|---|---|---|---|---|
| 1084-15 | DN15 | 180 | 200 | ✓ | ✓ |
| 1084-20 | DN20 | 210 | 220 | ✓ | ✓ |
| 1084-25 | DN25 | 240 | 260 | ✓ | ✓ |
| 1084-32 | DN32 | 250 | 300 | ✓ | ✓ |
| 1084-40 | DN40 | 320 | 400 | ✓ | ✓ |
| 1084-50 | DN50 | 340 | 500 | ✓ | ✓ |
| 1084-65 | DN65 | 400 | 720 | ✓ | ✓ |
| 1084-80 | DN80 | 420 | 850 | ✓ | ✓ |
| 1084-100 | DN100 | 500 | 1,150 | ✓ | ✓ |
| 1084-125 | DN125 | 540 | 1,450 | ✓ | ✓ |
| 1084-150 | DN150 | 640 | 1,800 | ✓ | ✓ |
| 1084-200 | DN200 | 750 | 2,600 | ✓ | ✓ |
1084A Non-Spark Valve Handle (Split Body)
Features: Used for opening and closing split-body valves. Material: Beryllium Copper/Aluminum Bronze.
| Number | Size (inch) | Weight(g) |
|---|---|---|
| 1084A-05 | DN5 (1/4″) | 28 |
| 1084A-10 | DN10 (3/8″) | 32 |
| 1084A-15 | DN15 (1/2″) | 32 |
| 1084A-20 | DN20 (3/4″) | 32 |
| 1084A-25 | DN25 (1″) | 32 |
| 1084A-32 | DN32 (1-1/4″) | 38 |
| 1084A-40 | DN40 (1-1/2″) | 38 |
| 1084A-50 | DN50 (2″) | 48 |
1085 Non-Spark Double-End C-Type Wrench
Features: Used for valves. Sizes are different on both ends. Material: Beryllium Copper/Aluminum Bronze.
| Number | Size (mm) | Length (mm) | Weight(g) | Be-Cu | Al-Cu |
|---|---|---|---|---|---|
| 1085-234 | 234 | 240 | 800 | ✓ | ✓ |
| 1085-280 | 280 | 280 | 1,250 | ✓ | ✓ |
| 1085-335 | 335 | 440 | 1,500 | ✓ | ✓ |
| 1085-400 | 400 | 530 | 1,800 | ✓ | ✓ |
1086 Non-Spark Single-End C-Type Wrench
Features: Used for valves. Material: Beryllium Copper/Aluminum Bronze.
| Number | Size (mm) | Length (mm) | Weight(g) | Be-Cu | Al-Cu |
|---|---|---|---|---|---|
| 1086-400 | 400 | 440 | 1,400 | ✓ | ✓ |
| 1086-600 | 600 | 520 | 1,600 | ✓ | ✓ |
1088 Non-Spark Valve Handle (U-Type)
Material: Beryllium Copper/Aluminum Bronze.
| Number | Size (mm) | Length (mm) | Weight(g) | Be-Cu | Al-Cu |
|---|---|---|---|---|---|
| 1088-200 | 200 | 300 | 300 | ✓ | ✓ |
| 1088-250 | 250 | 350 | 380 | ✓ | ✓ |
| 1088-300 | 300 | 400 | 480 | ✓ | ✓ |
| 1088-350 | 350 | 450 | 580 | ✓ | ✓ |
| 1088-400 | 400 | 500 | 700 | ✓ | ✓ |
1089 Non-Spark Double-End Open Wrench (Bent)
Features: Used for opening and closing valves. Material: Beryllium Copper/Aluminum Bronze.
| Number | Size (mm) | Length (mm) | Weight(g) | Be-Cu | Al-Cu |
|---|---|---|---|---|---|
| 1089-200 | 200 | 380 | 460 | ✓ | ✓ |
| 1089-250 | 250 | 450 | 780 | ✓ | ✓ |
| 1089-300 | 300 | 500 | 1,080 | ✓ | ✓ |
| 1089-350 | 350 | 580 | 1,300 | ✓ | ✓ |
| 1089-400 | 400 | 630 | 1,580 | ✓ | ✓ |
1089A Non-Spark Light-Type Open Wrench (Bent)
Features: Used for opening and closing valves. Material: Beryllium Copper/Aluminum Bronze.
| Number | Size (mm) | Length (mm) | Weight(g) |
|---|---|---|---|
| 1089A-200 | 200 | 380 | 450 |
| 1089A-300 | 300 | 500 | 880 |
1090 Non-Spark Open Wrench (Single-End, Bent)
Features: Used for opening and closing valves. Material: Beryllium Copper/Aluminum Bronze.
| Number | Size (mm) | Length (mm) | Weight(g) |
|---|---|---|---|
| 1090-300 | 300 | 350 | 630 |
Note: The description may be different with the product, please contact us for quotation.
