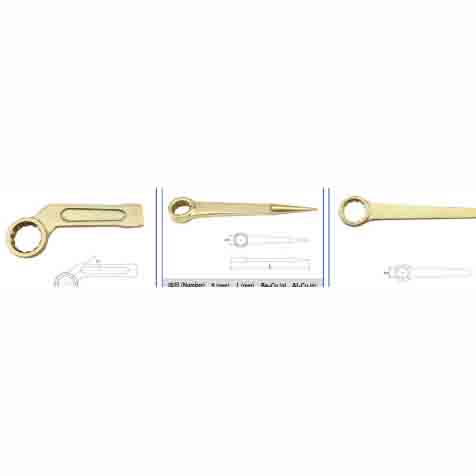

Non-Spark Striking Box Wrench (Bent)

Non-Spark Striking Box Wrench (Bent)

Place of Origin: Made In China
Delivery Time: 15-30 days
Click here to send inquiry via whatsapp

Category:

Non-Spark Striking Box Wrench (Bent)

Features: Used for tightening or loosening large hexagon bolts and nuts. With an offset design, it is suitable for use in confined spaces. Material: Aluminum Bronze/Beryllium Copper.

Number S(mm) L(mm) Weight(g) Be-Cu Al-Cu
1011-24 24 160 270 ✓ ✓
1011-27 27 170 290 ✓ ✓
1011-30 30 190 320 ✓ ✓
1011-32 32 190 300 ✓ ✓
1011-36 36 210 340 ✓ ✓
1011-41 41 225 520 ✓ ✓
1011-46 46 240 660 ✓ ✓
1011-50 50 250 690 ✓ ✓
1011-55 55 270 990 ✓ ✓
1011-60 60 285 1,100 ✓ ✓
1011-65 65 300 1,350 ✓ ✓
1012 Non-Spark Striking Box Wrench (Bent, 6 Points)

Features: Used for tightening or loosening large hexagon bolts and nuts. Material: Aluminum Bronze/Beryllium Copper.

Number S(mm) L(mm) Weight(g)
1012-24 24 160 285
1012-27 27 170 290
1012-30 30 190 320
1012-32 32 190 300
1012-36 36 210 340
1012-41 41 225 520
1012-46 46 240 660
1012-50 50 250 690
1012-55 55 270 990
1012-60 60 285 1,100
1012-65 65 300 1,350
1012-70 70 320 1,500
1013 Non-Spark Striking Open-End Wrench (Straight)

Features: Used for tightening or loosening large hexagon bolts and nuts. This tool is typically used on pipelines that are not easily accessible. Material: Aluminum Bronze/Beryllium Copper.

Number S(mm) L(mm) Weight(g) Be-Cu Al-Cu
1013-17 17 160 210 ✓ ✓
1013-19 19 170 240 ✓ ✓
1013-22 22 170 260 ✓ ✓
1013-24 24 180 340 ✓ ✓
1013-27 27 180 390 ✓ ✓
1013-30 30 190 400 ✓ ✓
1013-32 32 190 420 ✓ ✓
1013-36 36 190 480 ✓ ✓
1013-38 38 190 520 ✓ ✓
1013-41 41 220 540 ✓ ✓
1013-46 46 225 640 ✓ ✓
1013-50 50 230 640 ✓ ✓
1013-55 55 240 680 ✓ ✓
1013-60 60 250 1,050 ✓ ✓
1013-65 65 270 1,400 ✓ ✓
1013-70 70 270 1,450 ✓ ✓
1013-75 75 280 1,850 ✓ ✓
1014 Non-Spark High-Strength Striking Open-End Wrench

Features: Used for tightening or loosening large hexagon bolts and nuts. This tool is typically used on pipelines that are not easily accessible. 1014 series has higher hardness and is more durable than 1013 series. Material: Beryllium Copper/Aluminum Bronze.

Number S(mm) L(mm) Weight(g) Be-Cu Al-Cu
1014-17 17 160 250 ✓ ✓
1014-19 19 180 260 ✓ ✓
1014-22 22 180 310 ✓ ✓
1014-24 24 180 320 ✓ ✓
1014-27 27 180 360 ✓ ✓
1014-30 30 190 460 ✓ ✓
1014-32 32 190 500 ✓ ✓
1014-36 36 210 800 ✓ ✓
1014-41 41 210 860 ✓ ✓
1014-46 46 240 860 ✓ ✓
1014-50 50 240 870 ✓ ✓
1014-55 55 270 1,150 ✓ ✓
1014-60 60 270 1,500 ✓ ✓
1014-65 65 270 1,520 ✓ ✓
1014-70 70 280 1,690 ✓ ✓
1015 Non-Spark Striking Straight Box Wrench

Features: Used for tightening or loosening large hexagon bolts and nuts. Material: Aluminum Bronze/Beryllium Copper.

Number S(mm) L(mm) Weight(g) Be-Cu Al-Cu
1015-17 17 145 200 ✓ ✓
1015-19 19 145 210 ✓ ✓
1015-22 22 160 240 ✓ ✓
1015-24 24 165 260 ✓ ✓
1015-27 27 170 280 ✓ ✓
1015-30 30 180 320 ✓ ✓
1015-32 32 195 360 ✓ ✓
1015-36 36 205 400 ✓ ✓
1015-41 41 225 510 ✓ ✓
1015-46 46 240 610 ✓ ✓
1015-50 50 250 680 ✓ ✓
1015-55 55 270 780 ✓ ✓
1015-60 60 285 1,050 ✓ ✓
1015-65 65 300 1,250 ✓ ✓
1015-70 70 320 1,480 ✓ ✓
1015-75 75 335 1,750 ✓ ✓
1016 Non-Spark Striking Straight Box Wrench (Offset)

Features: Used for tightening or loosening large hexagon bolts and nuts. Material: Aluminum Bronze/Beryllium Copper.

Number S(mm) L(mm) Weight(g) Be-Cu Al-Cu
1016-8 8 110 60 ✓ ✓
1016-10 10 120 80 ✓ ✓
1016-12 12 130 100 ✓ ✓
1016-14 14 140 130 ✓ ✓
1016-15 15 130 150 ✓ ✓
1016-16 16 150 160 ✓ ✓
1016-17 17 160 190 ✓ ✓
1016-19 19 170 220 ✓ ✓
1016-22 22 170 240 ✓ ✓
1016-24 24 180 280 ✓ ✓
1016-27 27 190 300 ✓ ✓
1016-30 30 200 320 ✓ ✓
1016-32 32 210 380 ✓ ✓
1016-36 36 220 410 ✓ ✓
1016-41 41 240 470 ✓ ✓
1016-46 46 260 540 ✓ ✓
1016-50 50 270 570 ✓ ✓
1016-55 55 290 650 ✓ ✓
1016-60 60 310 780 ✓ ✓
1016-65 65 320 910 ✓ ✓
1016-70 70 350 1,000 ✓ ✓
1016-75 75 370 1,080 ✓ ✓
1017 Non-Spark Offset Single End Wrench (15°)

Features: Used for tightening or loosening large hexagon bolts and nuts. With 15° offset, the handle can be used in a wider range of applications. Material: Aluminum Bronze/Beryllium Copper.

Number S(mm) L(mm) Weight(g) Be-Cu Al-Cu
1017-17 17 140 165 ✓ ✓
1017-19 19 140 180 ✓ ✓
1017-22 22 150 205 ✓ ✓
1017-24 24 160 240 ✓ ✓
1017-27 27 180 280 ✓ ✓
1017-30 30 180 350 ✓ ✓
1017-32 32 180 380 ✓ ✓
1017-36 36 200 450 ✓ ✓
1017-41 41 220 520 ✓ ✓
1017-46 46 240 620 ✓ ✓
1017-50 50 250 720 ✓ ✓
1017-55 55 270 920 ✓ ✓
1018 Non-Spark Offset Single End Wrench (45°)

Features: Used for tightening or loosening large hexagon bolts and nuts. With 45° offset, the handle can be used in a wider range of applications. Material: Aluminum Bronze/Beryllium Copper.

Number S(mm) L(mm) Weight(g) Be-Cu Al-Cu
1018-24 24 180 310 ✓ ✓
1018-27 27 190 340 ✓ ✓
1018-30 30 200 360 ✓ ✓
1018-32 32 210 400 ✓ ✓
1018-36 36 230 450 ✓ ✓
1018-41 41 240 520 ✓ ✓
1018-46 46 260 610 ✓ ✓
1018-50 50 270 680 ✓ ✓
1018-55 55 290 790 ✓ ✓
1018-60 60 310 990 ✓ ✓
1018-65 65 340 1,150 ✓ ✓
1018-70 70 360 1,500 ✓ ✓
1018-75 75 370 1,600 ✓ ✓
1019 Non-Spark Ring Wrench (Offset)

Features: Used for tightening and loosening bolts and nuts. It can be used in conjunction with a straight handle. It is applicable in severe conditions and corrosion-prone environments. Material: Aluminum Bronze/Beryllium Copper.

Number S(mm) L(mm) Weight(g) Be-Cu Al-Cu
1019-24 24 180 310 ✓ ✓
1019-27 27 190 340 ✓ ✓
1019-30 30 200 360 ✓ ✓
1019-32 32 210 400 ✓ ✓
1019-36 36 230 450 ✓ ✓
1019-41 41 240 520 ✓ ✓
1019-46 46 260 610 ✓ ✓
1019-50 50 270 680 ✓ ✓
1019-55 55 290 790 ✓ ✓
1019-60 60 310 990 ✓ ✓
1019-65 65 340 1,150 ✓ ✓
1019-70 70 360 1,500 ✓ ✓
1019-75 75 370 1,600 ✓ ✓
1019-80 80 380 1,700 ✓ ✓
1020 Non-Spark Striking Wrench (For Extension Rod)

Note: This is a 1019 series extension rod (Sold separately).

1021 Non-Spark Offset Single End Wrench (Bent, 6 Points)

Features: Used for tightening or loosening large hexagon bolts and nuts. With an offset design, it is suitable for use in confined spaces. Material: Aluminum Bronze/Beryllium Copper.

Number S(mm) L(mm) Weight(g)
1021-19 19 140 180
1021-22 22 150 205
1021-24 24 160 240
1021-27 27 180 280
1021-30 30 180 350
1021-32 32 180 380
1021-36 36 200 450
1021-41 41 220 520
1021-46 46 240 620
1021-50 50 250 720
1021-55 55 270 920
1022 Non-Spark Offset Single End Wrench (Straight, 6 Points)

Features: Used for tightening or loosening large hexagon bolts and nuts. Material: Aluminum Bronze/Beryllium Copper.

Number S(mm) L(mm) Weight(g)
1022-17 17 140 165
1022-19 19 140 180
1022-22 22 150 205
1022-24 24 160 240
1022-27 27 180 280
1022-30 30 180 350
1022-32 32 180 380
1022-36 36 200 450
1022-41 41 220 520
1022-46 46 240 620
1022-50 50 250 720
1022-55 55 270 920

Note: The description may be different with the product, please contact us for quotation.
