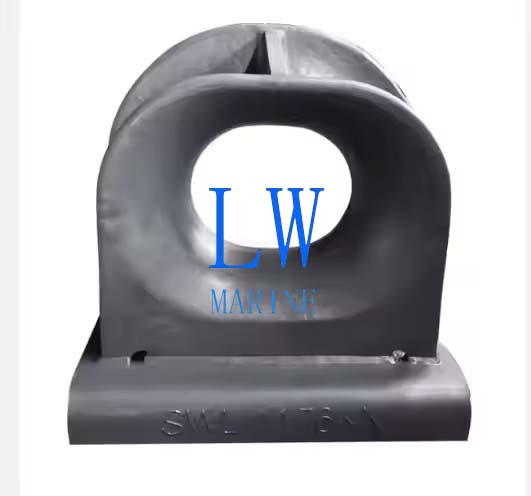

China JIS F2007-1976 Mooring Chock
Our JIS F2007-1976 Mooring Chock stands as a pinnacle of precision rope guidance, significantly minimizing wear and tear on your mooring lines. Specifically designed for bulwark mounting, this high-quality chock adheres to Japanese standards and is available in a versatile size range from 150mm to 500mm, catering to vessels across all classes and sizes.
Key Advantages
✔ Superior Rope Protection Mechanisms
- Smooth Inner Surfaces: Reduce friction damage to ropes, ensuring smoother operations.
- Secure Positioning: Prevents hazardous line slippage, enhancing safety on deck.
- Extended Rope Service Life: By up to 40%, thanks to reduced wear and tear.
✔ Heavy-Duty Construction for Harsh Marine Environments
- High-Grade Marine Cast Steel: Offers maximum durability and strength.
- Corrosion-Resistant Coatings: Protect against the harsh marine elements, extending lifespan.
- Precision-Cast Components: Adhere strictly to exact JIS specifications for flawless performance.
✔ Global Compliance & Approval
- Certified to JIS F2007-1976 Standard: Ensures adherence to Japanese quality benchmarks.
- Approved by Leading Classification Societies: Including CCS, ABS, BV, LR, NK, RINA, ensuring worldwide acceptance.
- IACS Recognized Design: Recognized by the International Association of Classification Societies for its reliability.
Technical Specifications
| Feature | Specification |
|---|---|
| Standard | JIS F2007-1976 |
| Type | Bulwark Mounted |
| Material | Marine Cast Steel |
| Size Range | 150mm – 500mm |
| Certifications | All Major Classification Societies |
Parameters:
| Nominal Size | L | L1 | L2 | H | H1 | H2 | B | C | R | R1 | R2 | R3 | T | Number Of ribs | Leg Of weld | Calculated mass(kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 150 | 150 | 300 | 270 | 110 | 260 | 202 | 129 | 40 | 55 | 130 | 115 | 65 | 12 | 4 | 5 | 15.1 |
| 200 | 200 | 368 | 334 | 150 | 318 | 250 | 143 | 42 | 75 | 159 | 142 | 72 | 12 | 4 | 5 | 20.5 |
| 250 | 250 | 430 | 394 | 200 | 380 | 308 | 155 | 44 | 100 | 190 | 172 | 78 | 12 | 4 | 5 | 26.9 |
| 300 | 300 | 500 | 460 | 250 | 450 | 372 | 169 | 52 | 125 | 225 | 205 | 85 | 15 | 4 | 6 | 42.7 |
| 350 | 350 | 560 | 518 | 250 | 460 | 378 | 179 | 55 | 125 | 230 | 209 | 90 | 15 | 6 | 6 | 50.8 |
| 400 | 400 | 632 | 586 | 250 | 482 | 394 | 195 | 60 | 125 | 241 | 218 | 98 | 18 | 6 | 7 | 76.3 |
| 450 | 450 | 700 | 650 | 250 | 500 | 406 | 209 | 62 | 125 | 250 | 225 | 105 | 20 | 6 | 8 | 102 |
| 500 | 500 | 760 | 708 | 250 | 510 | 412 | 219 | 65 | 125 | 255 | 229 | 110 | 20 | 6 | 8 | 115 |
Frequently Asked Questions (FAQs)
Q1: What makes the JIS F2007-1976 Mooring Chock ideal for marine applications?
A1: The JIS F2007-1976 Mooring Chock is specifically engineered for marine environments, offering superior rope protection, heavy-duty construction, and global compliance, making it ideal for ensuring safety and durability on deck.
Q2: How does the chock reduce wear and tear on mooring lines?
A2: The chock features smooth inner surfaces that minimize friction damage to ropes, along with secure positioning to prevent line slippage, thereby extending the service life of mooring lines by up to 40%.
Q3: Is the JIS F2007-1976 Mooring Chock compatible with all vessel sizes?
A3: Yes, the chock is available in a size range from 150mm to 500mm, catering to vessels of all classes and sizes, ensuring versatility and adaptability.
Q4: What certifications does the JIS F2007-1976 Mooring Chock hold?
A4: The chock is certified to the JIS F2007-1976 Japanese standard and approved by leading classification societies such as CCS, ABS, BV, LR, NK, and RINA, ensuring worldwide acceptance and reliability.
Q5: Can the chock withstand harsh marine conditions?
A5: Absolutely. The chock is constructed from high-grade marine cast steel with corrosion-resistant coatings, ensuring it can withstand the toughest marine environments and extend its service life.
