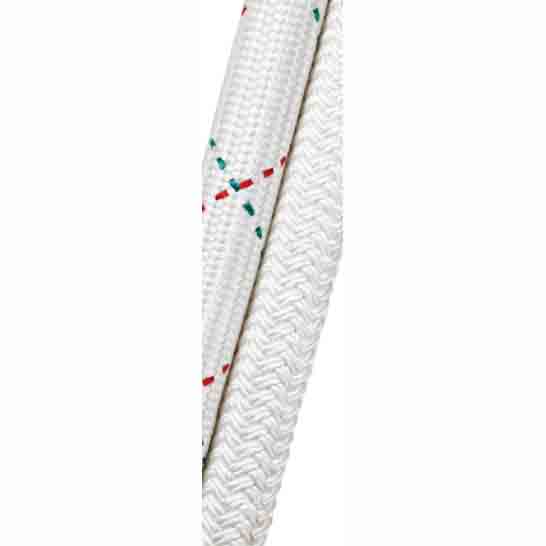

Mixed Polyester and Polypropylene Double Braided Rope
| Size (mm) | Circumference (inch) | Weight (kg/m) | Weight (kg/220m) | ISO MBF (kN) | ISO MBF (Ton) | MEG4 LDBF (kN) | MEG4 LDBF (Ton) |
|---|---|---|---|---|---|---|---|
| 40 | 5 | 1090 | 239.8 | 315 | 32.1 | 283 | 28.9 |
| 44 | 5 1/2 | 1290 | 283.8 | 378 | 38.6 | 340 | 34.7 |
| 48 | 6 | 1580 | 347.6 | 434 | 44.3 | 390 | 39.8 |
| 52 | 6 1/2 | 1920 | 422.4 | 501 | 51.1 | 451 | 46.0 |
| 56 | 7 | 2250 | 495.0 | 581 | 59.3 | 523 | 53.3 |
| 60 | 7 1/2 | 2700 | 594.0 | 659 | 67.2 | 593 | 60.5 |
| 64 | 8 | 3100 | 682.0 | 758 | 77.4 | 682 | 69.6 |
| 68 | 8 1/2 | 3550 | 781.0 | 866 | 88.3 | 779 | 79.5 |
| 72 | 9 | 4100 | 902.0 | 932 | 95.1 | 839 | 85.6 |
| 76 | 9 1/2 | 4680 | 1029.6 | 1014 | 103.5 | 913 | 93.1 |
| 80 | 10 | 5170 | 1137.4 | 1107 | 113.0 | 996 | 101.6 |
| 84 | 10 1/2 | 5630 | 1238.6 | 1211 | 123.6 | 1090 | 111.2 |
| 88 | 11 | 6200 | 1364.0 | 1283 | 130.9 | 1155 | 117.8 |
| 92 | 11 1/2 | 6750 | 1485.0 | 1380 | 140.8 | 1242 | 126.7 |
| 96 | 12 | 7600 | 1672.0 | 1523 | 155.4 | 1370 | 139.8 |
| 100 | 12 1/2 | 8250 | 1815.0 | 1683 | 171.7 | 1514 | 154.5 |
| 104 | 13 | 9000 | 1980.0 | 1800 | 183.7 | 1620 | 165.2 |
| 112 | 14 | 10180 | 2239.6 | 1950 | 198.9 | 1755 | 179.0 |
| 116 | 14 1/2 | 10900 | 2398.0 | 2100 | 214.3 | 1890 | 192.8 |
| 120 | 15 | 11600 | 2552.0 | 2230 | 227.5 | 2007 | 204.8 |
Note: The description may be different with the product, please contact us for quotation.
