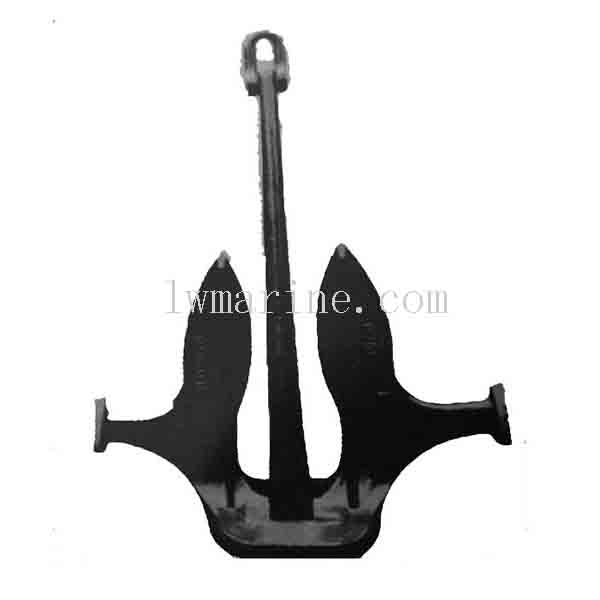

Matrosov HHP Anchor for Marine & Offshore Applications
Engineered for superior seabed holding and unmatched reliability, the Matrosov High Holding Power (HHP) Anchor is designed to meet the demanding requirements of modern marine and offshore operations. Manufactured from high-grade cast steel, each anchor undergoes rigorous non-destructive testing—including Ultrasonic (UT) and Magnetic Particle (MT) inspections—to ensure exceptional quality, structural integrity, and long-term performance.
Ideal for a wide range of vessels and floating structures, the Matrosov HHP Anchor offers excellent stability and penetration across various seabed conditions. Available in weights from 25 kg to 1500 kg, it delivers an optimal balance of strength, durability, and high holding power—making it a trusted choice for shipowners, naval architects, and marine contractors worldwide.
Matrosov HHP Anchor – Key Specifications
-
Material: High-Grade Cast Steel
-
Weight Range: 25 kg – 1500 kg
-
Type: High Holding Power (HHP) Anchor
-
Quality Assurance: UT & MT Testing
-
Applications: Marine, Offshore, Commercial Vessels, Port Operations
Matrosov Anchor – Dimension Chart
| Weight (kg) | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | Ø (mm) |
|---|---|---|---|---|---|---|
| 25 | 130 | 570 | 690 | 385 | 214 | 28-30 |
| 35 | 148 | 620 | 760 | 420 | 230 | 30-32 |
| 50 | 170 | 680 | 840 | 480 | 250 | 30-32 |
| 75 | 190 | 770 | 950 | 540 | 270 | 30-32 |
| 100 | 210 | 830 | 1060 | 590 | 290 | 30-32 |
| 125 | 226 | 870 | 1130 | 630 | 310 | 30-32 |
| 150 | 242 | 910 | 1190 | 670 | 330 | 30-32 |
| 200 | 270 | 980 | 1300 | 740 | 370 | 30-32 |
| 250 | 294 | 1040 | 1380 | 800 | 400 | 33-37 |
| 300 | 312 | 1090 | 1480 | 850 | 430 | 33-37 |
| 400 | 342 | 1190 | 1630 | 930 | 480 | 33-37 |
| 500 | 366 | 1280 | 1750 | 1000 | 520 | 33-37 |
| 650 | 400 | 1385 | 1910 | 1090 | 565 | 33-37 |
| 750 | 418 | 1450 | 2000 | 1140 | 590 | 33-37 |
| 1000 | 452 | 1570 | 2170 | 1240 | 630 | 33-37 |
| 1250 | 488 | 1660 | 2280 | 1300 | 660 | 33-37 |
| 1500 | 515 | 1715 | 2370 | 1350 | 675 | 33-37 |
The description/sizes may be different with goods, please check with us when order.
