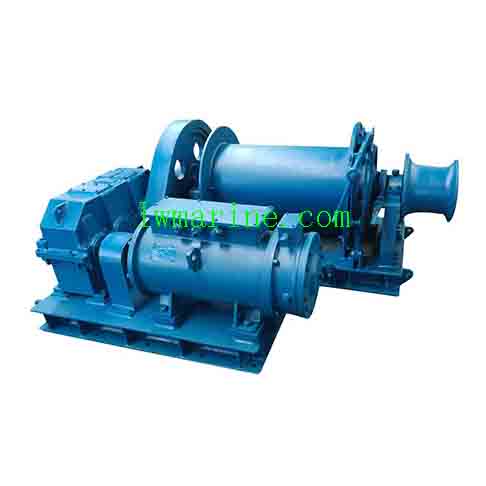

Marine Electric Winch for Ship Mooring Operations
Our Marine Electric Winch is engineered with a robust and rugged design, making it an ideal choice for heavy-duty marine applications. It features high-performance split bronze bearings that ensure durability and longevity, even under the most demanding conditions. The winch is equipped with amply dimensioned brakes that provide reliable stopping power, ensuring safety during operations.
The brake and clutch operating mechanisms are designed for both easy and safe manual operation. For added convenience and flexibility, these mechanisms can also be remotely controlled using hydraulic cylinders, allowing operators to manage the winch from a distance. The brakes are easily adjustable, enabling precise control over the stopping force. All external forces are transferred to the deck construction via foundation bolts, eliminating the need for special welded steel structures. This design not only enhances flexibility to accommodate variations in mooring winch requirements but also simplifies transportation, reducing costs.
For winches with a pulling power of 16 tonnes and above, manual clutch operation is facilitated by spindles, ensuring smooth and efficient engagement. The winch design provides easy access to all lubrication and inspection points, facilitating regular maintenance and prolonging the lifespan of the equipment. The gear options include open-type gears with steel protection covers or totally enclosed gears with an oil bath, catering to different operational environments and preferences.
Key Features:
- Rugged Design: Built to withstand harsh marine conditions.
- Heavy-Duty Split Bronze Bearings: Ensure durability and longevity.
- Ample Brakes: Provide reliable stopping power for safety.
- Easy Manual and Remote Operation: Brake and clutch mechanisms can be operated manually or remotely via hydraulic cylinders.
- Adjustable Brakes: Precise control over stopping force.
- Foundation Bolt Transfer: Eliminates the need for special welded steel structures, enhancing flexibility and simplifying transportation.
- Easy Access for Maintenance: Lubrication and inspection points are readily accessible.
- Multiple Gear Options: Open-type with steel protection or totally enclosed with oil bath.
Main Technical Specifications:
| Rated Pull (kN) | Rated Speed (m/min) | Drum Capacity (m) | Motor Power (kW) |
|---|---|---|---|
| 10 | ≥12 | Ф10×150 | 5.5 |
| 20 | ≥12 | Ф15×150 | 11 |
| 30 | ≥15 | Ф17×150 | 15 |
| 40 | ≥15 | Ф18×150 | 22 |
| 50 | ≥15 | Ф20.5×150 | 30 |
| 75 | ≥15 | Ф26×200 | 45 |
| 80 | ≥15 | Ф26×200 | 45 |
| 100 | ≥15 | Ф30×200 | 45 |
| 125 | ≥15 | Ф30×200 | 75 |
| 160 | ≥15 | Ф32×250 | 75 |
| 200 | ≥9.6 | Ф41×250 | 75 |
| 250 | ≥9.6 | Ф44.5×250 | 90 |
| 315 | ≥7.8 | Ф52×250 | 90 |
| 400 | ≥7.8 | Ф56×250 | 110 |
| 450 | ≥7.8 | Ф56×250 | 110 |
| 500 | ≥7.8 | Ф58×250 | 110 |
| 560 | ≥6 | Ф64×250 | 132 |
| 600 | ≥6 | Ф64×250 | 132 |
| 650 | ≥6 | Ф70×250 | 132 |
| 1000 | ≥4 | Ф85×250 | 132 |
| 1200 | ≥4 | Ф95×250 | 160 |
| 1500 | ≥4 | Ф95×250 | 200 |
| 1800 | ≥4 | Ф95×250 | 250 |
| 2000 | ≥4 | Ф100×250 | 270 |
FAQs:
Q1: What are the key advantages of using a Marine Electric Winch for ship mooring?
A1: The Marine Electric Winch offers several advantages, including a rugged design for durability, heavy-duty split bronze bearings for longevity, ample brakes for safety, and easy manual and remote operation for flexibility. It also simplifies transportation and reduces costs by eliminating the need for special welded steel structures.
Q2: Can the brakes on the Marine Electric Winch be adjusted?
A2: Yes, the brakes on our Marine Electric Winch are easily adjustable, allowing operators to control the stopping force precisely according to their needs.
Q3: What gear options are available for the Marine Electric Winch?
A3: We offer two gear options for the Marine Electric Winch: open-type gears with steel protection covers and totally enclosed gears with an oil bath. These options cater to different operational environments and preferences, ensuring optimal performance and protection.
Q4: How does the manual clutch operation work on the Marine Electric Winch?
A4: For winches with a pulling power of 16 tonnes and above, manual clutch operation is facilitated by spindles. This design ensures smooth and efficient engagement, allowing operators to control the winch manually when needed.
Q5: What is the maximum rated pull and speed of the Marine Electric Winch?
A5: Our Marine Electric Winch is available in a wide range of rated pulls, from 10 kN to 2000 kN, with corresponding rated speeds ranging from ≥4 m/min to ≥15 m/min, depending on the model. This versatility ensures that we can meet the specific needs of various marine applications.
Please Note: The description might be incorrect, please contact us for confirmation.
