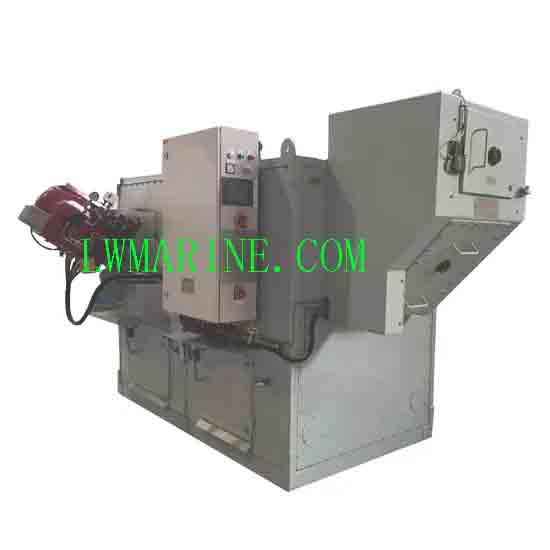

Advanced Marine Waste Incinerator – IMO-Compliant Shipboard Waste Management Solution
Product Overview
Our Marine Waste Incinerator is a fully IMO-compliant thermal treatment system designed for safe and efficient disposal of ship-generated waste oil and solid waste at sea. Engineered to meet IMO Resolution MEPC.244(66) and MARPOL 73/78 Annex VI, Regulation 16, this incinerator eliminates the need for costly port waste handling while ensuring environmental compliance. Its robust construction and intelligent automation make it the ideal solution for modern vessels seeking sustainable waste management.
Key Features & Benefits
-
Dual-Waste Processing: Simultaneously incinerates sludge oil (20% water content) and solid waste (IMO Class 02) with a capacity of 22.5 kg/h sludge and 30 kg/charge solids.
-
IMO & MARPOL Certified: Fully compliant with international maritime emissions and operational standards.
-
Automated PLC Control: Features touch-screen HMI, predefined operational modes, and real-time monitoring for effortless operation.
-
Safety-First Design: Automatic door locking (prevents opening above 220°C) and cooling mode activation for operator protection.
-
Energy-Efficient Performance: Low power consumption (7 kW) with high thermal efficiency (180,000 kcal/h | 208 kW).
-
Integrated Components: Includes combustion chamber, sludge tank with heater/circulating pump, flue gas fan, and damper for seamless operation.
-
Compact & Durable: Heavy-duty construction (≈1293 kg) with heat-insulated surfaces (<60°C) for safe engine room installation.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | LW 18 |
| Thermal Capacity | 180,000 kcal/h (208 kW) |
| Sludge Oil Capacity | 22.5 kg/h (20% water content) |
| Solid Waste Capacity | 30 kg/charge (IMO Class 02) |
| Combustion Temperature | 850–1150°C (max 1180°C) |
| Flue Gas Temperature | 250–340°C (max 375°C) |
| Power Consumption | 7 kW |
| Negative Pressure | 5–35 mmWC |
| Weight | ≈1293 kg |
How It Works
-
Waste Loading: Solid waste is loaded via the front door; sludge is preheated and circulated from the integrated tank.
-
Automated Combustion: PLC system selects operational mode (solid/sludge/dual), initiates pre-purge, ignition, and maintains optimal temperatures via flame detection.
-
Pollution Control: Flue gas fan and damper regulate negative pressure (5–35 mmWC) to ensure complete combustion and minimize emissions.
-
Safety Cooling: Post-incineration cooling cycle reduces chamber temperature to <100°C before ash removal is permitted.
The description/sizes may be different with goods, please check with us when order.
