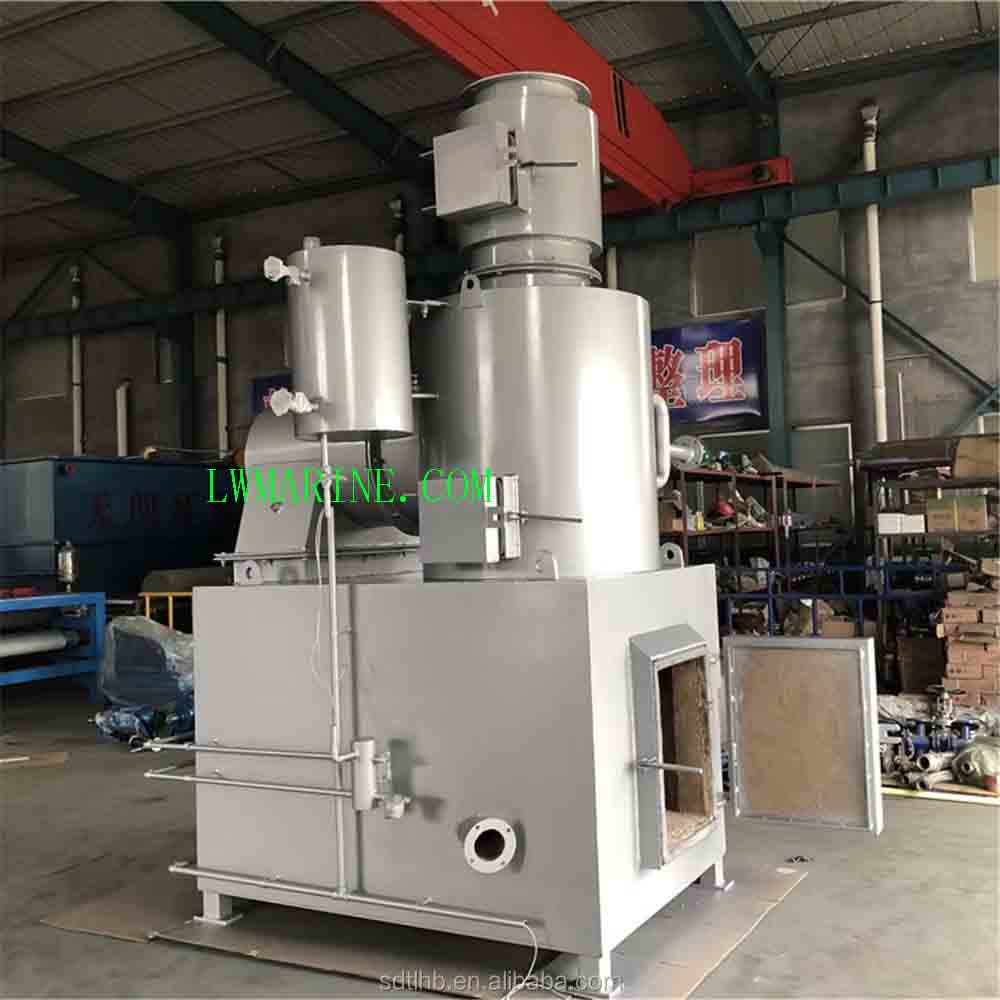

Ship Incinerator
Our Ship Incinerator is a cutting – edge, IMO – compliant thermal treatment device. It is specifically crafted to offer a safe, highly efficient, and environmentally sustainable solution for disposing of shipboard waste and industrial waste. Engineered with a focus on operational stability and fuel economy, this incinerator can effortlessly burn sludge, solid waste, and oily residues. It operates smoothly without triggering frequent alarms or experiencing flame failures. Equipped with intelligent PLC control and multi – mode functionality, it can adapt to varying waste compositions while minimizing emissions and fuel usage.
Key Features & Significant Benefits
- Comprehensive Multi – Waste Processing Capability: This ship incinerator has the remarkable ability to handle a wide range of waste types, including sludge oil, solid waste, and mixed materials, all without the need for restarting the process. This feature streamlines waste management on ships and in industrial settings, saving time and effort.
- Advanced Flame Stability Optimization: With its sophisticated control logic, the incinerator can prevent flame failure even under challenging conditions such as high moisture content in the waste or hot – start scenarios. This ensures continuous and reliable operation, reducing downtime and potential safety risks.
- Strict IMO & Environmental Compliance: Our ship incinerator strictly adheres to international standards for waste disposal both at sea and on land. By choosing our product, you can be confident that you are meeting all regulatory requirements and minimizing your environmental impact.
- Highly Fuel – Efficient Operation: The incinerator is designed to reduce diesel consumption significantly. It achieves this through optimized sludge dosing and heat recovery mechanisms, which not only save on fuel costs but also contribute to a more sustainable operation.
- Fully Automated PLC Control System: The pre – programmed cycles for purging, ignition, combustion, and cooling make the operation of the incinerator extremely user – friendly. The automated control ensures consistent and efficient performance, eliminating the need for constant manual monitoring.
Operational Modes
- Sludge Mode: In this mode, the incinerator heats, ignites, and incinerates oily waste with precise automated dosing control. This ensures that the oily waste is burned thoroughly and efficiently, minimizing the formation of harmful by – products.
- Solid Mode: For non – liquid waste, the solid mode employs staged combustion and ash removal processes. This step – by – step approach ensures complete combustion of the solid waste and easy removal of the resulting ash, keeping the incinerator clean and functioning optimally.
- Mixed Mode: The mixed mode allows the incinerator to simultaneously burn solids and sludge. It dynamically adjusts the heat output according to the composition of the waste, providing a flexible and efficient solution for handling mixed waste streams.
Technical Specifications
- Model: FLT16, a well – designed and reliable model for various waste disposal needs.
- Max Heat Capacity: 465 kW (400,000 kcal/hr), providing sufficient heat to handle a significant amount of waste.
- Throughput: It can process solid waste at a rate of up to 40 kg/hr and sludge oil at a rate of up to 44 L/hr, ensuring efficient waste management.
- Combustion Temperature: The combustion temperature ranges from 850°C to 1100°C, which is ideal for complete and clean combustion of different types of waste.
- Flue Gas Temperature: The flue gas temperature is maintained between 250°C and 350°C, which helps in reducing emissions and ensuring proper heat transfer.
- Fuel Consumption: The fuel consumption ranges from 13 to 38 L/hr (diesel or equivalent), depending on the operating conditions and waste composition, offering fuel – efficient performance.
- Power Supply: It can operate on either 380V/50Hz/3Phase or 440V/60Hz/3Phase power supplies, making it suitable for different electrical systems.
- Dimensions: The incinerator measures 1890 × 1700 × 1960 mm (L×B×H), allowing it to fit into various spaces on ships or in industrial facilities.
- Weight: It weighs 3300 kg, indicating its robust construction and durability.
Automation & Control
The integrated PLC system offers the following features:
- Manual/Automatic Start – Stop Control: It allows for manual or automatic start – stop of pumps, heaters, and fans, providing flexibility in operation and enabling easy maintenance.
- Temperature – Regulated Door Interlock and Cooling Cycles: The door interlock is regulated by temperature, and the cooling cycles are precisely controlled to ensure safe and efficient operation of the incinerator.
- Real – Time Vacuum and Pressure Adjustment: The flue gas damper enables real – time adjustment of vacuum and pressure inside the incinerator, optimizing the combustion process and reducing emissions.
- Ash Removal and Slag Handling Automation: The automation of ash removal and slag handling makes the maintenance of the incinerator easier and more efficient, reducing the need for manual labor and improving overall productivity.
Attention please: The description was copied from different cooperating manufacturers. The description may be different with the goods, please check with us when order.
