Marine Vertical General Pump

Place of Origin: Made In China
Delivery Time: 15-30 days
Click here to send inquiry via whatsapp

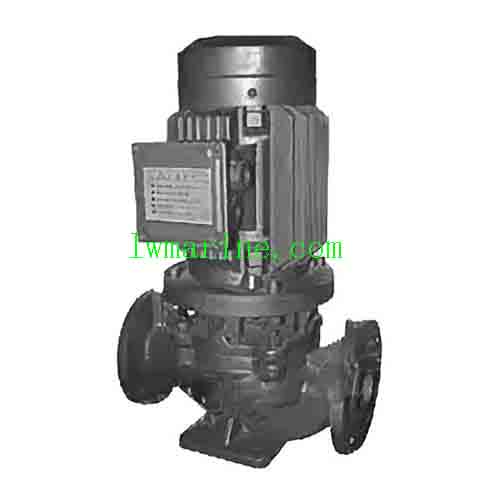

CLH Series Marine Vertical General Pump

The CLH Series Marine Vertical General Pump is engineered to deliver exceptional performance across diverse marine applications. These versatile vertical pumps serve as marine ballast transfer pumps, ship bilge pumping systems, vessel cooling water circulators, marine drainage solutions, and marine fire protection pumps. Additionally, they are ideal for seawater desalination plant pumps, water tank booster systems, petrochemical pipeline transfer, hot and cold water circulation systems, and high-rise building domestic water pressure boosting.

Model Identification: CLH 50-160 (I) A(B, C)

CLH: Marine Vertical Seawater Pump
50: Inlet/Outlet Diameter (50 mm)
160: Nominal Impeller Diameter (160 mm)
I: Flow Classification
A(B, C): Impeller Trim Level (1st, 2nd, or 3rd Cutting)

Performance Parameters (50Hz & 60Hz Operations)

Model	Capacity (m³/h)	Head (m)	Speed (rpm)	Motor Power (kW)	Weight (kg)	NPSHr (m)	Efficiency (%)
40-100	4.4 / 5.3	13.2 / 19	2900 / 3500	0.55 / 0.75	32	2.3	48-54
40-100A	3.9 / 4.7	10.6 / 15.3	2900 / 3500	0.37 / 0.55	32	2.3	46-52
40-125	4.4 / 5.3	21 / 30.2	2900 / 3500	1.1 / 1.5	34	2.3	41-46
40-125A	3.9 / 4.7	17.6 / 25.3	2900 / 3500	0.75 / 1.1	33	2.3	40-45
40-160	4.4 / 5.3	33 / 47.5	2900 / 3500	2.2 / 3	47	2.3	35-40
40-160A	4.1 / 4.9	29 / 41.8	2900 / 3500	1.5 / 2.2	43	2.3	34-39
40-160B	3.8 / 4.6	25.5 / 36.7	2900 / 3500	1.1 / 1.5	38	2.3	34-38
40-200	4.4 / 5.3	51 / 73.4	2900 / 3500	4 / 5.5	74	2.3	26-33
40-200A	4.1 / 4.9	45 / 64.8	2900 / 3500	3 / 4	62	2.3	26-31
40-200B	3.7 / 4.4	38 / 54.7	2900 / 3500	2.2 / 3	52	2.3	24-29
40-250	4.4 / 5.3	82 / 118.1	2900 / 3500	7.5 / 15	105	2.3	24-28
40-250A	4.1 / 4.9	72 / 103.7	2900 / 3500	7.5 / 15	98	2.3	24-28
40-250B	3.8 / 4.6	61.5 / 88.6	2900 / 3500	5.5 / 7.5	77	2.3	23-27
40-100(I)	8.8 / 10.6	13.2 / 19	2900 / 3500	1.1 / 1.5	34	2.3	55-62
40-100(I)A	8 / 9.6	10.6 / 15.3	2900 / 3500	0.75 / 1.1	32	2.3	53-60
40-125(I)	8.8 / 10.6	21.2 / 30.5	2900 / 3500	1.5 / 2.2	38	2.3	49-58
40-125(I)A	8 / 9.6	17 / 24.5	2900 / 3500	1.1 / 1.5	33	2.3	48-57
40-160(I)	8.8 / 10.6	33 / 47.5	2900 / 3500	3 / 4	56	2.3	45-52
40-160(I)A	8.2 / 9.8	29 / 41.8	2900 / 3500	2.2 / 3	47	2.3	44-51
40-160(I)B	7.3 / 8.8	23 / 33.1	2900 / 3500	1.5 / 2.2	43	2.3	43-50
40-200(I)	8.8 / 10.6	51.2 / 73.7	2900 / 3500	5.5 / 7.5	85	2.3	38-46
40-200(I)A	8.3 / 10	45 / 64.8	2900 / 3500	4 / 5.5	75	2.3	37-45
40-200(I)B	7.5 / 9	37 / 53.3	2900 / 3500	3 / 4	63	2.3	36-44
40-250(I)	8.8 / 10.6	81.2 / 116.9	2900 / 3500	11 / 18.5	145	2.3	31-40
40-250(I)A	8.2 / 9.8	71 / 102.2	2900 / 3500	7.5 / 15	95	2.3	31-40
40-250(I)B	7.6 / 9.1	61.4 / 88.4	2900 / 3500	7.5 / 15	94	2.3	30-39
40-250(I)C	7.1 / 8.5	53.2 / 76.6	2900 / 3500	5.5 / 7.5	88	2.3	29-38

Key Features & Benefits

Vertical Space-Saving Design: Ideal for compact marine engine rooms and limited spaces
Multi-Application Versatility: Suitable for ballast, bilge, cooling, firefighting, and drainage duties
Corrosion-Resistant Construction: Manufactured with marine-grade materials for seawater compatibility
Energy-Efficient Operation: Optimized impeller design reduces power consumption
Global Frequency Compatibility: Supports both 50Hz and 60Hz power supplies
Easy Maintenance: Simplified design allows for quick inspection and servicing
High-Pressure Capability: Excellent head performance for various marine systems
