Marine Subsea Buoyancy
General
This subsea buoyancy material products are used for oceanographic, offshore oil and gas, survey, ROV & AUV.
We have various buoyancy material used for subsea up to 7000m. Different application buoyancy products are manufactured from advanced subsea buoyancy material. We can make subsurface mooring buoys, cable floats, pipeline floaters, ROV buoyancy module, special shape buoys, and other syntactic foam products. The surface can be made by polyethylene shell and polyurethane elastomer.
Material Technical Parameters
| Type | Model | Density (g/cm³) | Compression Strength (MPa) | Water Absorption (24 hours) | Submersible Depth (m) |
|---|---|---|---|---|---|
| Chemical Foam | CSBM-03 | 0.08 | / | ≤5% | Surface |
| Chemical Foam | CSBM-020 | 0.20 | 0.5 | ≤5% | 50 |
| Chemical Foam | CSBM-025 | 0.25 | 1 | ≤5% | 100 |
| Chemical Foam | CSBM-030 | 0.30 | 2 | ≤5% | 200 |
| Standard Performance | SBM-36 | 0.36 ± 0.03 | ≥16 | ≤1% | 500 |
| Standard Performance | SBM-38 | 0.38 ± 0.03 | ≥21 | ≤1% | 800 |
| Standard Performance | SBM-43 | 0.43 ± 0.03 | ≥24 | ≤1% | 1 000 |
| Standard Performance | SBM-45 | 0.45 ± 0.02 | ≥28 | ≤1% | 1 500 |
| Standard Performance | SBM-51 | 0.51 ± 0.02 | ≥45 | ≤1% | 3 000 |
| Standard Performance | SBM-54 | 0.54 ± 0.02 | ≥60 | ≤1% | 4 000 |
| Standard Performance | SBM-58 | 0.58 ± 0.02 | ≥75 | ≤1% | 5 000 |
| Standard Performance | SBM-63 | 0.63 ± 0.02 | ≥90 | ≤1% | 6 000 |
| Standard Performance | SBM-70 | 0.70 ± 0.02 | ≥145 | ≤1% | 11 000 |
| High-Performance | SBM-42H | 0.42 ± 0.02 | ≥27 | ≤1% | 1 800 |
| High-Performance | SBM-45H | 0.45 ± 0.02 | ≥35 | ≤1% | 2 000 |
| High-Performance | SBM-48H | 0.48 ± 0.02 | ≥42 | ≤1% | 3 000 |

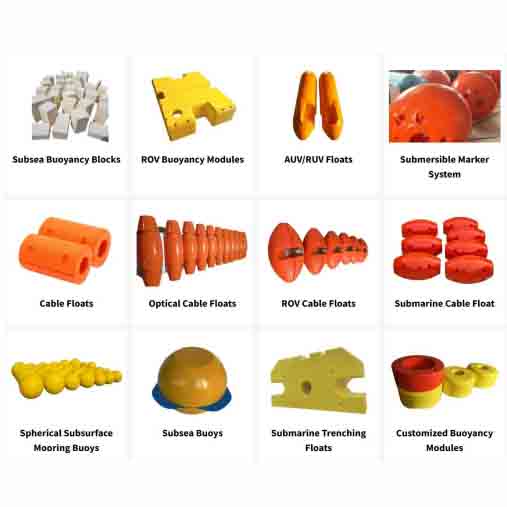

Product Applications
(Image gallery provided in the source image)
-
Subsea Buoyancy Blocks
-
ROV Buoyancy Modules
-
AUV/RUV Floats
-
Submersible Marker System
-
Cable Floats
-
Optical Cable Floats
-
ROV Cable Floats
-
Submarine Cable Float
-
Spherical Subsurface Mooring Buoys
-
Subsea Buoys
-
Submarine Trenching Floats
-
Customized Buoyancy Modules
Manufacturing & Quality Control
(Image gallery provided in the source image)
-
CNC Precision Machining: Molding process for making syntactic foams.
-
Quality Control: Density test in water and precise weighing.
-
Material Testing: Pressure test for water absorption test and measurement in deep water.
From Challenge to Solution: CNC Precision Machining
(Diagram provided in the source image)
-
Professional CNC machining.
-
Complex shapes and high dimensional tolerances.
-
Modified design and high stiffness structure.
Note: The description may be different with the product, please contact us for quotation.
