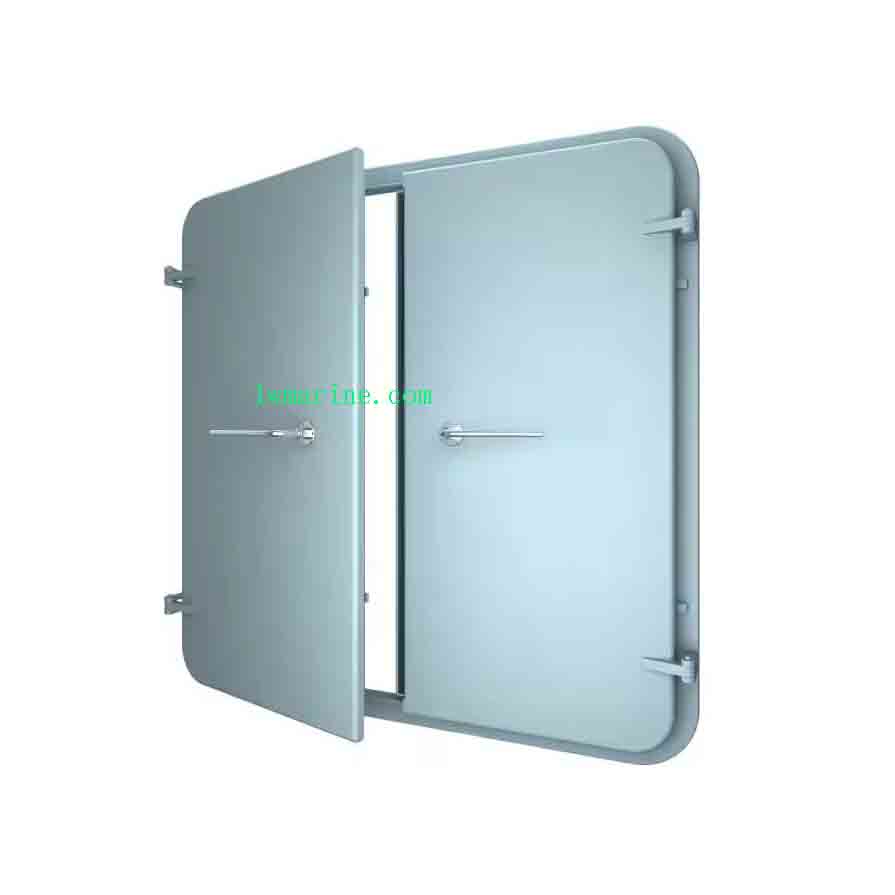

Marine Steel Watertight Door – Superior Water Ingress Protection
Heavy-Duty Watertight Solutions for Ships & Offshore Vessels
Our Marine Steel Watertight Door provides reliable protection against water ingress, designed to withstand 0.025MPa hydraulic pressure while maintaining perfect sealing integrity. These doors are essential safety components for all types of vessels, ensuring compartmentalization in emergency situations.
Key Features & Benefits
✔ Robust Watertight Performance – Certified to withstand 0.025MPa pressure
✔ Dual Operation Systems – Choose between:
-
Single-handle mechanism (quick operation)
-
Handwheel system (precise control)
✔ Marine-Grade Steel Construction – Corrosion-resistant and durable
✔ Multiple Size Configurations – Fits various bulkhead requirements
Technical Specifications
Standard Size Options:
| Nominal Size (L×B×R100) | Wall Cutout (L1×B1×R150) | Exterior Size (L2×B2×R200) | Leaf Thickness (t) |
|---|---|---|---|
| 1000×600 | 1100×700 | 1200×800 | 8mm |
| 1200×600 | 1300×700 | 1400×800 | 8mm |
| 1400×600 | 1500×700 | 1600×800 | 8mm |
| 1400×700 | 1500×800 | 1600×900 | 8mm |
| 1500×600 | 1600×700 | 1700×800 | 8mm |
| 1500×700 | 1600×800 | 1700×900 | 8mm |
| 1600×600 | 1700×700 | 1800×800 | 8mm |
| 1600×700 | 1700×800 | 1800×900 | 8mm |
The description/sizes may be different with goods, please check with us when order.
