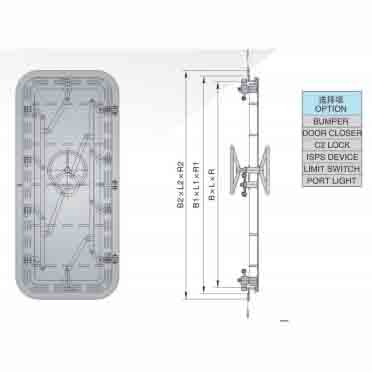

MARINE STEEL PRESSURE RESISTANT WATERTIGHT DOOR
262 HSW 095-00
THE APPLICABLE WATER PRESSURE FOR THE DOOR IS NO MORE THAN 0.15MPa.
OPTION
-
BUMPER
-
DOOR CLOSER
-
C2 LOCK
-
ISPS DEVICE
-
LIMIT SWITCH
-
PORT LIGHT
| 通孔尺寸 SIZE OF DOORWAY BXLXR |
围壁开孔尺寸 SIZE OF B.H.OPENING B1XL1XR1 |
外形尺寸 SIZE OF OUT LINE B2XL2XR2 |
门板厚度 THICKNESS T |
重量 WEIGHT KG |
|---|---|---|---|---|
| 600X1500X100 | 700X1600X150 | 800X1700X200 | 8 | 206 |
| 600X1600X100 | 700X1700X150 | 800X1800X200 | 8 | 212 |
| 700X1500X100 | 800X1600X150 | 900X1700X200 | 8 | 227 |
| 700X1600X100 | 800X1700X150 | 900X1800X200 | 8 | 239 |
| 700X1700X100 | 800X1800X150 | 900X1900X200 | 8 | 250 |
| 800X1500X100 | 900X1600X150 | 1000X1700X200 | 8 | 248 |
| 800X1600X100 | 900X1700X150 | 1000X1800X200 | 8 | 263 |
| 800X1700X100 | 900X1800X150 | 1000X1900X200 | 8 | 289 |
Marking example:
Opening size is 600X1500, door leaf thickness is 8mm, steel pressure resistant watertight door, (right open type),
steel pressure resistant watertight door 600X1500-8-5.1
Note: The description may be different with the product, please contact us for quotation.
