MARINE STEEL PERIPHERAL WALL DOOR
262.YHS-013
SUITABLE FOR SUPERSTRUCTURE OF SHIP, IT HAS GOOD WEATHERTIGHT AND GASTIGHT.
TYPE CLASSIFICATION
| TYPE | DESCRIPTION |
|---|---|
| A | WITH WINDOW |
| B | WITHOUT WINDOW |

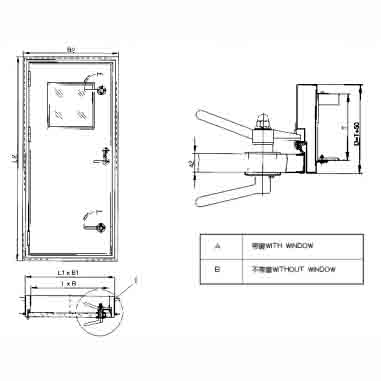

DIMENSION MARKINGS
- L2
- B2
- L1×B1
- L×B
- T
- D=T+50
PRODUCT SPECIFICATION TABLE
| NO. | NOMINAL SIZE (B×L) | FRAME SIZE (B1×L1) | EXTERNAL SIZE (B2×L2) | MATERIAL | LINING THICKNESS (T) | FRAME THICKNESS (D) |
|---|---|---|---|---|---|---|
| 1 | 600×1600 | 700×1700 | 750×1750 | STEEL | UP TO BUYER’S CHOICE | T+50 |
| 2 | 700×1600 | 800×1700 | 850×1750 | ALUMINUM | ||
| 3 | 800×1600 | 900×1700 | 950×1750 | GLASSFIBRE | ||
| 4 | 600×1700 | 700×1800 | 750×1850 | REINFORCED PLASTIC | ||
| 5 | 700×1700 | 800×1800 | 850×1850 | |||
| 6 | 800×1700 | 900×1800 | 950×1850 | |||
| 7 | 600×1800 | 700×1900 | 750×1950 | |||
| 8 | 700×1800 | 800×1900 | 850×1950 | |||
| 9 | 800×1800 | 900×1900 | 950×1950 |
IDENTIFICATION EXAMPLE
STEEL OUTSIDE DOOR WITH WINDOW, CLEAR SIZE OF 1700×800,
D IS 140, RIGHT OUTSIDE OPENING
STEEL OUTSIDE DOOR A1700×800-140R0 262.YHS-013
Note: The description may be different with the product, please contact us for quotation.
