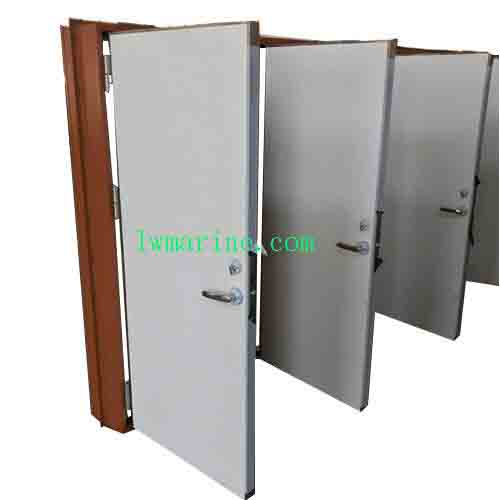

Marine Steel Fire Door – Certified Fire Protection for Vessels
High-Performance Fire Barriers for Shipboard Safety
Our Marine Steel Fire Door is essential safety components designed to contain flames and prevent fire spread on all types of vessels. Manufactured from marine-grade steel with rock wool insulation cores, these doors provide lightweight yet durable fire protection that meets strict maritime safety standards.
Key Features & Benefits
✔ Multiple Fire Ratings Available – A60, A30, A15, A0, B15, B0
✔ Premium Steel Construction – Corrosion-resistant marine-grade steel
✔ Lightweight Rock Wool Core – Excellent flame retardant properties
✔ Custom Configurations – With escape hatches, ventilation, or fireproof windows
✔ Classification Society Approvals – Complies with international marine regulations
Technical Specifications
Standard Models & Dimensions
| Type | Accessories | Clear Size (mm) | Wall Cutout (mm) | Frame Thickness | Leaf Thickness |
|---|---|---|---|---|---|
| A60 | Escape, Ventilation | 1500-2000 (L) x 500-1000 (B) | L+105 x B+105 | 40mm | 50mm |
| A30 | Escape | 1500-2000 x 500-1000 | L+105 x B+105 | 40mm | 50mm |
| A15/A15T | Escape/Firehole | 1500-2000 x 500-1000 | L+105 x B+105 | 40mm | 50mm |
| B0/B0T | – / Escape+Vent | 1500-2000 x 500-1000 | L+85 x B+85 | 40mm | 50mm |
| B15/B15T | – / Escape+Vent | 1500-2000 x 500-1000 | L+85 x B+85 | 40mm |
The description/sizes may be different with goods, please check with us when order.
