Marine Steam Heated Calorifier

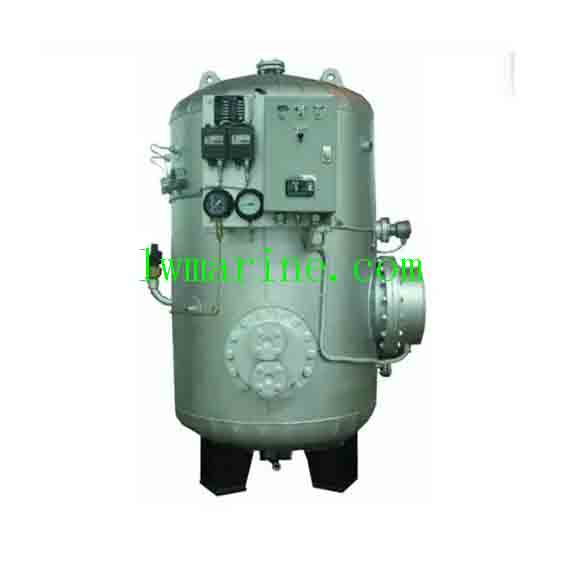

ZRG-0.12 Marine Steam Heated Calorifier: High-Performance Hot Water Solution for Marine Vessels and Platforms

The ZRG-0.12 Marine Steam Heated Calorifier is a top-tier hot water tank designed specifically for marine environments, offering efficient and reliable heating of fresh water for crew use on ships or offshore platforms. This versatile calorifier can be heated using either electricity or steam, providing flexibility in operation and ensuring a consistent supply of hot water under various conditions.

Key Specifications:

• Design Pressure: 0.7 MPa
• Working Pressure: 0.6 MPa
• Sealing Test Pressure: 0.8 MPa
• Strength Test Pressure: 1.0 MPa
• Material of Main Parts: Stainless Steel (SS304) for durability and corrosion resistance
• Various Appendices: Physical configuration tailored to location and scene requirements

Application:

This hot water tank is ideally suited for heating fresh water on marine vessels and platforms, ensuring that crew members have access to hot water for daily use, enhancing comfort and hygiene standards onboard.

Principle Description:

The ZRG-0.12 calorifier can be seamlessly integrated with a fresh water pressure tank on board. Fresh water from the pressure tank is used to replenish the calorifier, which is then heated by either electric or steam heating elements to provide hot water for the entire vessel.

• Temperature Controller: The water temperature in the tank is precisely controlled by two WTZK-50-C pressure-type temperature controllers. If the temperature falls below 50℃, the electric heater automatically activates. Conversely, if the temperature exceeds 65℃, the heater switches off to prevent overheating.
• Temperature Regulating Valve: Adjusts the opening and closing based on the set temperature control range, ensuring optimal water temperature.
• Float Level Switch: Protects the electric heater by automatically cutting off power if the liquid level in the tank drops below the switch, preventing dry heating.
• Pressure Gauge: Displays the real-time pressure inside the tank for easy monitoring.
• Thermometer: Indicates the current water temperature in the tank.
• Safety Valve: Automatically opens when the pressure in the tank exceeds 0.42 MPa, releasing excess pressure to ensure safety.

Components List:

FAQs:

Q1: What makes the ZRG-0.12 Marine Steam Heated Calorifier suitable for marine environments?
A1: The calorifier is constructed with high-quality stainless steel (SS304) for durability and corrosion resistance, making it ideal for the harsh conditions encountered at sea. Additionally, its ability to be heated by either electricity or steam provides flexibility in operation.

Q2: How does the temperature control system in the ZRG-0.12 calorifier work?
A2: The water temperature is controlled by two WTZK-50-C pressure-type temperature controllers. They automatically activate or deactivate the electric heater based on the water temperature, ensuring a consistent supply of hot water within the desired range (50℃-65℃).

Q3: What safety features are included in the ZRG-0.12 calorifier?
A3: The calorifier is equipped with a safety valve that opens when the pressure exceeds 0.42 MPa, releasing excess pressure. Additionally, the float level switch prevents dry heating by cutting off power to the electric heater if the liquid level drops too low.

Q4: Can the ZRG-0.12 calorifier be customized for specific location or scene requirements?
A4: Yes, the physical configuration of the calorifier can be tailored to meet specific location and scene requirements, ensuring optimal performance and integration with existing systems on board.

Q5: What is the purpose of the temperature regulating valve in the ZRG-0.12 calorifier?
A5: The temperature regulating valve adjusts its opening and closing based on the set temperature control range, helping to maintain the desired water temperature and ensuring efficient operation of the calorifier.
