MARINE SINGLE-LEAF ALUMINIUM DOOR(WATERTIGHT)
CB/T454—1997
262.YHS—004

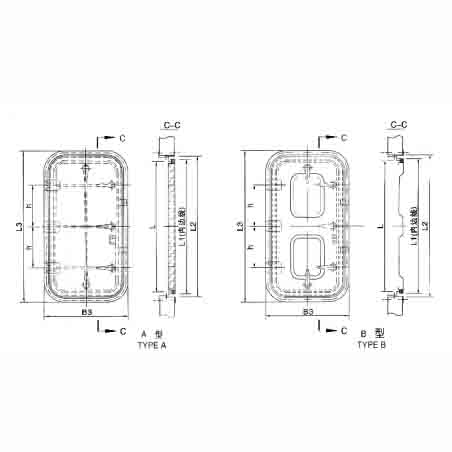

TYPE A: FRAME TYPE WEATHERTIGHT SINGLE-LEAF ALUMINIUM DOOR
TYPE B: MOULD TYPE WEATHERTIGHT SINGLE-LEAF ALUMINIUM DOOR
表格
| TYPE | NAME | SIZE OF DOORWAY
B×L |
OPTION |
|---|---|---|---|
| A | FRAME TYPE WEATHERTIGHT SINGLE-LEAF ALUMINIUM DOOR | 500×1000, 500×1200, 500×1400, 600×1200, 600×1400, 650×1600 | HOOK, BUMPER, PORTLIGHT |
| B | MOULD TYPE WEATHERTIGHT SINGLE-LEAF ALUMINIUM DOOR | 500×1000, 500×1200, 600×1200 | HOOK, BUMPER, PORTLIGHT |
表格
| SIZE OF DOORWAY
B×L×R |
SIZE OF DOOR
B1×L1×R1 |
CUTOUT IN STEEL WALL
B2×L2×R2 |
SIZE OF OUTLINE
B3×L3×R3 |
h | QTY. OF CLIPS | WEIGHT KG |
|---|---|---|---|---|---|---|
| 500×1000×100 | 540×1040×120 | 580×1080×140 | 654×1154×177 | 300 | 4 | 21 |
| 500×1200×100 | 540×1240×120 | 580×1280×140 | 654×1354×177 | 400 | 5 | 25 |
| 500×1400×100 | 540×1440×120 | 580×1480×140 | 654×1554×177 | 500 | 5 | 27 |
| 600×1200×100 | 640×1240×120 | 680×1280×140 | 754×1354×177 | 400 | 5 | 33 |
| 600×1400×100 | 640×1440×120 | 680×1480×140 | 754×1554×177 | 500 | 5 | 36 |
| 650×1600×100 | 690×1640×120 | 730×1680×140 | 804×1754×177 | 600 | 5 | 39.5 36 |
AS INDICATION:
DOORWAY SIZE 600×1400mm FOR A TYPE LEFT OUTSIDE OPENING MARINE WEATHERTIGHT SINGLE-LEAF STEEL DOORS
MARINE WEATHERTIGHT SINGLE-LEAF STEEL DOORS A600×1400-6.1 CB/T454-1997
Note: The description may be different with the product, please contact us for quotation.
