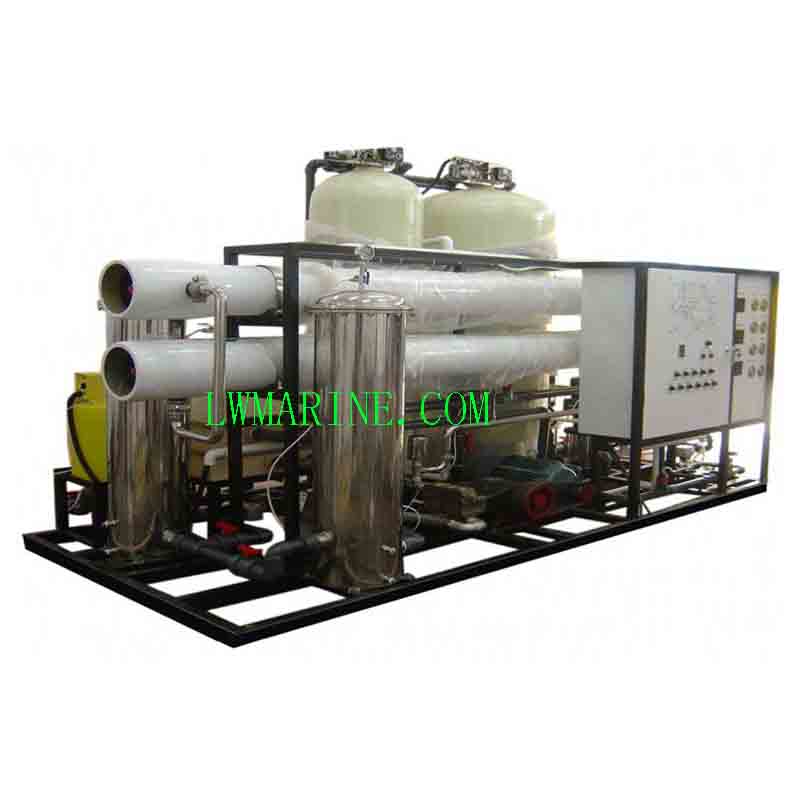

5 m³/Day Marine Reverse Osmosis Seawater Desalination System | Compact & Certified
Product Overview
The ZC-FSHB series marine seawater desalination system utilizes advanced Reverse Osmosis (RO) membrane technology to efficiently transform seawater into clean, safe drinking water that complies with the National Drinking Water Standard (GB5749-2006). Designed specifically for shipboard use, this system delivers high-performance desalination with minimal energy consumption and maintenance requirements.
Key Features & Benefits
-
Advanced RO Technology: Effectively removes salts, bacteria, odors, and impurities, producing fresh water suitable for direct consumption.
-
Compact & Space-Saving Design: Ideal for installation in confined marine environments such as engine rooms, narrow decks, crew areas, and passageways.
-
corrosion-Resistant Construction: Full stainless steel frame ensures long-lasting durability in harsh seawater conditions.
-
Easy Operation & Maintenance: Start producing fresh water immediately—just connect to seawater and power supply. Minimal cleaning required.
-
High Efficiency & Reliability: Achieves a desalination rate of ≥98.5% with low power consumption and stable operation under varying conditions.
-
Multiple Certification Options: Available with IACS certifications including BV, CCS, DNV.GL, ABS, LR, NK, RINA, IRS, and RMRS.
Technical Specifications
-
Model: ZC-FSHB-5
-
Daily Output: 5 m³
-
Raw Water TDS: ≤38,000 PPM
-
Operating Temperature: 5–35°C
-
Product Water TDS: ≤500 PPM
-
Desalination Rate: ≥98.5%
-
Recovery Rate: ≈28%
-
Power Supply: 380V AC / 50Hz / 3φ
-
Power Consumption: 2.75 kW
-
Dimensions (L×W×H): 1080 × 440 × 1600 mm
-
Weight (Dry/Wet): 280 kg / 320 kg
-
Control Cabinet Rating: IP55
-
Motor Protection Class: IP55, Insulation Class F
System Components
-
Pre-Filtration System: Includes feed pump, multi-media filter, and precision filter to remove suspended solids and fine particles.
-
RO Membrane System: Equipped with a high-pressure pump, RO membranes, pressure control valve, and rinse tank for efficient desalination.
The description/sizes may be different with goods, please check with us when order.
