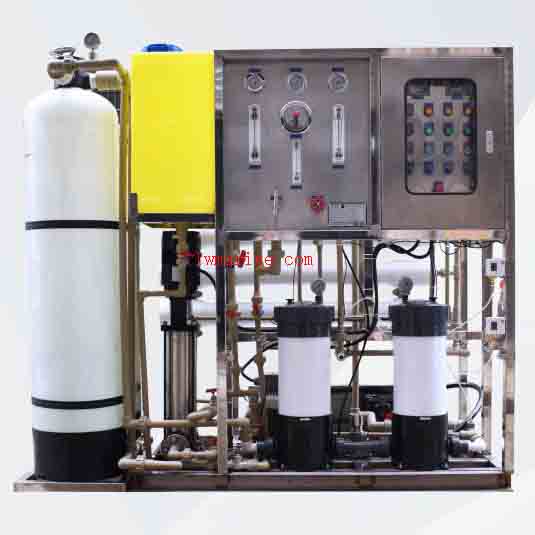

Marine sea water desalting plant
Product parameters Available Treatment
- Fresh water output: 20 tons per day
- System recovery rate: 35%
- System power: 10KW
- Voltage: 380V/50HZ, 440V/60HZ, 480V/60HZ
- Working pressure: 3.5~5.5MPA
- Operating temperature: 5~45℃
- Inlet TDS: less than 40000PPM
- Desalination rate: 99.2%
- Produced water TDS: less than 20PPM
- Inlet PH value: 3~10
- Equipment size: 2000mm1000mm1900mm
- Packing specification (wooden case): 2200mm1200mm2100mm
- Net weight of equipment: 1200KG
- G.packing net weight: 1500KG
System function
- Output water quality: Meets the national drinking water standard .
- Over-pressure protection for the output water from high pressure pump. When the high pressure pump outlet pressure exceeds 6.5mpa, the equipment will stop automatically and show sound and light alarm.
- Under-pressure protection when the inlet pressure of the high-pressure pump is insufficient. When the water inlet pressure of the high-pressure pump is lower than 0.05mpa due to insufficient pre-treatment water supply, it will automatically stop and send an audible and visual alarm.
- Equipped with a manual multi-way valve, the sand filter can be easily and quickly filtered, backwashed and forward washed as required.
- The alarm system has the function of manual confirmation and sound elimination.
- Equipped with reverse osmosis membrane cleaning system, it can carry out physical cleaning, concentrated water replacement, chemical cleaning and filling of protective fluid for reverse osmosis membrane components.
