ROTATING OILTIGHT HATCH COVER
GB/T282-94
263.YHS-003

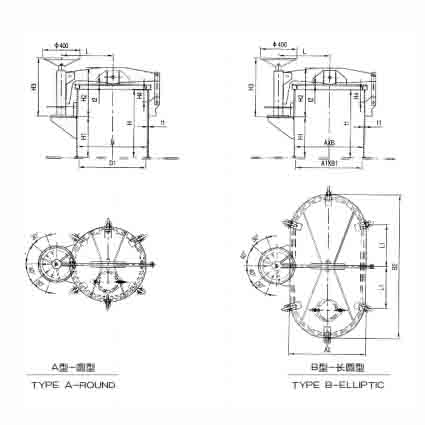

TYPE CLASSIFICATION
- TYPE A-ROUND
- TYPE B-ELLIPTIC
TYPE A ROUND OILTIGHT HATCH COVER TECHNICAL DATA
| TYPE | ACCESS WAY SIZE D (mm) | SIZE OF OPENING D1 (mm) | H (mm) | H1 (mm) | H2 (mm) | H3 (mm) | H4 (mm) | L (mm) | t1 (mm) | t2 (mm) | CLIP QTY | WEIGHT (KG) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 600 | 570 | 600 | 290 | 538 | ~ | 100 | 480 | 10 | 12 | 4 | 295 |
| A | 700 | 670 | 585 | 500 | 325 | – | – | – | – | – | – | 325 |
| A | 800 | 770 | 600 | 290 | 538 | ~ | 100 | 580 | 10 | 12 | 6 | 417 |
| A | 1000 | 970 | 700 | 682 | 12 | 14 | 539 | – | – | – | – | 539 |
| A | 1200 | 1170 | 782 | 14 | 630 | – | – | – | – | – | – | 630 |
TYPE B ELLIPTIC OILTIGHT HATCH COVER TECHNICAL DATA
| TYPE | ACCESS WAY SIZE (mm) | SIZE OF OPENING (mm) | A2 (mm) | B2 (mm) | H (mm) | H1 (mm) | H2 (mm) | H3 (mm) | H4 (mm) | L (mm) | t1 (mm) | t2 (mm) | CLIP QTY | WEIGHT (KG) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| B | 750×1000 | 720×1170 | 835 | 1285 | 585 | 556 | 430 | 12 | 14 | 6 | – | – | – | 543 | |
| B | 750×1500 | 720×1470 | 835 | 1585 | 600 | 290 | 538 | ~ | 100 | 556 | 430 | 12 | 14 | 6 | 593 |
| B | 850×1500 | 820×1470 | 835 | 1585 | 700 | 806 | 490 | 14 | 614 | – | – | – | – | 614 |
MARKING EXAMPLE
AS INDICATION:
CLEAR OPENING SIZE φ600mm FOR A TYPE OIL TANK HATCH COVER
OIL TANK HATCH COVER A 600 GB/T282-94
CLEAR OPENING SIZE φ600mm FOR A TYPE OIL TANK HATCH COVER
OIL TANK HATCH COVER A 600 GB/T282-94
Note: The description may be different with the product, please contact us for quotation.
