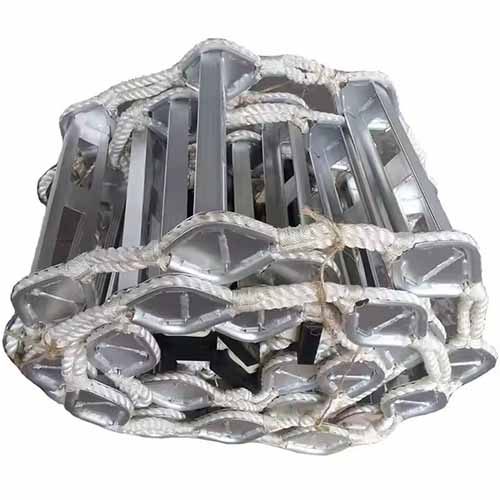

DNV Approved JIS Embarkation Ladder Marine Rope Ladder
The embarkation rope ladder is used for the embarkation and disembarkation of the crews form board to ship. The design of our embarkation rope ladder is totally in accordance with the ISO standard, IMO standard, and kinds of Classification Society’s requiremnt. We can offer both the JIS standard and GB standard embarkation ladder.
Our ladders are approved by classidiction societies. Therefore, ABS, DNV, CCS, NK, LR, GL, BV, RINA are available for our products.
| Step | Hardwood/ Aluminum Alloy(The 4 Lower Steps of Ladder is Made of Rubber) | ||||
| Rope | Abaca Rope / Fiber Rope | ||||
| Specification | |||||
| Product No. | Steps | Space Between Rungs | L | Weight | |
| mm | mm | kg | |||
| YSWEL001 | 10 | 300-350 | 3100 | 31.56 | |
| YSWEL002 | 15 | 4650 | 43.92 | ||
| YSWEL003 | 20 | 6200 | 56.28 | ||
| YSWEL004 | 25 | 7750 | 68.64 | ||
| YSWEL005 | 30 | 9300 | 81 | ||
| YSWEL006 | 35 | 10850 | 93.36 | ||
| YSWEL007 | 40 | 12400 | 105.72 | ||
| YSWEL008 | 45 | 13950 | 118.08 | ||
| YSWEL009 | 50 | 15500 | 130.44 | ||
| YSWEL010 | 55 | 17000 | 142.86 | ||
| YSWEL011 | 60 | 18500 | 155.16 | ||
| Available in various sizes, please specify your requirement to us | |||||
