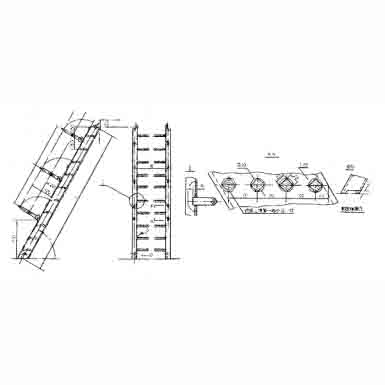

MARINE CARGO HOLD INCLINED LADDER
Used for the vessel with tonnage over 300 tons. It has the feature of reliable construction and anti-skid.
Legend:
-
A – Left movable handrail cargo hold inclined ladder
-
B – Right movable handrail cargo hold inclined ladder
-
C – Left fixed handrail cargo hold inclined ladder
-
D – Right fixed handrail cargo hold inclined ladder
-
E – Left fixed handrail cargo hold inclined ladder
-
F – Right fixed handrail cargo hold inclined ladder
Table
| TYPE | NAME | INCLINATION a (°) | B (mm) | L (mm) | USE |
|---|---|---|---|---|---|
| A | Left movable handrail cargo hold inclined ladder | 60° / 65° | 600 | 2500–6700 | General cargo ship / Bulk carrier |
| B | Right movable handrail cargo hold inclined ladder | 650 | 2500–6700 | ||
| C | Left fixed handrail cargo hold inclined ladder | ||||
| D | Right fixed handrail cargo hold inclined ladder | ||||
| E | Left fixed handrail cargo hold inclined ladder | ||||
| F | Right fixed handrail cargo hold inclined ladder |
Notes:
-
Inclination a = 300 mm, inclination 65° for left movable handrail cargo hold inclined ladder.
-
Cargo hold inclined ladder A65-5200 CB*801-85
Note: The description may be different with the product, please contact us for quotation.
