MARINE QUICK OPEN & CLOSE WEATHERTIGHT ALUMINIUM DOOR
262 HSW 098-00

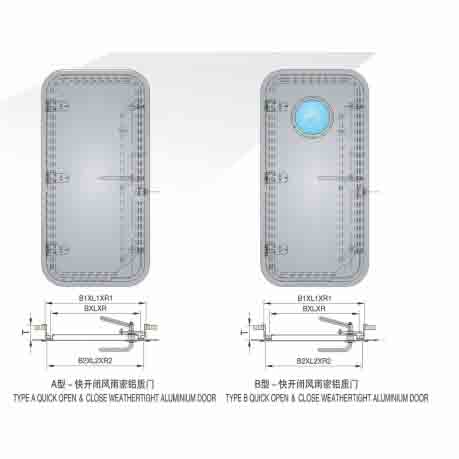

TYPE A QUICK OPEN & CLOSE WEATHERTIGHT ALUMINIUM DOOR
TYPE B QUICK OPEN & CLOSE WEATHERTIGHT ALUMINIUM DOOR
| 类型 TYPE |
通孔尺寸 SIZE OF DOORWAY BXLXR |
围壁开孔尺寸 SIZE OF B.H.OPENING B1XL1XR1 |
门板尺寸 SIZE OF DOOR B2XL2XR2 |
门板厚度 THICKNESS |
重量 WEIGHT KG |
选择项 OPTION |
|---|---|---|---|---|---|---|
| A | 600X1200X100 | 680X1280X140 | 648X1248X124 | 4 | 32 | HOOK |
| A | 650X1400X100 | 730X1480X140 | 698X1448X124 | 4 | 35 | HOOK |
| A | 650X1600X100 | 730X1680X140 | 698X1648X124 | 4 | 38 | HOOK |
| A | 700X1600X100 | 780X1680X140 | 748X1648X124 | 4 | 39 | HOOK |
| B | 600X1200X100 | 680X1280X140 | 648X1248X124 | 4 | 34 | HOOK |
| B | 650X1400X100 | 730X1480X140 | 698X1448X124 | 4 | 37 | BUMPER |
| B | 650X1600X100 | 730X1680X140 | 698X1648X124 | 4 | 40 | HOOK |
| B | 700X1600X100 | 780X1680X140 | 748X1648X124 | 4 | 41 | HOOK |
Marking example:
Opening size is 650X1600mm, Type A quick open & close weathertight aluminium door (left open type),
quick open & close weathertight aluminium door A650X1600-6.1
Note: The description may be different with the product, please contact us for quotation.
