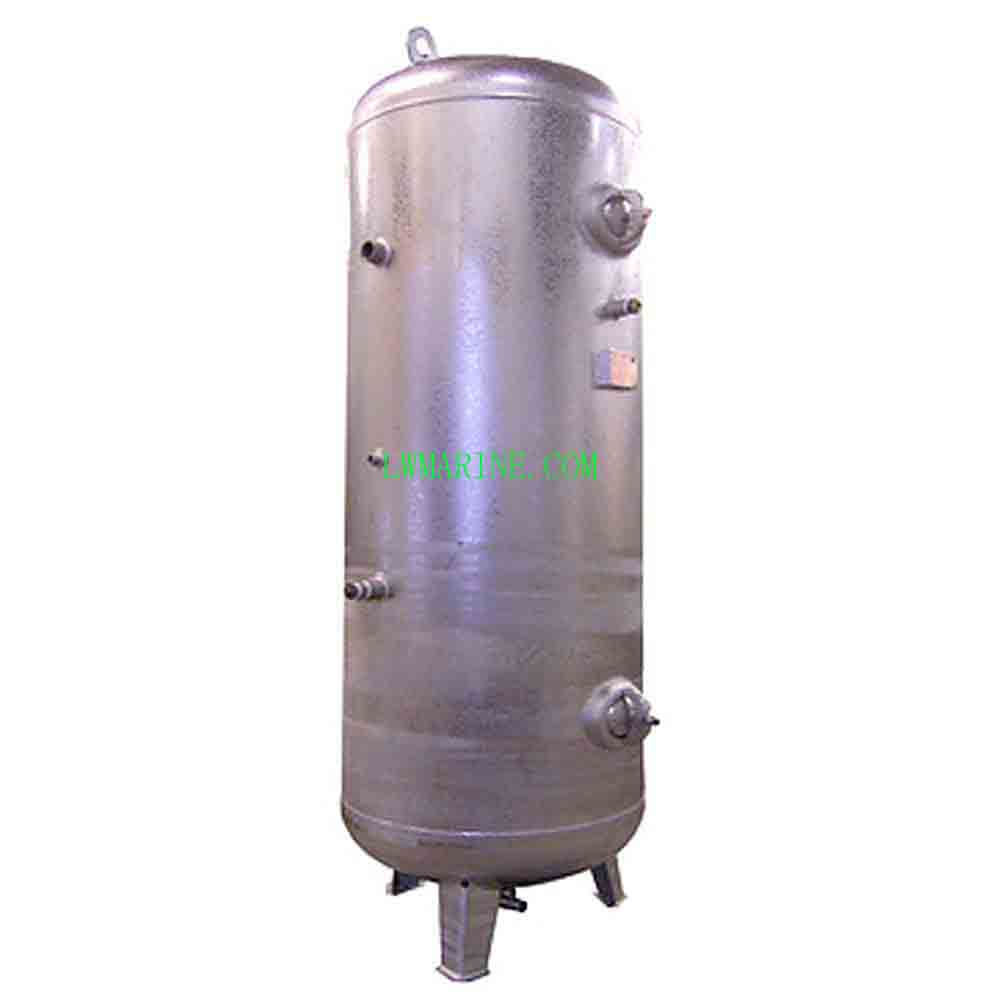

Marine Pressure Air Bottle
Our Marine Pressure Air Bottle is an ASME-compliant pressure vessel designed for industrial applications requiring reliable 3.0 MPa compressed air storage. Engineered with robust carbon steel construction and advanced safety features, it delivers stable air supply, reduces compressor cycling.
Key Features & Benefits
-
Pressure Stability: Maintains consistent system pressure during peak demand, preventing pressure drops in pneumatic tools, air brakes, and spraying equipment.
-
Contamination Control: Hermetic sealing and internal diaphragm prevent air quality degradation, ensuring moisture and pollutant-free output.
-
Food-Grade Safety: Optional natural rubber diaphragm (FDA-compliant) enables safe use in drinking water and pharmaceutical applications.
-
Extended Service Life: Reinforced diaphragm rated for 200,000+ cycles, reducing maintenance needs and operational downtime.
-
Flexible Installation: Available in vertical and horizontal configurations to adapt to space constraints and system layouts.
-
Full Safety Compliance: Includes pressure gauges, safety valves, and ASME certification ensuring secure operation under high-pressure conditions.
Technical Specifications
| Model | Capacity (m³) | Design Pressure (MPa) | Working Pressure (MPa) | Temperature (°C) | Diameter (mm) | Length (mm) | Height (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| A0.63-3.0 | 0.63 | 3.3 | 3.0 | 100 | 700 | 1800 | 1470 | 655 |
| A0.8-3.0 | 0.8 | 3.3 | 3.0 | 100 | 700 | 2270 | 1470 | 780 |
| A1.0-3.0 | 1.0 | 3.3 | 3.0 | 100 | 800 | 2200 | 1580 | 950 |
| A1.6-3.0 | 1.6 | 3.3 | 3.0 | 100 | 900 | 2740 | 1680 | 1180 |
| A2.5-3.0 | 2.5 | 3.3 | 3.0 | 100 | 1100 | 2890 | 1940 | 1925 |
| A4.0-3.0 | 4.0 | 3.3 | 3.0 | 100 | 1200 | 3815 | 2040 | 2650 |
| B6.3-3.0 | 6.3 | 3.3 | 3.0 | 100 | 1400 | 4400 | 2265 | 4230 |
| B8.0-3.0 | 8.0 | 3.3 | 3.0 | 100 | 1500 | 4850 | 2365 | 4936 |
| B10-3.0 | 10 | 3.3 | 3.0 | 100 | 1600 | 5320 | 2505 | 5785 |
| B12-3.0 | 12 | 3.3 | 3.0 | 100 | 1700 | 6220 | 2605 | 7500 |
| B14-3.0 | 14 | 3.3 | 3.0 | 100 | 1800 | 5880 | 2750 | 8770 |
Attention please: The description was copied from different cooperating manufacturers. The description may be different with the goods, please check with us when order.
