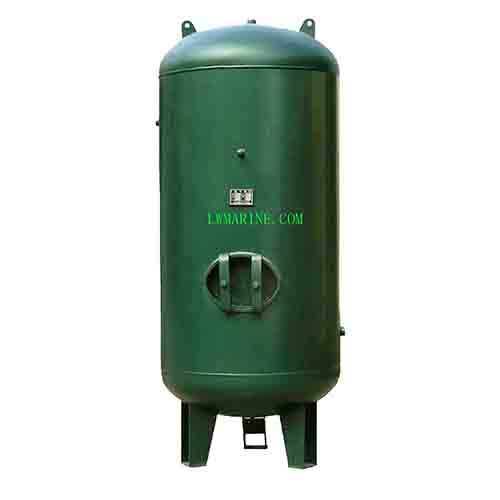

Marine Vertical Air Receiver Tank: High-Capacity Compressed Air Storage for Ships
Our Marine Vertical Air Receiver Tank is meticulously engineered to thrive in extreme maritime conditions, providing a high-capacity, class-approved solution for compressed air storage on ships. Its upright design optimizes space efficiency within engine rooms and confined marine spaces, ensuring a reliable air supply for critical shipboard systems such as engine start-up and air whistles. Certified by leading marine classification societies including BV, ABS, CCS, RINA, and DNV-GL, this tank guarantees exceptional performance, safety, and durability in saline and high-pressure environments, making it an indispensable component for modern maritime operations.
Key Features & Benefits:
- Classification Society Approvals: Certified by BV, ABS, CCS, RINA, DNV-GL, and other reputable organizations, ensuring full compliance with international marine standards for peace of mind.
- Premium Air & Water Safety: Equipped with a food-grade natural rubber diaphragm, making it suitable for potable water systems and preventing air contamination, thus ensuring the purity of both air and water supplies.
- Exceptional Lifespan & Reliability: The reinforced diaphragm can withstand over 200,000 cycles, offering a long service life with minimal maintenance requirements, reducing operational costs and downtime.
- Superior Seal Integrity: Hermetic sealing preserves air quality and prevents pollutants from entering the system, which is crucial for sensitive marine applications where air purity is paramount.
- Compact Vertical Footprint: Optimized for tight engine rooms and confined marine spaces, this tank maximizes capacity without compromising accessibility, making it ideal for ships with limited space.
- Corrosion-Resistant Construction: Fabricated from marine-grade steel with protective coatings, it resists seawater corrosion and harsh operating conditions, ensuring longevity and reliability in challenging environments.
Detailed Specifications:
A Type Marine Air Receiver:
- Design: Vertical or inclination design for flexible installation.
- Purpose: Mainly used to store compressed air and supply start-up or air whistle for main and auxiliary engines.
- Components: Comprises a bottle valve and steel body. The body features a handhole (or manhole) for easy cleaning and examination. The bottle valve is equipped with an inlet/outlet valve, safety valve, pressure gauge, pressure gauge valve, and drain valve.
Technical Specifications for A Type:
| Type Remark | Capacity (m³) | Working Pressure (Mpa) | Internal Diameter (mm) | Height (mm) | Weight (kg) |
|---|---|---|---|---|---|
| A0.05-1.0 | 0.05 | 1 | 300 | 1050 | 70 |
| A0.10-1.0 | 0.1 | 1 | 400 | 1270 | 125 |
| … | … | … | … | … | … |
| A0.40-3.0 | 0.4 | 3 | 600 | 1865 | 410 |
| A0.50-3.0 | 0.5 | 3 | 600 | 2270 | 450 |
B Type Marine Air Receiver:
- Design: Larger capacity for more demanding applications.
- Purpose: Suitable for storing larger volumes of compressed air for various shipboard systems.
Technical Specifications for B Type:
| Type Remark | Capacity (m³) | Working Pressure (Mpa) | Internal Diameter (mm) | Height (mm) | Weight (kg) |
|---|---|---|---|---|---|
| B0.63-1.0 | 0.63 | 1 | 700 | 1370 | 480 |
| B0.80-1.0 | 0.8 | 1 | 700 | 1370 | 520 |
| … | … | … | … | … | … |
| B16.00-3.0 | 16 | 3 | 2000 | 3070 | 11000 |
FAQs:
Q1: What certifications do your marine vertical air receiver tanks hold?
A1: Our marine vertical air receiver tanks are certified by leading marine classification societies including BV, ABS, CCS, RINA, and DNV-GL, ensuring full compliance with international marine standards.
Q2: Are your tanks suitable for potable water systems?
A2: Yes, our tanks are equipped with a food-grade natural rubber diaphragm, making them suitable for potable water systems and preventing air contamination.
Q3: How durable are your marine air receiver tanks?
A3: Our tanks are constructed from marine-grade steel with protective coatings to resist seawater corrosion and harsh operating conditions. The reinforced diaphragm can withstand over 200,000 cycles, offering a long service life with minimal maintenance.
Q4: Can I customize the capacity and working pressure of the tank?
A4: Yes, we offer a range of tank sizes and working pressures to meet your specific requirements. Our team can assist you in selecting the optimal tank for your application.
Q5: How do I ensure proper installation and maintenance of the tank?
A5: Our team provides detailed installation and maintenance instructions to ensure proper operation and longevity of the tank. We also offer after-sales support and technical assistance to address any concerns or issues that may arise.
Note: The description might be incorrect, please contact us for confirmation.
