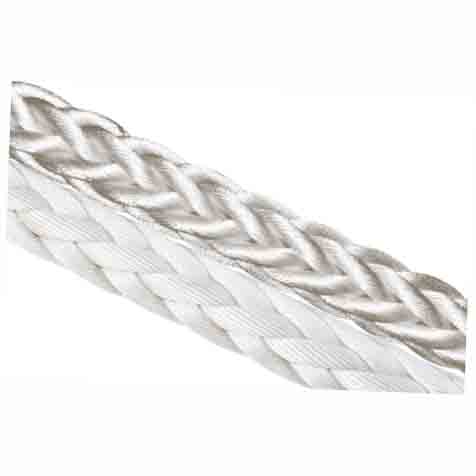

Marine Polyester Rope

Marine Polyester Rope

Place of Origin: Made In China
Delivery Time: 15-30 days
Click here to send inquiry via whatsapp

Category:

Marine Polyester Rope

General

  • Material: Polyester

  • Density: 1.38g/cm³, Sinking

  • Melting Point: 254-260℃

  • Elongation at Break: 13-15%

  • Abrasion Resistance: Good

  • UV Resistance: Good

  • Chemical Resistance: Good

  • Compliant with: OCIMF MEG4

Marine Polyester Rope is a high-quality polyester rope known for its excellent UV resistance, good chemical resistance, and good abrasion resistance. It offers the same strength and high elongation in both dry and wet conditions. It has the same strength and elongation in both dry and wet conditions. It offers the same strength and elongation in both dry and wet conditions.

Key Features

  • Excellent UV resistance: Good UV resistance among fiber ropes.

  • Good chemical and abrasion resistance.

  • Same strength and elongation in both dry and wet conditions.

  • High quality and durability.

  • Good UV resistance.

  • Excellent abrasion resistance.

  • Low elongation.

  • High strength.

  • Good chemical resistance.

Application

Marine mooring, pelagic fishing, sea farming.

8-Strand and 12-Strand Technical Parameters (ISO MEG4)
Size (mm) Circumference (inch) Weight (kg/m) Weight (kg/220m) Type I ISO MBF (kN) Type I ISO MBF (Ton) Type I MEG4 LDBF (kN) Type I MEG4 LDBF (Ton) Type II ISO MBF (kN) Type II ISO MBF (Ton) Type II MEG4 LDBF (kN) Type II MEG4 LDBF (Ton)
24 3 437 96.1 121 12.4 109 11.1 N/A N/A N/A N/A
28 3-1/2 594 130.7 166 16.9 149 15.2 N/A N/A N/A N/A
32 4 778 171.2 217 22.1 195 19.9 N/A N/A N/A N/A
36 4-1/2 982 216.0 273 27.9 246 25.1 N/A N/A N/A N/A
40 5 1210 266.2 337 34.4 303 30.9 460 46.9 414 42.2
44 5-1/2 1470 323.4 409 41.7 368 37.5 559 57.0 503 51.3
45 5-5/8 1538 338.4 428 43.7 385 39.2 584 59.6 526 53.7
48 6 1750 385.0 487 49.7 438 44.6 665 67.9 599 61.1
50 6-1/4 1895 416.9 527 53.7 474 48.3 720 73.5 648 66.1
52 6-1/2 2050 451.0 570 58.2 513 52.3 779 79.5 701 71.5
55 6-7/8 2300 506.0 639 65.2 575 58.7 874 89.2 787 80.3
56 7 2330 512.6 661 67.5 595 60.7 904 92.3 814 83.1
60 7-1/2 2730 600.6 759 77.4 683 69.6 1037 105.9 934 95.3
64 8 3110 684.2 864 88.2 778 79.3 1182 120.6 1064 108.5
65 8-1/8 3210 706.2 892 91.0 803 81.9 1220 124.5 1098 112.0
68 8-1/2 3510 772.2 976 99.5 878 89.5 1334 136.1 1200 122.5
70 8-3/4 3817 817.3 1032 105.3 929 94.8 1412 144.1 1271 129.6
72 9 3930 864.6 1092 111.5 983 100.3 1493 152.4 1344 137.1
75 9-3/8 4283 937.9 1184 120.9 1066 108.8 1620 165.3 1458 148.8
80 10 4850 1067.0 1348 137.5 1213 123.7 1843 188.1 1659 169.3
85 10-5/8 5480 1205.6 1522 155.3 1370 139.8 2082 212.5 1874 191.2
88 11 5870 1291.4 1631 166.4 1468 149.7 2231 227.6 2008 204.9
90 11-1/4 6140 1350.8 1706 174.0 1535 156.6 2333 238.1 2100 214.3
95 11-7/8 6850 1507.0 1903 194.2 1713 174.7 2398 244.6 2158 220.2
96 12 6990 1537.8 1942 198.2 1748 178.3 2447 249.6 2202 224.7
100 12-1/2 7580 1667.6 2106 214.9 1895 193.4 2653 270.7 2388 243.6
104 13 8200 1804.0 2187 223.1 1968 200.8 2870 292.9 2583 263.6
112 14 9500 2090.0 2533 258.5 2280 232.7 3325 339.3 2993 305.4
120 15 10800 2376.0 2907 296.6 2616 266.9 3815 389.3 3434 350.4

Note:

  • MBL = Minimum Breaking Force per ISO2307.

  • LDBF = Line Design Break Force per OCIMF MEG4 Appendix B.

  • Other sizes are available upon request.

Note: The description may be different with the product, please contact us for quotation.
