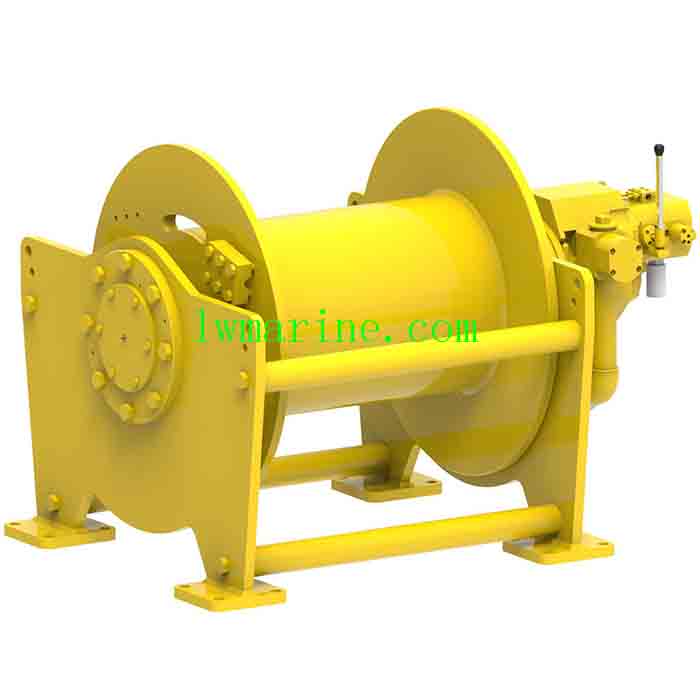

Marine Pneumatic Mooring Winch – Heavy-Duty Air-Powered Deck Machinery
Model: QJH150PACAMB-25-150
Designed for reliable mooring, lifting, and pulling operations across marine vessels, offshore platforms, and engineering sites, this marine pneumatic mooring winch delivers high performance in demanding environments. Its integrated design combines an air motor and control valve into a single unit, allowing operators to manage speed, direction, and braking with ease and precision.
Key Features & Benefits:
-
Manual Braking System: Equipped with both hand-pressed and hand-cranked brakes for secure and flexible operation during winching tasks.
-
Ergonomic Single-Handle Control: One lever controls winch speed, forward, and reverse motion—streamlining operation and reducing user fatigue.
-
Pneumatic Clutch System: Enables versatile drum control via a hand-pull valve, allowing separate, synchronous, or full disengagement of the drum and anchor rope reel.
-
Air-Driven Reliability: Powered by compressed air (0.6–0.9 MPa), ensuring safe and consistent performance even in hazardous or corrosive environments.
-
Heavy-Duty Construction: Built to withstand harsh marine conditions with a rated tension of 150 kN and generous rope capacity.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | QJH150PACAMB-25-150 |
| Working Pressure | 0.6–0.9 MPa |
| Rated Tension | 150 kN |
| Retracting/Unwinding Speed | 6 m/min |
| Wire Rope Diameter | 25 mm |
| Reel Rope Capacity | 150 m |
| Dimensions (L×W×H) | 2178 × 970 × 1168 mm |
| Winch Weight | 2600 kg |
Applications:
-
Ship and vessel mooring systems
-
Offshore platform lifting and pulling
-
Heavy load handling in port and engineering applications
-
Tugboats, workboats, and commercial marine operations
The description/sizes may be different with goods, please check with us when order.
