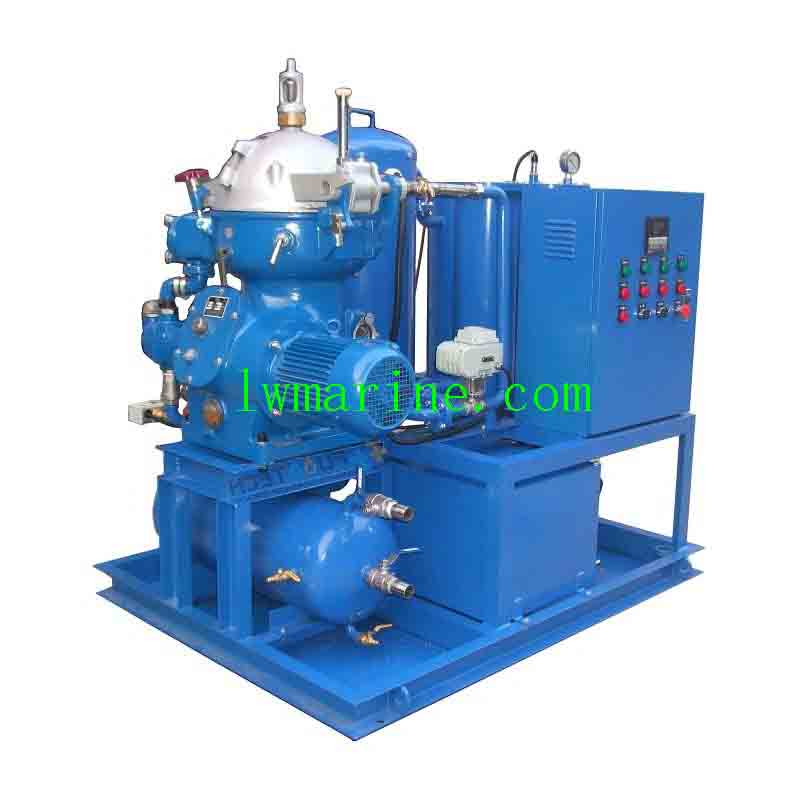

Marine Oil Purifier Centrifuge
Primary Applications:
-
Purification and clarification of:
-
Diesel fuels
-
Light fuel oils
-
Heavy fuel oils
-
-
Treatment of other mineral oils to remove:
-
Water/moisture content
-
Mechanical impurities
-
Harmful contaminants
-
KYDH Series Separator Highlights:
Our automatic-discharge centrifugal separators provide efficient processing of various fuel oils and mineral oils, effectively eliminating water, solid particles, and detrimental substances from lubricants and fuels.
Marine Oil Purifier Key Advantages:
-
Automatic Sludge Discharge System
-
Continuous operation without disassembly requirements
-
Maintains peak separation efficiency
-
Eliminates manual cleaning processes
-
-
Intelligent Control System
-
Programmable automation reduces operator workload
-
Customizable operation parameters
-
Significant labor cost savings
-
-
Precision-Engineered Performance
-
Dynamically balanced rotor system
-
Minimal vibration operation
-
Safe, reliable long-term service
-
Low-maintenance design
-
Moled and Parameters:
| No. | Model | Motor Power | Discharge way | Separator factor | Capacity | Drum diameter | Drum speed | Weight(kg) | Size(mm*mm*mm) |
| (KW) | (l/h) | (mm) | |||||||
| 1 | KYDR203CD-23 | 2.2 | Manual | 6170 | 1500 | 230 | 6930 | 245 | 850*625*985 |
| 2 | KYDH204SD-23 | 4 | Automatic | 6950 | 2000 | 270 | 7200 | 550 | 865*645*1100 |
| 3 | KYDH206SD-23 | 5.5 | Automatic | 7000 | 3000 | 315 | 6500 | 650 | 900*600*1150 |
| 4 | KYDH207SD-23 | 7.5 | Automatic | 7500 | 4000 | 385 | 6500 | 750 | 1100*1050*1250 |
| 5 | KYDH209SD-23 | 11 | Automatic | 8050 | 5000 | 430 | 6000 | 900 | 1200*950*1400 |
| 6 | KYDH211SD-23 | 18.5 | automatic | 8000 | 10000 | 500 | 5500 | 1200 | 1250*1000*1550 |
The description/sizes may be different with goods, please check with us when order.
