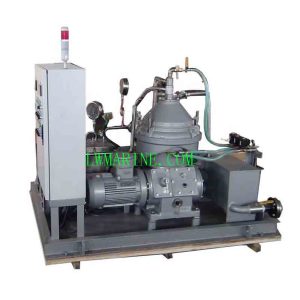

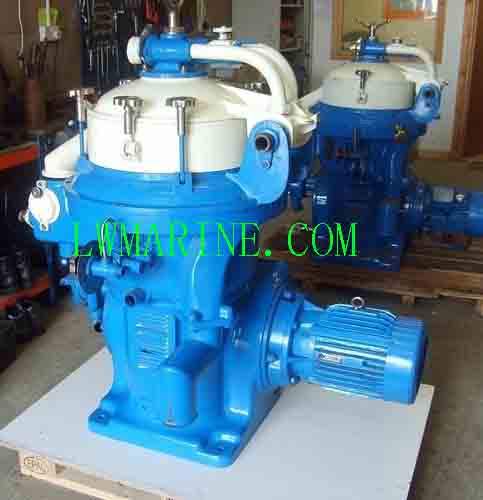

2000L/H Marine Automatic Oil Separator Unit
Our 2000L/H HM Marine Automatic Oil Separator Unit represents the latest innovation in marine oil purification technology. This fully automated system efficiently removes contaminants from various oil types including diesel and heavy fuel oils, ensuring optimal engine performance and extended equipment lifespan. Featuring intelligent touch-screen operation and remote monitoring capabilities, this separator unit delivers reliable, continuous operation with minimal crew intervention.
Engineered for marine environments, the system features automatic temperature control, pressure monitoring, and self-cleaning functions—making it an essential component for modern vessel maintenance and operational efficiency.
Key Features & Benefits:
-
Fully Automated Operation: Automatic slag discharge and solenoid valve control reduce manual intervention
-
Intelligent Monitoring System: Temperature and pressure sensors with automatic alarm functions
-
Remote Control Capability: CAN bus extension enables central control room monitoring
-
Premium Components: ABB motor with IP55 protection and Class F insulation
-
Multi-Viscosity Handling: Effective separation from 0# diesel to 380cst heavy fuel oil
-
Compact Marine Design: Space-efficient module with corrosion-resistant construction
Technical Specifications:
| Parameter | HM605-A1 (2000L/H) | HM615-A1 (3000L/H) |
|---|---|---|
| Rated Capacity | 2000 L/h | 3000 L/h |
| Motor Power | 2.2 KW | 3.0 KW |
| Motor Brand | ABB | ABB |
| Motor Protection | IP55 | IP55 |
| Insulation Class | Class F | Class F |
| Separation Speed | 9512 r/min | 9512 r/min |
| Output Pressure | 0.15-0.2 MPa | 0.15-0.2 MPa |
| Power Supply | AC380V/50Hz or AC440V/60Hz | AC380V/50Hz or AC440V/60Hz |
| Fresh Water Pressure | 0.2-0.5 MPa | 0.2-0.5 MPa |
| Module Weight | 600 kg | 650 kg |
| Dimensions (L×W×H) | 1360×1100×1250 mm | 1360×1100×1250 mm |
Effective Separation Capacity:
-
0# Diesel Oil: 2000 L/h (HM605-A1) / 3000 L/h (HM615-A1)
-
180cst/50℃: 1300 L/h / 2000 L/h
-
380cst/50℃: 950 L/h / 1600 L/h
-
SAE40: 860 L/h / 1450 L/h
Interface Connections:
| Code | Function | Diameter |
|---|---|---|
| A | Dirty Oil Inlet | DN25 |
| B | Purified Oil Outlet | DN25 |
| C | Circulating Oil Outlet | DN25 |
| D | Drain Contamination Outlet | DN50 |
| E | Compressed Air Inlet | DN8 |
| F | Operating Water Inlet | DN15 |
| G | Heat Source Inlet | DN25 |
| H | Heat Source Outlet | DN25 |
| I | Drain Outlet Oil Collection Pan | G3/4″ |
