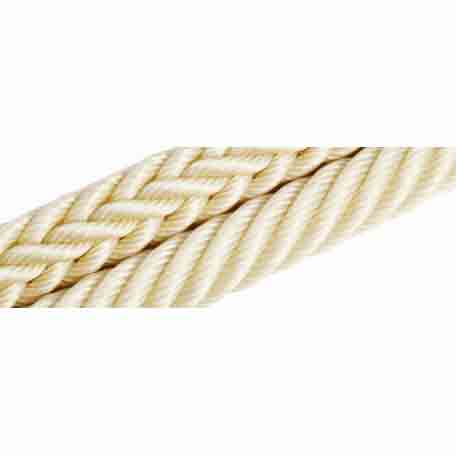

Marine Nylon Monofilament Composite Rope

General

Material: Nylon Monofilament
Density: 1.14 g/cm³, Sinking
Melting Point: 218-258℃
Elongation at Break: 19-23%
Abrasion Resistance: Excellent
UV Resistance: Good
Chemical Resistance: Good

Nylon Monofilament Composite Rope is a high-performance nylon monofilament composite rope made with imported high-quality nylon monofilament fibers. It features high strength, excellent elongation, and superior abrasion resistance. The rope is available in two series: Type I (6-Strand) and Type II (12-Strand), each offering superior strength and durability compared to conventional nylon ropes.

Type I Series

Nylon Monofilament Composite Rope Type I is a 6-strand nylon monofilament composite rope, known as a “6-strand rope”. It is made from imported high-quality nylon monofilament fibers and uses world-leading technology. Compared with domestic products of the same specification, it is stronger, longer, more durable, and easier to maintain. The core of the rope is wrapped with a 6-strand outer jacket, which provides excellent structural stability and strength.

Type II Series

Nylon Monofilament Composite Rope Type II is a 12-strand nylon monofilament composite rope, known as a “12-strand rope”. It is made from imported high-quality nylon monofilament fibers and is produced using world-leading technology. Compared with domestic products of the same specification, it is stronger, longer, more durable, and easier to maintain. The core of the rope is wrapped with a 12-strand outer jacket, which provides excellent structural stability and strength.

Application

Ship mooring, automatic towing.

6-Strand and 12-Strand / Type I Technical Parameters

Size (mm)	Circumference (inch)	Weight (kg/m)	Weight (kg/220m)	Dry Strength (kN) – ISO MBF	Dry Strength (Ton) – ISO MBF	Wet Strength (kN) – ISO MBF	Wet Strength (Ton) – ISO MBF
40	5	1040	228.8	304	31.0	233	23.7
44	5 1/2	1250	275.0	412	42.0	315	32.2
48	6	1480	325.6	490	50.0	375	38.3
52	6 1/2	1800	396.0	631	64.4	483	49.3
56	7	2000	440.0	684	69.8	523	53.4
60	7 1/2	2160	475.2	686	70.0	525	53.6
62	7 3/4	2340	517.0	784	80.0	600	61.2
64	8	2450	539.0	795	81.1	608	62.1
68	8 1/2	2810	618.2	925	94.4	708	72.2
70	8 3/4	3110	684.2	1010	103.1	773	78.8
72	9	3200	704.0	1005	102.6	769	78.4
76	9 3/4	3770	829.4	1180	120.4	903	92.1
80	10 1/2	4270	939.4	1380	140.8	1056	107.7
84	10 1/2	5020	1104.4	1490	152.1	1140	116.3
88	11	5400	1188.0	1628	166.1	1246	127.1
92	11 1/2	5600	1232.0	1842	187.9	1410	143.9
96	12	5860	1289.2	1870	190.8	1431	146.0

Note:

MBL = Minimum Breaking Force per ISO2307.
LDBF = Line Design Break Force per OCIMF MEG4 Appendix B.
Other sizes are available upon request.

6-Strand and 12-Strand / Type II Technical Parameters

Size (mm)	Circumference (inch)	Weight (kg/m)	Weight (kg/220m)	Dry Strength (kN) – ISO MBF	Dry Strength (Ton) – ISO MBF	Wet Strength (kN) – ISO MBF	Wet Strength (Ton) – ISO MBF
40	5	1060	233.2	275	28.1	210	21.5
44	5 1/2	1280	281.6	333	34.0	255	26.0
48	6	1470	323.4	392	40.0	300	30.6
52	6 1/2	1720	378.4	454	46.3	347	35.4
56	7	2000	440.0	520	53.1	398	40.6
60	7 1/2	2320	510.4	605	61.8	464	47.3
62	7 3/4	2470	543.4	637	65.0	487	49.7
64	8	2630	578.6	669	68.3	512	52.2
68	8 1/2	2920	642.4	753	76.8	576	58.8
70	8 3/4	3150	693.0	794	81.0	607	62.0
72	9	3340	734.8	836	85.3	640	65.3
76	9 3/4	3940	866.8	986	100.6	754	77.0
80	10 1/2	4570	1005.4	1140	116.3	872	89.0
84	11 1/4	5240	1152.8	1312	133.7	1002	102.3
88	11	5440	1196.8	1390	141.8	1063	108.5
92	11 1/2	5900	1298.0	1480	151.0	1132	115.5
96	12	6000	1320.0	1680	171.4	1285	131.1

Note:

MBL = Minimum Breaking Force per ISO2307.
LDBF = Line Design Break Force per OCIMF MEG4 Appendix B.
Other sizes are available upon request.

Note: The description may be different with the product, please contact us for quotation.
