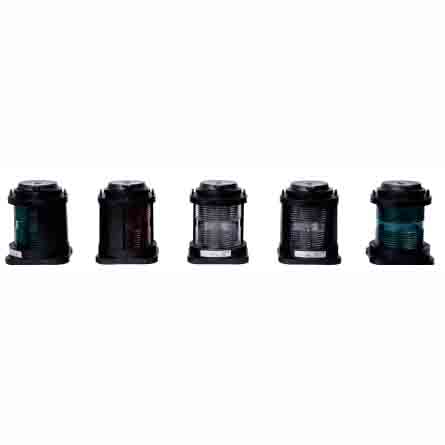

Marine Navigation Signal Lights
LED
Applied to the ships with the length 12m or above 12m (<50m) as lamp signal liaison when night navigation.
| CXH1-21P CXH1-21PL | CXH2-21P CXH2-21PL | CXH3-21P CXH3-21PL | CXH4-21P CXH4-21PL | CXH6-21P CXH6-21PL | |
|---|---|---|---|---|---|
| The scope of application | Starboard light | Port light | Masthead light | Stern light | All-round light |
| Name | Conventional LED | Conventional LED | Conventional LED | Conventional LED | Conventional LED |
| Type | |||||
| Model | CXH1-21P CXH1-21PL | CXH2-21P CXH2-21PL | CXH3-21P CXH3-21PL | CXH4-21P CXH4-21PL | CXH6-21P CXH6-21PL |
| Rated Voltage | 12V/24V | 12V/24V | 12V/24V | 12V/24V | 12V/24V |
| Power | 25W 5W | 5W LED | 25W 5W LED | 5W LED | 25W 5W LED |
| Lampholder | Bay15d LED | Bay15d LED | Bay15d LED | Bay15d LED | Bay15d LED |
| Color | Green | Red | Clear Transparent | Clear Transparent | Red/Green (all-round light) Yellow/Yellow |
| Level Arc | 112.5° | 112.5° | 225° | 135° | 360° |
| Vertical arc | ±5° | ±5° | ±5° | ±5° | ±5° |
| Visibility | 2n.m | 2n.m | 5n.m | 2n.m | 2n.m |
| Protection Class | IP56 | IP56 | IP56 | IP56 | IP56 |
| Cable outside diameter | Φ10 – Φ12 | Φ10 – Φ12 | Φ10 – Φ12 | Φ10 – Φ12 | Φ10 – Φ12 |
| Installation | Seat type | Seat type | Seat type | Seat type | Seat type |
| Ambient temperature | -30℃～+55℃ | -30℃～+55℃ | -30℃～+55℃ | -30℃～+55℃ | -30℃～+55℃ |
| Lamp body material | The shell is made of high-strength engineering plastic PA+GF injection molding, the lens hood adopts high-quality stainless steel. | ||||
| Lampshade material | The lampshade adopts PC injection molding. | ||||
| Weight | 1.2KG | 1.5KG | 1.2KG | 1.5KG | 1.2KG 1.5KG 1.2KG 1.5KG |
Attention please: The description may be different with the product, please contact us for quotation.
