Marine Mooring Winch Towing Winch System – Technical Specifications
Product Overview
Heavy-duty marine mooring/towing winch engineered for tugboats and offshore vessels, featuring integrated cable lifters (5-150 ton capacity).
Key Components
-
Towing Drum Assembly
-
Declutchable design with fail-safe band brake
-
Automatic/mechanical spooling system
-
-
Control System
-
Hydraulic Remote Control:
-
Friction clutch engagement
-
Spindle band brake operation
-
-
Manual Override: Local brake control
-
-
Warping Head
-
Mounted on intermediate shaft
-
Direct load transfer to foundation
-

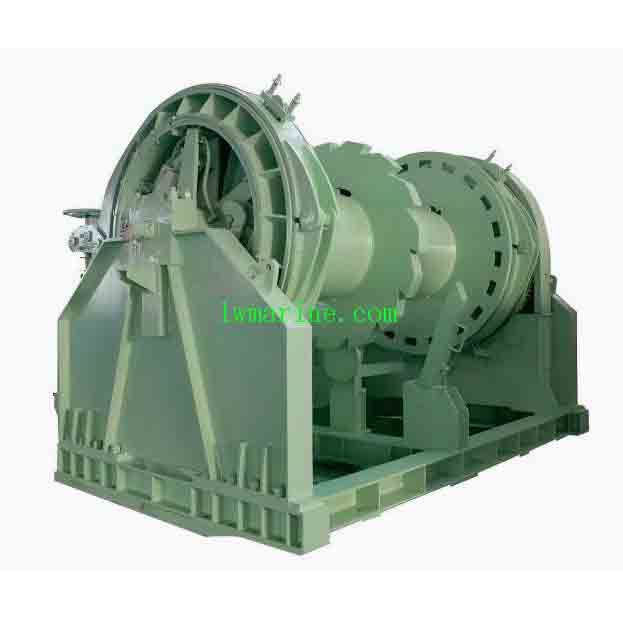

Marine Mooring Winch
Parameters:
| Rated Pull(kN) | Drum Capacity(m) | Rated Speed(m/min) | Motor Power(kW) |
| 10 | Ф10х150 | ≥12 | 5.5 |
| 20 | Ф15х150 | ≥12 | 11 |
| 30 | Ф17х150 | ≥15 | 15 |
| 40 | Ф18х150 | ≥15 | 22 |
| 50 | Ф20.5х150 | ≥15 | 30 |
| 75 | Ф26х200 | ≥15 | 45 |
| 80 | Ф26х200 | ≥15 | 45 |
| 100 | Ф30х200 | ≥15 | 45 |
| 125 | Ф30х200 | ≥15 | 75 |
| 160 | Ф32х250 | ≥15 | 75 |
| 200 | Ф41х250 | ≥9.6 | 75 |
| 250 | Ф44.5х250 | ≥9.6 | 90 |
| 315 | Ф52х250 | ≥7.8 | 90 |
| 400 | Ф56х250 | ≥7.8 | 110 |
| 450 | Ф56х250 | ≥7.8 | 110 |
| 500 | Ф58х250 | ≥7.8 | 110 |
| 560 | Ф64х250 | ≥6 | 132 |
| 600 | Ф64х250 | ≥6 | 132 |
| 650 | Ф70х250 | ≥6 | 132 |
| 1000 | Ф85х250 | ≥4 | 132 |
| 1200 | Ф95х250 | ≥4 | 160 |
| 1500 | Ф95х250 | ≥4 | 200 |
| 1800 | Ф95х250 | ≥4 | 250 |
| 2000 | Ф100х250 | ≥4 | 270 |
The description/sizes may be different with goods, please check with us when order.
