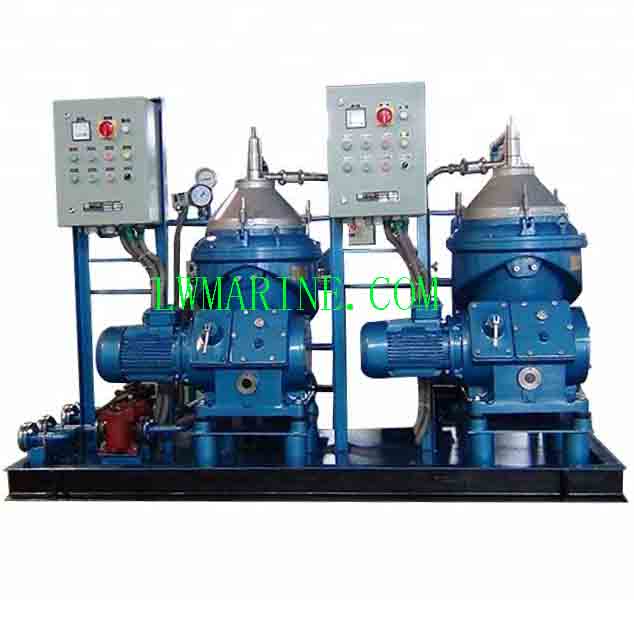

Marine Lube Oil Treatment Machine | Automatic Oil Purification & Clarifier System for Marine and Industrial Use
Product Overview
Our Marine Lube Oil Treatment Machine is a high-efficiency centrifugal separation system designed for both marine and land-based applications. It effectively removes water and solid contaminants from mineral oils, including lubricating oils and low-viscosity fuels, ensuring continuous discharge of cleaned oil and periodic sludge removal. Ideal for purifying or clarifying oils in demanding environments, this system supports flexible operation modes to suit varying fluid compositions.
Key Applications
-
Purification of marine diesel oil (MDO), intermediate fuel oil (IFO), heavy fuel oil (HFO), and lubricating oils
-
Removal of water, sludge, and solid particles from R&O-type, detergent, and turbine oils
-
Continuous oil cleaning with intermittent sludge discharge for minimal maintenance
-
Compatible with viscosities ranging from 1.5 cSt to 380 cSt
Operational Modes
-
Purifier Mode: Continuously discharges separated water while cleaning oil
-
Clarifier Mode: Discharges water and solids together for oils with low water content
Design & Construction
-
Robust Frame Assembly: Includes lower, intermediate, and top sections with a protective hood
-
Efficient Drive System: Electric motor with flat-belt transmission and overload-protection friction coupling
-
Hydraulic Sludge Discharge: Automatically ejects solids at programmable intervals
-
Leak-Free Operation: Precision-balanced pressures and fluid levels prevent leakage during operation
Technical Specifications
-
Max Feed Density: 1100 kg/m³
-
Max Sediment Density: 2332 kg/m³
-
Power Consumption: Idling: 0.9 kW | Running: 2.0 kW | Max: 2.8 kW (start-up)
-
Bowl Speed: 9512 RPM (50Hz) / 9307 RPM (60Hz)
-
Motor Power: 3 kW
-
Sludge Capacity: Total: 1.0L / Effective: 0.3L
-
Sound Pressure Level: 75 dB(A)
-
Weight: Separator: 193 kg | Motor: 21 kg | Bowl: 37 kg
Certification & Compliance
Designed to meet international marine and industrial standards, with optional IACS certifications available upon request.
The description/sizes may be different with goods, please check with us when order.
