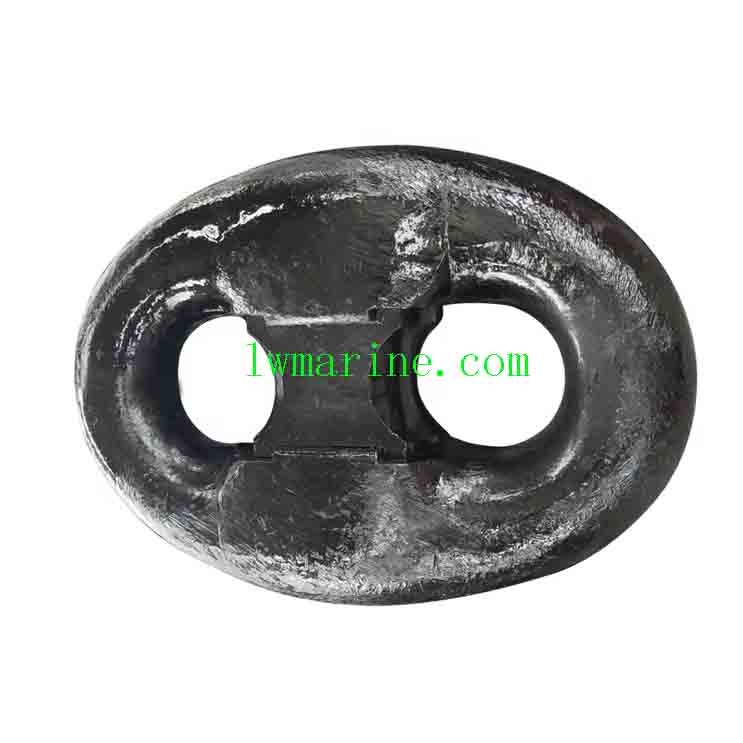

Marine Kenter Shackle

High-Strength Marine Kenter Shackle for Anchor Chain Assembly

Our China-manufactured Kenter Shackle is engineered as the critical, detachable linking solution for marine anchor chains. Designed to meet rigorous international standards, these forged shackles provide a reliable and secure method for joining chain links, essential for vessel mooring and anchoring systems. As a leading kenter shackle supplier, we ensure every component delivers unmatched performance in the most demanding offshore environments.

Key Features & Quality Assurance:

Material Excellence: Fabricated from high-tensile steel, available in Grade U2 and U3 to meet various strength requirements.
Full Certification: Independently certified by all major classification societies including ABS, BV, DNV, GL, LR, NK, RINA, RS, and CCS, guaranteeing global maritime compliance.
Comprehensive Size Range: From 12.5mm (1/2″) to 162mm (6-3/8″) chain diameter, offering the perfect shackle for any vessel size, from workboats to large commercial ships.
Rugged Durability: Built to withstand extreme tensile loads and corrosive seawater, ensuring long-term operational safety.

Technical Specifications & Weight Table

Product Specifications

Product Type: Kenter Joining Shackle (Detachable)
Grade: U2, U3
Size Range: 12.5 mm to 162 mm
Certifications: ABS, LR, BV, DNV, GL, RINA, KR, NK, RS, CCS

Detailed Component Weight Chart (Selective Size Range)

Chain Diameter	Kenter Shackle	Joining Shackle	Anchor Shackle	Swivel	Swivel Forerunner	Swivel Shackle A	Swivel Shackle B
Inches	mm	kg	kg	kg	kg	kg	kg
7/8	22	1.6	2.6	3.9	3.5	8.7	17.5	7.6
1	25.5	2.5	4.5	6.7	5.7	14.2	37.6	12.5
1 1/2	38	8.4	13.4	19.5	17.4	42.6	107	39.4
2	51	20.3	34	50.9	49.5	117.2	264	101
3	76	60.7	107	146	143.8	347.8	464	314
4	101.5	158	267	378	344	835.5	1464	761
5	127	312	499	679	729	1663	–	–
6 3/8	162	651	1036	1410	1490	3401	–	–
