Marine Junction Box

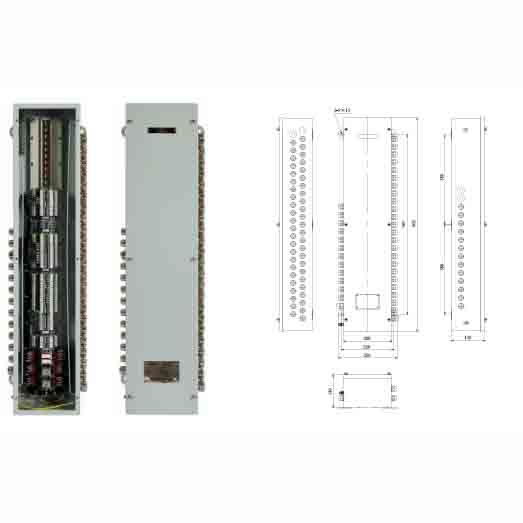

Product Image and Dimensional Diagram
[The image shows a front – view photo of a marine junction box and a detailed dimensional diagram. The dimensional diagram provides precise measurements of the junction box’s length, width, height, and the positions and sizes of various holes and components on it.]
Technical Specifications and Details
Application Scope
Suitable for organizing and connecting electrical systems on ships, mainly including lighting, power – supply, ship – control, communication, navigation, and fire – fighting systems, etc.
Name and Model
- Name: Marine Cabin Junction Box
- Model: HDC – JXT
Technical Parameters
| Item | Detail |
|---|---|
| Rated Voltage (Rated voltage) | ≤600V |
| Protection Class (Protection class) | IP22/IP44 |
| Installation Type (Installation type) | Wall – mounted |
| Ambient Temperature (Ambient temperature) | – 25℃ – + 55℃ |
| Enclosure Material (Enclosure material) | Stainless steel plate, cold – rolled steel sheet |
Product Features
- Cable Management: Allows cables to be led in and distributed in multiple directions, effectively reducing the degree of cable entanglement and making cable maintenance and replacement easier.
- Safety Protection: While providing electrical connection functions, it also offers necessary safety protection to prevent electric shock, fire, and other hazards.
- Durability and Corrosion Resistance: Made of high – quality stainless steel or cold – rolled steel with surface treatment, it has good corrosion resistance and can adapt to harsh marine environments.
- Easy Maintenance: Designed for easy maintenance and repair, facilitating the inspection and replacement of electrical connections in the box.
Attention please: The description may be different with the product, please contact us for quotation.
