Marine jet pump CP Series
1. General
This injection water pump is used for drainage.
2. Main technical parameter
The Main technical parameter of the CP, CPT series marine jet pump
| No. | Model | Flow (m³/h) | Discharge Pressure (m) | Suction Height (m) | Working Water Pressure (MPa) | Water Consumption (m³/h) |
|---|---|---|---|---|---|---|
| 1 | CP5-0.3 | 5 | 5 | 4 | 0.3 | 6 |
| 2 | CP5-0.7 | 5 | 8 | 4 | 0.7 | 3.6 |
| 3 | CP10-0.3 | 10 | 5 | 4 | 0.3 | 12 |
| 4 | CP10-0.7 | 10 | 8 | 4 | 0.7 | 7 |
| 5 | CP15-0.3 | 15 | 5 | 4 | 0.3 | 19 |
| 6 | CP15-0.5 | 15 | 5 | 4 | 0.5 | 24 |
| 7 | CP15-0.7 | 15 | 15 | 4 | 0.7 | 27 |
| 8 | CP20-0.3 | 20 | 5 | 4 | 0.3 | 24 |
| 9 | CP20-0.7 | 20 | 8 | 4 | 0.7 | 14 |
| 10 | CP30-0.3 | 30 | 5 | 4 | 0.3 | 36 |
| 11 | CP30-0.7 | 30 | 8 | 4 | 0.7 | 21 |
| 12 | CP40-0.3 | 40 | 5 | 4 | 0.3 | 47 |
| 13 | CP50-0.3 | 50 | 6 | 3 | 0.3 | 55 |
| 14 | CP50-0.7 | 50 | 8 | 4 | 0.7 | 35 |
| 15 | CP100-0.7 | 100 | 9 | 2 | 0.7 | 60 |
| 16 | CP100-0.3 | 100 | 6 | 3 | 0.3 | 110 |

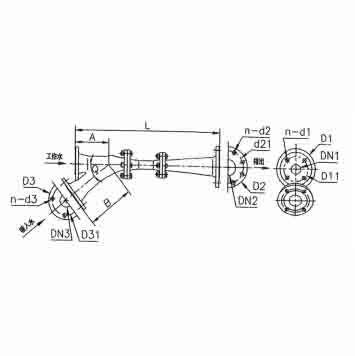

3. Installation and contour dimensions
| Model | External Installation Dimensions | Working Water Inlet Flange | Discharge Flange | Suction Flange | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L | A | B | Q | D1 | D11 | DN1 | n-d1 | D2 | D21 | DN2 | n-d2 | D3 | D31 | DN3 | n-d3 | |||||
| CP5-0.3 | 591 | 167 | 203 | 38³ | 115 | 83 | 32 | 4-M12 | 135 | 103 | 50 | 6-Φ15 | 135 | 103 | 50 | 6-Φ15 | ||||
| CP5-0.7 | 420 | 139 | 190 | 39² | 105 | 73 | 25 | 4-M12 | 115 | 83 | 32 | 6-Φ15 | 135 | 103 | 50 | 6-Φ15 | ||||
| CP10-0.3 | 723 | 170 | 226 | 38² | 125 | 93 | 40 | 4-M12 | 155 | 123 | 65 | 6-Φ15 | 155 | 123 | 65 | 6-Φ15 | ||||
| CP10-0.7 | 550 | 142 | 194 | 39² | 115 | 83 | 32 | 4-M12 | 135 | 103 | 50 | 6-Φ15 | 135 | 103 | 50 | 6-Φ15 | ||||
| CP15-0.3 | 804 | 241 | 220 | 39² | 135 | 103 | 50 | 4-M14 | 170 | 138 | 80 | 8-Φ15 | 155 | 123 | 65 | 6-Φ15 | ||||
| CP15-0.5 | 751 | 176 | 242 | 39² | 135 | 103 | 50 | 4-M14 | 170 | 138 | 80 | 8-Φ15 | 155 | 123 | 65 | 6-Φ15 | ||||
| CP15-0.7 | 751 | 176 | 242 | 39² | 135 | 103 | 50 | 4-M14 | 170 | 138 | 80 | 8-Φ15 | 155 | 123 | 65 | 6-Φ15 | ||||
| CP20-0.3 | 866 | 195 | 230 | 38² | 135 | 103 | 50 | 4-M14 | 170 | 138 | 80 | 8-Φ15 | 155 | 123 | 65 | 6-Φ15 | ||||
| CP20-0.7 | 809 | 175 | 220 | 39² | 135 | 103 | 50 | 6-M14 | 170 | 138 | 80 | 8-Φ15 | 155 | 123 | 65 | 6-Φ15 | ||||
| CP30-0.3 | 1113 | 267 | 319 | 38² | 155 | 123 | 65 | 6-M14 | 190 | 158 | 100 | 8-Φ15 | 190 | 158 | 100 | 8-Φ15 | ||||
| CP30-0.7 | 795 | 194 | 228 | 39² | 135 | 103 | 50 | 6-M14 | 155 | 123 | 65 | 6-Φ15 | 170 | 138 | 80 | 8-Φ15 | ||||
| CP40-0.3 | 1113 | 267 | 319 | 38² | 155 | 123 | 65 | 6-M14 | 190 | 158 | 100 | 8-Φ15 | 190 | 158 | 100 | 8-Φ15 | ||||
| CP50-0.3 | 1390 | 328 | 270 | 38² | 170 | 138 | 80 | 6-M14 | 215 | 183 | 125 | 10-Φ15 | 215 | 183 | 125 | 10-Φ15 | ||||
| CP50-0.7 | 982 | 238 | 270 | 39² | 155 | 123 | 65 | 6-M14 | 170 | 138 | 80 | 8-Φ15 | 190 | 158 | 100 | 8-Φ15 | ||||
| CP100-0.7 | 1293 | 198 | 216 | 60² | 170 | 138 | 80 | 10-M14 | 215 | 183 | 125 | 10-Φ15 | 240 | 208 | 150 | 12-Φ15 | ||||
| CP100-0.3 | 1677 | 365 | 415 | 39² | 215 | 183 | 125 | 10-M14 | 240 | 208 | 150 | 12-Φ15 | 270 | 238 | 175 | 12-Φ15 |
Note: The description may be different with the product, please contact us for quotation.
