Marine Horizontal Self‑Priming Sludge Discharge Pump CZW Series

1. General

This pump integrates self‑priming and non‑clogging sewage discharge. It adopts axial back‑flow external mixing design. With unique design of pump casing and impeller flow channel, it does not need bottom valve or filling water like ordinary self‑priming clean water pumps. It can pump liquid containing large‑size solid particles and long‑fiber impurities. It is widely used in municipal dredging, pond aquaculture, light industry, paper‑making, textile, food, chemical industry, electric power, fiber, slurry and mixed suspension and other chemical working conditions, it is the ideal impurity pump.

The Series ZX pumps are newly developed self‑priming centrifugal pumps for clean water or chemicals. The pumps have the compact structure, the long life expectancy and the high energy‑efficiency to operate smoothly and reliably. It is just need to check the amount of liquid in the pump for self‑priming before starting pumping. The self‑priming centrifugal pumps are widely used for applications in the chemical, dyestuffs, petroleum, pharmaceutical, brewery, paper and pulp, metallurgical and mining industries and for oil discharge of oil carrying ships, as well as for water supply and sewage drainage of municipal, industrial and emergency services.

2. Main technical parameter

表格

No.	Pump Model	Flow ratem³/h	Headm	Rotational speedr/min	NPSH(NPSH)r(m)	Shaft powerkW	Matching motor powerkW
1	25CZW8‑15	8	15	2900	4.5	1.27	1.5kW,Y90S‑2‑H
2	25CZW5‑12	5	12	2900	4.5	0.935	1.1kW,Y802‑2‑H
3	32CZW10‑20	10	20	2900	4.5	1.87	2.2kW,Y 90L‑2‑H
4	32CZW8‑15	8	15	2900	4.5	1.27	1.5kW,Y90S‑2‑H
5	40CZW15‑30	15	30	2900	4.5	2.56	3kW,Y100L‑2‑H
6	40CZW20‑15	20	15	2900	4.5	1.87	2.2kW,Y 90L‑2‑H
7	50CZW15‑30	15	30	2900	4.5	2.56	3kW,Y100L‑2‑H
8	50CZW20‑15	20	15	2900	4.5	1.87	2.2kW,Y 90L‑2‑H
9	50CZW10‑20	10	20	2900	4.5	1.87	2.2kW,Y 90L‑2‑H
10	50CZW20‑30	20	30	2900	4.5	4.67	5.5kW,Y132S₁‑2‑H
11	65CZW20‑30	20	30	2900	5.0	4.67	5.5kW,Y132S₁‑2‑H
12	65CZW‑30‑18	30	18	2900	5.0	3.4	4kW,Y112M‑2‑H
13	65CZW25‑40	25	40	2900	5.0	6.375	7.5kW,Y132S₂‑2‑H
14	80CZW40‑25	40	25	2900	5.5	6.375	7.5kW,Y132S₂‑2‑H
15	80CZW40‑16	40	16	2900	5.5	3.4	4kW,Y112M‑2‑H
16	80CZW65‑25	60	25	2900	5.5	9.35	11kW,Y160M₁‑2‑H
17	80CZW60‑20	60	20	2900	5.5	6.375	7.5kW,Y132S₂‑2‑H
18	80CZW100‑10	100	10	2900	5.5	6.375	7.5kW,Y132S₂‑2‑H
19	100CZW100‑30	100	30	2900	6.0	12.75	15kW,Y160M₂‑2‑H
20	100CZW100‑20	100	20	2900	6.0	9.35	11kW,Y160M₁‑2‑H
21	150CZW200‑20	200	20	1450	6.0	18.7	22kW,Y180L‑4‑H
22	200CZW350‑18	350	18	1450	6.0	31.45	37kW,Y225S‑4‑H

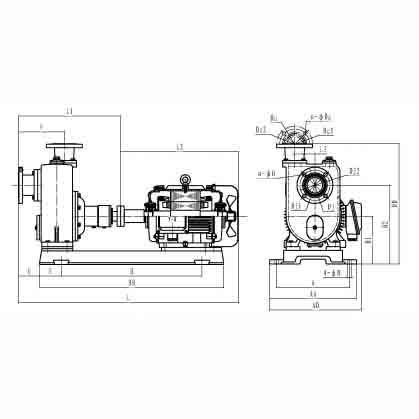

3. Installation and external dimensions

表格

MODEL	L1	F	C	E	B	BB	L	L2	A	AA	AD	H1	H2	HD
25CZW8‑15	702	167	85	120	285	550	364	336	270	320	320	164.4	260	390
25CZW5‑12	669	167	85	120	285	550	364	303	270	320	320	164.4	260	390
32CZW10‑20	727	167	85	120	285	550	364	361	270	320	320	164.4	260	390
32CZW8‑15	702	167	85	120	285	550	364	336	270	320	320	164.4	260	390
40CZW15‑30	791	151	67.7	120	410	650	394	397	310	360	360	206.5	324	500
40CZW20‑15	761	151	67.7	120	410	650	394	367	310	360	360	206.5	324	500
50CZW15‑30	791	151	67.7	120	410	650	394	397	310	360	360	206.5	324	500
50CZW20‑15	761	151	67.7	120	410	650	394	367	310	360	360	206.5	324	500
50CZW10‑20	761	151	67.7	120	410	650	394	367	310	360	360	206.5	324	500
50CZW20‑30	1034	251	128	108	570	786	548	482	350	410	410	238	383	592
65CZW20‑30	1034	251	128	108	570	786	548	482	350	410	410	238	383	592
65CZW30‑18	977	251	128	108	570	786	548	425	350	410	410	238	383	592
65CZW25‑40	1141	238	109.5	112.5	730	955	530	610	378	450	475	246	405	618.5
80CZW40‑25	1072	251	128	108	570	786	548	520	350	410	410	238	383	592
80CZW40‑16	977	251	128	108	570	786	548	425	350	410	410	238	383	592
80CZW65‑25	1072	251	128	108	570	786	548	520	350	410	410	238	383	592
80CZW60‑20	1028.5	251	108.5	115	590	820	546	480	360	400	423.5	255	400	609.5
80CZW100‑10	1028.5	251	108.5	115	590	820	546	480	360	400	423.5	255	400	609.5
100CZW100‑30	1202	251	108.5	115	730	960	546	654	360	400	441.5	255	400	607
100CZW100‑20	1202	251	108.5	115	730	960	546	654	360	400	441.5	255	400	607
150CZW200‑20	1496.5	328.5	151	128.5	960	1217	771	723.5	340	391	459	345	550	833
200CZW350‑18	1823.5	375.5	159	187	1060	1434	950.5	973	540	580	605.5	425	782	1059

4. Flange dimension

表格

MODEL	ΦDj	ΦDj1	ΦDj2	Dj3	N‑D	L3	N‑Dd	ΦDe
25CZW8‑15	Φ115	Φ85	Φ65	Φ25	4‑Φ14	64.4	4‑Φ18	Φ25
25CZW5‑12	Φ115	Φ85	Φ65	Φ25	4‑Φ14	64.4	4‑Φ18	Φ25
32CZW10‑20	Φ140	Φ100	Φ76	Φ32	4‑Φ18	64.4	4‑Φ18	Φ32
32CZW8‑15	Φ140	Φ100	Φ76	Φ32	4‑Φ18	64.4	4‑Φ18	Φ32
40CZW15‑30	Φ150	Φ110	Φ84	Φ40	4‑Φ18	0	4‑Φ22	Φ40
40CZW20‑15	Φ150	Φ110	Φ84	Φ40	4‑Φ18	0	4‑Φ22	Φ40
50CZW15‑30	Φ165	Φ125	Φ99	Φ50	4‑Φ18	0	4‑Φ22	Φ50
50CZW20‑15	Φ165	Φ125	Φ99	Φ50	4‑Φ18	0	4‑Φ22	Φ50
50CZW10‑20	Φ165	Φ125	Φ99	Φ50	4‑Φ18	0	4‑Φ22	Φ50
50CZW20‑30	Φ185	Φ145	Φ118	Φ65	4‑Φ18	98	4‑Φ22	Φ50
65CZW20‑30	Φ185	Φ145	Φ118	Φ65	4‑Φ18	98	4‑Φ22	Φ65
65CZW30‑18	Φ185	Φ145	Φ118	Φ65	4‑Φ18	98	4‑Φ22	Φ65
65CZW25‑40	Φ185	Φ145	Φ118	Φ65	4‑Φ18	105	4‑Φ22	Φ65
80CZW40‑25	Φ200	Φ160	Φ132	Φ80	8‑Φ18	98	4‑Φ22	Φ80
80CZW40‑16	Φ200	Φ160	Φ132	Φ80	8‑Φ18	98	4‑Φ22	Φ80
80CZW65‑25	Φ200	Φ160	Φ132	Φ80	8‑Φ18	98	4‑Φ22	Φ80
80CZW60‑20	Φ200	Φ160	Φ132	Φ80	8‑Φ18	103	4‑Φ22	Φ80
80CZW100‑10	Φ200	Φ160	Φ132	Φ80	8‑Φ18	103	4‑Φ22	Φ80
100CZW100‑30	Φ220	Φ180	Φ156	Φ100	8‑Φ18	103	4‑Φ22	Φ100
100CZW100‑20	Φ220	Φ180	Φ156	Φ100	8‑Φ18	103	4‑Φ22	Φ100
150CZW200‑20	Φ285	Φ240	Φ211	Φ150	8‑Φ22	97.5	4‑Φ22	Φ150
200CZW350‑18	Φ340	Φ295	Φ254	Φ200	8‑Φ22	230.5	4‑Φ22	Φ200

Note: The description may be different with the product, please contact us for quotation.
