Marine Horizontal Self‑priming Centrifugal Pump CWZ Series
General
CWZ series marine horizontal self‑priming centrifugal pumps are applicable for ship service pressure pumps, bilge pumps, cooling water pumps, fire‑fighting pumps, general service pumps, etc. They can be used to transport seawater, fresh water and other non‑corrosive liquid media with temperature not higher than 80℃.
Main Technical Parameters
Parameters in case of power supply frequency of 50Hz, 3‑phase, 380V. CWZ Type Marine Horizontal Self‑priming Centrifugal Pump Re‑examined Model Performance Parameter Table (50Hz)
表格
| No. | Pump Model | Flow Rate m³/h | Head m | Speed r/min | NPSHr (m) | Shaft Power kW | Matched Power kW |
|---|---|---|---|---|---|---|---|
| 1 | 25CWZ‑3 | 1.5 | 33 | 2950 | 4.1 | 1.27 | 1.5kW, Y90S‑2‑H |
| 3 | 30 | 2950 | 4.1 | 1.27 | 1.5kW, Y90S‑2‑H | ||
| 3.6 | 26 | 2950 | 4.1 | 1.27 | 1.5kW, Y90S‑2‑H | ||
| 2 | 32CWZ‑25 | 1.75 | 30.8 | 2950 | 4.1 | 1.27 | 1.5kW, Y90S‑2‑H |
| 3.5 | 28 | 2950 | 4.1 | 1.27 | 1.5kW, Y90S‑2‑H | ||
| 4.2 | 24.3 | 2950 | 4.1 | 1.27 | 1.5kW, Y90S‑2‑H | ||
| 3 | 32CWZ‑5 | 4 | 23.7 | 2950 | 4.1 | 1.27 | 1.5kW, Y90S‑2‑H |
| 8 | 21 | 2950 | 4.1 | 1.27 | 1.5kW, Y90S‑2‑H | ||
| 9.6 | 19.5 | 2950 | 4.1 | 1.27 | 1.5kW, Y90S‑2‑H | ||
| 4 | 32CWZ‑4 | 4 | 33 | 2950 | 4.1 | 1.87 | 2.2kW, Y90L‑2‑H |
| 8 | 30 | 2950 | 4.1 | 1.87 | 2.2kW, Y90L‑2‑H | ||
| 9.6 | 26 | 2950 | 4.1 | 1.87 | 2.2kW, Y90L‑2‑H | ||
| 5 | 32CWZ‑3 | 4 | 46.2 | 2950 | 4.1 | 3.4 | 4kW, Y112M‑2‑H |
| 8 | 42 | 2950 | 4.1 | 3.4 | 4kW, Y112M‑2‑H | ||
| 9.6 | 36.5 | 2950 | 4.1 | 3.4 | 4kW, Y112M‑2‑H | ||
| 6 | 32CWZ‑2 | 2.5 | 55 | 2950 | 4.1 | 3.4 | 4kW, Y112M‑2‑H |
| 5 | 50 | 2950 | 4.1 | 3.4 | 4kW, Y112M‑2‑H | ||
| 6 | 43.5 | 2950 | 4.1 | 3.4 | 4kW, Y112M‑2‑H | ||
| 7 | 40CWZ‑6 | 6 | 23.7 | 2950 | 4.1 | 1.87 | 2.2kW, Y90L‑2‑H |
| 12 | 21 | 2950 | 4.1 | 1.87 | 2.2kW, Y90L‑2‑H | ||
| 14.4 | 19.5 | 2950 | 4.1 | 1.87 | 2.2kW, Y90L‑2‑H | ||
| 8 | 40CWZ‑5 | 6 | 33 | 2950 | 4.1 | 2.55 | 3kW, Y100L‑2‑H |
| 12 | 30 | 2950 | 4.1 | 2.55 | 3kW, Y100L‑2‑H | ||
| 14.4 | 26 | 2950 | 4.1 | 2.55 | 3kW, Y100L‑2‑H | ||
| 9 | 40CWZ‑4 | 6 | 46.2 | 2950 | 4.1 | 3.4 | 4kW, Y112M‑2‑H |
| 12 | 42 | 2950 | 4.1 | 3.4 | 4kW, Y112M‑2‑H | ||
| 14.4 | 36.5 | 2950 | 4.1 | 3.4 | 4kW, Y112M‑2‑H | ||
| 10 | 40CWZ‑3 | 3.0 | 35 | 2950 | 4.1 | 1.87 | 2.2kW, Y90L‑2‑H |
| 6.2 | 32 | 2950 | 4.1 | 1.87 | 2.2kW, Y90L‑2‑H | ||
| 7.5 | 27.5 | 2950 | 4.1 | 1.87 | 2.2kW, Y90L‑2‑H | ||
| 11 | 50CWZ‑8 | 10.5 | 23.7 | 2950 | 4.1 | 2.55 | 3kW, Y100L‑2‑H |
| 21 | 21 | 2950 | 4.1 | 2.55 | 3kW, Y100L‑2‑H | ||
| 25.2 | 19.5 | 2950 | 4.1 | 2.55 | 3kW, Y100L‑2‑H | ||
| 12 | 50CWZ‑6 | 10.5 | 33 | 2950 | 4.1 | 3.4 | 4kW, Y112M‑2‑H |
| 21 | 30 | 2950 | 4.1 | 3.4 | 4kW, Y112M‑2‑H | ||
| 25.2 | 26 | 2950 | 4.1 | 3.4 | 4kW, Y112M‑2‑H | ||
| 13 | 50CWZ‑5 | 10.5 | 46 | 2950 | 5.1 | 4.67 | 5.5kW, Y132S₁‑2‑H |
| 21 | 42 | 2950 | 5.1 | 4.67 | 5.5kW, Y132S₁‑2‑H | ||
| 25.2 | 36.5 | 2950 | 5.1 | 4.67 | 5.5kW, Y132S₁‑2‑H | ||
| 14 | 65CWZ‑11 | 18 | 23.7 | 2950 | 4.1 | 3.4 | 4kW, Y112M‑2‑H |
| 36 | 21 | 2950 | 4.1 | 3.4 | 4kW, Y112M‑2‑H | ||
| 43.2 | 19.5 | 2950 | 4.1 | 3.4 | 4kW, Y112M‑2‑H | ||
| 15 | 65CWZ‑8 | 18 | 33 | 2950 | 5.1 | 4.25 | 5.5kW, Y132S₁‑2‑H |
| 36 | 30 | 2950 | 5.1 | 4.25 | 5.5kW, Y132S₁‑2‑H | ||
| 43.2 | 26 | 2950 | 5.1 | 4.25 | 5.5kW, Y132S₁‑2‑H | ||
| 16 | 65CWZ‑6 | 18 | 46 | 2950 | 5.1 | 9.35 | 11kW, Y160M₁‑2‑H |
| 36 | 42 | 2950 | 5.1 | 9.35 | 11kW, Y160M₁‑2‑H | ||
| 43.2 | 36.5 | 2950 | 5.1 | 9.35 | 11kW, Y160M₁‑2‑H | ||
| 17 | 65CWZ‑5 | 18 | 66 | 2950 | 5.1 | 12.75 | 15kW, Y160M₂‑2‑H |
| 36 | 60 | 2950 | 5.1 | 12.75 | 15kW, Y160M₂‑2‑H | ||
| 43.2 | 52 | 2950 | 5.1 | 12.75 | 15kW, Y160M₂‑2‑H | ||
| 18 | 65CWZ‑4.5 | 12.5 | 55 | 2950 | 4.1 | 6.37 | 7.5kW, Y132S₂‑2‑H |
| 25 | 50 | 2950 | 4.1 | 6.37 | 7.5kW, Y132S₂‑2‑H | ||
| 30 | 43.5 | 2950 | 4.1 | 6.37 | 7.5kW, Y132S₂‑2‑H | ||
| 19 | 65CWZ‑3 | 10 | 77 | 2950 | 4.1 | 9.35 | 11kW, Y160M₁‑2‑H |
| 20 | 70 | 2950 | 4.1 | 9.35 | 11kW, Y160M₁‑2‑H | ||
| 24 | 60 | 2950 | 4.1 | 9.35 | 11kW, Y160M₁‑2‑H | ||
| 20 | 80CWZ‑14 | 30 | 23.7 | 2950 | 5.1 | 6.37 | 7.5kW, Y132S₂‑2‑H |
| 60 | 21 | 2950 | 5.1 | 6.37 | 7.5kW, Y132S₂‑2‑H | ||
| 72 | 19.5 | 2950 | 5.1 | 6.37 | 7.5kW, Y132S₂‑2‑H | ||
| 21 | 80CWZ‑11 | 30 | 33 | 2950 | 4.1 | 9.35 | 11kW, Y160M₁‑2‑H |
| 60 | 30 | 2950 | 4.1 | 9.35 | 11kW, Y160M₁‑2‑H | ||
| 72 | 26 | 2950 | 4.1 | 9.35 | 11kW, Y160M₁‑2‑H | ||
| 22 | 80CWZ‑8 | 30 | 46.2 | 2950 | 5.1 | 12.75 | 15kW, Y160M₂‑2‑H |
| 60 | 42 | 2950 | 5.1 | 12.75 | 15kW, Y160M₂‑2‑H | ||
| 72 | 36.5 | 2950 | 5.1 | 12.75 | 15kW, Y160M₂‑2‑H | ||
| 23 | 80CWZ‑7 | 30 | 60.5 | 2950 | 4.1 | 15.7 | 18.5kW,Y160L‑2‑H |
| 60 | 55 | 2950 | 4.1 | 15.7 | 18.5kW,Y160L‑2‑H | ||
| 72 | 47.8 | 2950 | 4.1 | 15.7 | 18.5kW,Y160L‑2‑H | ||
| 24 | 80CWZ‑6 | 30 | 66 | 2950 | 5.1 | 18.7 | 22kW, Y180M‑2‑H |
| 60 | 60 | 2950 | 5.1 | 18.7 | 22kW, Y180M‑2‑H | ||
| 72 | 52 | 2950 | 5.1 | 18.7 | 22kW, Y180M‑2‑H | ||
| 25 | 80CWZ‑5.7 | 30 | 77 | 2950 | 4.1 | 18.7 | 22kW,Y180M‑2‑H |
| 60 | 70 | 2950 | 4.1 | 18.7 | 22kW,Y180M‑2‑H | ||
| 72 | 60.8 | 2950 | 4.1 | 18.7 | 22kW,Y180M‑2‑H | ||
| 26 | 80CWZ‑5.5 | 30 | 82.5 | 2950 | 5.1 | 25.5 | 30kW, Y200L₁‑2‑H |
| 60 | 75 | 2950 | 5.1 | 25.5 | 30kW, Y200L₁‑2‑H | ||
| 72 | 65 | 2950 | 5.1 | 25.5 | 30kW, Y200L₁‑2‑H | ||
| 27 | 80CWZ‑4 | 30 | 137.5 | 2950 | 4.1 | 63.7 | 75kW,Y280S‑2‑H |
| 60 | 125 | 2950 | 4.1 | 63.7 | 75kW,Y280S‑2‑H | ||
| 72 | 108 | 2950 | 4.1 | 63.7 | 75kW,Y280S‑2‑H | ||
| 28 | 80CWZ‑3 | 24 | 71.5 | 2950 | 5.1 | 15.7 | 18.5kW,Y160L‑2‑H |
| 48 | 65 | 2950 | 5.1 | 15.7 | 18.5kW,Y160L‑2‑H | ||
| 57.6 | 56.5 | 2950 | 5.1 | 15.7 | 18.5kW,Y160L‑2‑H | ||
| 29 | 100CWZ‑18 | 50 | 23.7 | 2950 | 5.1 | 9.35 | 11kW, Y160M₁‑2‑H |
| 100 | 21 | 2950 | 5.1 | 9.35 | 11kW, Y160M₁‑2‑H | ||
| 120 | 19.5 | 2950 | 5.1 | 9.35 | 11kW, Y160M₁‑2‑H | ||
| 30 | 100CWZ‑15 | 60 | 33 | 2950 | 5.1 | 15.7 | 18.5kW,Y160L‑2‑H |
| 120 | 30 | 2950 | 5.1 | 15.7 | 18.5kW,Y160L‑2‑H | ||
| 144 | 26 | 2950 | 5.1 | 15.7 | 18.5kW,Y160L‑2‑H | ||
| 31 | 100CWZ‑14 | 50 | 33 | 2950 | 5.1 | 12.75 | 15kW, Y160M2‑2‑H |
| 100 | 30 | 2950 | 5.1 | 12.75 | 15kW, Y160M2‑2‑H | ||
| 120 | 26 | 2950 | 5.1 | 12.75 | 15kW, Y160M2‑2‑H | ||
| 32 | 100CWZ‑11 | 50 | 46 | 2950 | 5.1 | 18.7 | 22kW, Y180M‑2‑H |
| 100 | 42 | 2950 | 5.1 | 18.7 | 22kW, Y180M‑2‑H | ||
| 120 | 36.5 | 2950 | 5.1 | 18.7 | 22kW, Y180M‑2‑H | ||
| 33 | 100CWZ‑9 | 60 | 63.8 | 2950 | 5.1 | 31.5 | 37kW,Y200L2‑2‑H |
| 120 | 58 | 2950 | 5.1 | 31.5 | 37kW,Y200L2‑2‑H | ||
| 144 | 50 | 2950 | 5.1 | 31.5 | 37kW,Y200L2‑2‑H | ||
| 34 | 100CWZ‑8 | 50 | 66 | 2950 | 5.1 | 25.5 | 30kW, Y200L₁‑2‑H |
| 100 | 60 | 2950 | 5.1 | 25.5 | 30kW, Y200L₁‑2‑H | ||
| 120 | 52 | 2950 | 5.1 | 25.5 | 30kW, Y200L₁‑2‑H | ||
| 35 | 100CWZ‑7 | 30 | 104 | 2950 | 5.1 | 31.5 | 37kW,Y200L2‑2‑H |
| 60 | 95 | 2950 | 5.1 | 31.5 | 37kW,Y200L2‑2‑H | ||
| 72 | 82.5 | 2950 | 5.1 | 31.5 | 37kW,Y200L2‑2‑H | ||
| 36 | 100CWZ‑6.5 | 25 | 55 | 2950 | 5.1 | 12.7 | 15kW, Y160M‑2‑H |
| 50 | 50 | 2950 | 5.1 | 12.7 | 15kW, Y160M‑2‑H | ||
| 60 | 43.5 | 2950 | 5.1 | 12.7 | 15kW, Y160M‑2‑H | ||
| 37 | 100CWZ‑6.2 | 50 | 101.2 | 2950 | 5.1 | 38.3 | 45kW, Y225M‑2‑H |
| 100 | 92 | 2950 | 5.1 | 38.3 | 45kW, Y225M‑2‑H | ||
| 120 | 80 | 2950 | 5.1 | 38.3 | 45kW, Y225M‑2‑H | ||
| 38 | 100CWZ‑6 | 50 | 93.5 | 2950 | 5.1 | 38.25 | 45kW, Y225M‑2‑H |
| 100 | 85 | 2950 | 5.1 | 38.25 | 45kW, Y225M‑2‑H | ||
| 120 | 74 | 2950 | 5.1 | 38.25 | 45kW, Y225M‑2‑H | ||
| 39 | 125CWZ‑23.5 | 80 | 22 | 2950 | 5.1 | 15.7 | 18.5kW,Y160L‑2‑H |
| 160 | 20 | 2950 | 5.1 | 15.7 | 18.5kW,Y160L‑2‑H | ||
| 192 | 17.4 | 2950 | 5.1 | 15.7 | 18.5kW,Y160L‑2‑H | ||
| 40 | 125CWZ‑23.5A | 72 | 17.6 | 2950 | 5.1 | 12.7 | 15kW, Y160M‑2‑H |
| 143 | 16 | 2950 | 5.1 | 12.7 | 15kW, Y160M‑2‑H | ||
| 172 | 14 | 2950 | 5.1 | 12.7 | 15kW, Y160M‑2‑H | ||
| 41 | 125CWZ‑19 | 100 | 35.2 | 2950 | 5.1 | 31.5 | 37kW,Y200L2‑2‑H |
| 200 | 32 | 2950 | 5.1 | 31.5 | 37kW,Y200L2‑2‑H | ||
| 240 | 28 | 2950 | 5.1 | 31.5 | 37kW,Y200L2‑2‑H | ||
| 42 | 125CWZ‑16.5 | 80 | 35.2 | 2950 | 5.1 | 25.5 | 30kW, Y200L₁‑2‑H |
| 160 | 32 | 2950 | 5.1 | 25.5 | 30kW, Y200L₁‑2‑H | ||
| 192 | 27.5 | 2950 | 5.1 | 25.5 | 30kW, Y200L₁‑2‑H | ||
| 43 | 125CWZ‑16.5A | 75 | 30.8 | 2950 | 5.1 | 18.7 | 22kW, Y180M‑2‑H |
| 150 | 28 | 2950 | 5.1 | 18.7 | 22kW, Y180M‑2‑H | ||
| 180 | 24.3 | 2950 | 5.1 | 18.7 | 22kW, Y180M‑2‑H | ||
| 44 | 125CWZ‑9 | 60 | 66 | 2950 | 5.1 | 31.5 | 37kW,Y200L2‑2‑H |
| 120 | 60 | 2950 | 5.1 | 31.5 | 37kW,Y200L2‑2‑H | ||
| 144 | 52 | 2950 | 5.1 | 31.5 | 37kW,Y200L2‑2‑H | ||
| 45 | 125CWZ‑8 | 75 | 77 | 2950 | 5.1 | 46.7 | 55kW, Y250M‑2‑H |
| 150 | 70 | 2950 | 5.1 | 46.7 | 55kW, Y250M‑2‑H | ||
| 180 | 61 | 2950 | 5.1 | 46.7 | 55kW, Y250M‑2‑H | ||
| 46 | 150CWZ‑15 | 125 | 22 | 1450 | 5.1 | 25.5 | 30kW,Y200L‑4‑H |
| 250 | 20 | 1450 | 5.1 | 25.5 | 30kW,Y200L‑4‑H | ||
| 300 | 17.4 | 1450 | 5.1 | 25.5 | 30kW,Y200L‑4‑H | ||
| 47 | 150CWZ‑13 | 100 | 22 | 1450 | 5.1 | 18.7 | 22kW, Y180L‑4‑H |
| 200 | 20 | 1450 | 5.1 | 18.7 | 22kW, Y180L‑4‑H | ||
| 240 | 17.4 | 1450 | 5.1 | 18.7 | 22kW, Y180L‑4‑H | ||
| 48 | 150CWZ‑9 | 100 | 33 | 1450 | 5.1 | 31.5 | 37kW,Y225S‑4‑H |
| 200 | 30 | 1450 | 5.1 | 31.5 | 37kW,Y225S‑4‑H | ||
| 240 | 26 | 1450 | 5.1 | 31.5 | 37kW,Y225S‑4‑H | ||
| 49 | 150CWZ‑7 | 100 | 49.5 | 1450 | 5.1 | 38.3 | 45kW,Y225M‑4‑H |
| 200 | 45 | 1450 | 5.1 | 38.3 | 45kW,Y225M‑4‑H | ||
| 240 | 39 | 1450 | 5.1 | 38.3 | 45kW,Y225M‑4‑H | ||
| 50 | 150CWZ‑3.5 | 55 | 88 | 1450 | 5.1 | 46.7 | 55kW,Y250M‑4‑H |
| 110 | 80 | 1450 | 5.1 | 46.7 | 55kW,Y250M‑4‑H | ||
| 132 | 69.5 | 1450 | 5.1 | 46.7 | 55kW,Y250M‑4‑H | ||
| 51 | 200CWZ‑23.5 | 200 | 22 | 1450 | 5.1 | 38.3 | 45kW,Y225M‑4‑H |
| 400 | 20 | 1450 | 5.1 | 38.3 | 45kW,Y225M‑4‑H | ||
| 480 | 17.4 | 1450 | 5.1 | 38.3 | 45kW,Y225M‑4‑H | ||
| 52 | 200CWZ‑16 | 125 | 19.2 | 1450 | 5.1 | 18.7 | 22kW, Y180L‑4‑H |
| 250 | 17.5 | 1450 | 5.1 | 18.7 | 22kW, Y180L‑4‑H | ||
| 300 | 15.2 | 1450 | 5.1 | 18.7 | 22kW, Y180L‑4‑H | ||
| 53 | 200CWZ‑15 | 125 | 15.4 | 1450 | 5.1 | 15.7 | 18.5kW,Y180M‑4‑H |
| 250 | 14 | 1450 | 5.1 | 15.7 | 18.5kW,Y180M‑4‑H | ||
| 300 | 12 | 1450 | 5.1 | 15.7 | 18.5kW,Y180M‑4‑H | ||
| 54 | 250CWZ‑22 | 275 | 21.5 | 1450 | 5.5 | 46.7 | 55kW,Y250M‑4‑H |
| 550 | 20 | 1450 | 5.5 | 46.7 | 55kW,Y250M‑4‑H | ||
| 660 | 17 | 1450 | 5.5 | 46.7 | 55kW,Y250M‑4‑H | ||
| 55 | 250CWZ‑18 | 275 | 34.5 | 1450 | 5.5 | 76.5 | 90kW,Y280M‑4‑H |
| 550 | 32 | 1450 | 5.5 | 76.5 | 90kW,Y280M‑4‑H | ||
| 660 | 27.2 | 1450 | 5.5 | 76.5 | 90kW,Y280M‑4‑H |

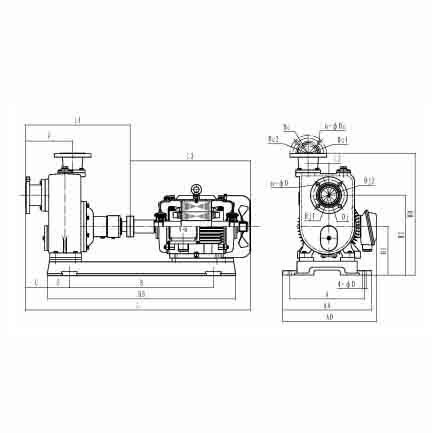

Outline and Installation Drawing of CWZ Type Marine Horizontal Self‑priming Centrifugal Pump
Installation Dimension Table
表格
| MODEL | L1 | F | C | E | B | BB | L | L2 | A | AA | AD |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 25CWZ‑3 | 364 | 170 | 77.4 | 132.5 | 285 | 550 | 698 | 331 | 270 | 320 | 320 |
| 32CWZ‑25 | 364 | 170 | 77.44 | 132.5 | 285 | 550 | 698 | 331 | 270 | 320 | 320 |
| 32CWZ‑5 | 364 | 167 | 73 | 85 | 380 | 550 | 702 | 336 | 270 | 320 | 320 |
| 32CWZ‑4 | 364 | 167 | 73 | 85 | 380 | 550 | 702 | 336 | 270 | 320 | 320 |
| 32CWZ‑3 | 391.5 | 175 | 65.5 | 120 | 410 | 650 | 800 | 406 | 305 | 360 | 360 |
| 32CWZ‑2 | 391.5 | 175 | 65.5 | 120 | 410 | 650 | 800 | 406 | 305 | 360 | 360 |
| 40CWZ‑6 | 364 | 170 | 77.4 | 132.5 | 310 | 575 | 723 | 356 | 270 | 320 | 320 |
| 40CWZ‑5 | 364 | 170 | 77.4 | 132.5 | 310 | 575 | 723 | 356 | 270 | 320 | 320 |
| 40CWZ‑4 | 364 | 170 | 77.4 | 132.5 | 310 | 575 | 723 | 356 | 270 | 320 | 320 |
| 40CWZ‑3 | 364 | 170 | 77.4 | 132.5 | 310 | 575 | 723 | 356 | 270 | 320 | 320 |
| 50CWZ‑8 | 485.5 | 189.5 | 71.5 | 170 | 500 | 840 | 970.5 | 483 | 350 | 420 | 442 |
| 50CWZ‑6 | 485.5 | 189.5 | 71.5 | 170 | 500 | 840 | 970.5 | 483 | 350 | 420 | 442 |
| 50CWZ‑5 | 485.5 | 189.5 | 71.5 | 170 | 500 | 840 | 970.5 | 483 | 350 | 420 | 442 |
| 65CWZ‑11 | 485.5 | 189.5 | 71.5 | 170 | 500 | 840 | 970.5 | 483 | 350 | 420 | 442 |
| 65CWZ‑8 | 485.5 | 189.5 | 71.5 | 170 | 500 | 840 | 970.5 | 483 | 350 | 420 | 442 |
| 65CWZ‑6 | 485.5 | 189.5 | 71.5 | 170 | 500 | 840 | 970.5 | 483 | 350 | 420 | 442 |
| 65CWZ‑5 | 485.5 | 189.5 | 71.5 | 170 | 500 | 840 | 970.5 | 483 | 350 | 420 | 442 |
| 65CWZ‑4.5 | 485.5 | 189.5 | 71.5 | 170 | 500 | 840 | 970.5 | 483 | 350 | 420 | 442 |
| 65CWZ‑3 | 485.5 | 191.5 | 72 | 106 | 724 | 936 | 1095 | 607.5 | 378 | 450 | 466.5 |
| 80CWZ‑14 | 352 | 235 | 101 | 117.5 | 725 | 960 | 1190 | 654 | 420 | 500 | 500 |
| 80CWZ‑11 | 352 | 235 | 101 | 117.5 | 725 | 960 | 1190 | 654 | 420 | 500 | 500 |
| 80CWZ‑8 | 352 | 235 | 101 | 117.5 | 725 | 960 | 1190 | 654 | 420 | 500 | 500 |
| 80CWZ‑7 | 352 | 235 | 101 | 117.5 | 725 | 960 | 1190 | 654 | 420 | 500 | 500 |
| 80CWZ‑6 | 535 | 222 | 104 | 84 | 840 | 1008 | 1212 | 675 | 420 | 470 | 496 |
| 80CWZ‑5.7 | 535 | 222 | 104 | 84 | 840 | 1008 | 1212 | 675 | 420 | 470 | 496 |
| 80CWZ‑5.5 | 535 | 222 | 104 | 84 | 840 | 1008 | 1212 | 675 | 420 | 470 | 496 |
| 80CWZ‑4 | 620 | 283 | 145 | 169.5 | 900 | 1239 | 1633 | 1011 | 500 | 550 | 693 |
| 80CWZ‑3 | 487 | 193 | 73.5 | 106 | 724 | 936 | 1041 | 652 | 378 | 450 | 467 |
| 100CWZ‑18 | 547 | 252 | 109 | 115 | 730 | 960 | 1202 | 654 | 360 | 400 | 442 |
| 100CWZ‑15 | 547 | 252 | 109 | 115 | 730 | 960 | 1202 | 654 | 360 | 400 | 442 |
| 100CWZ‑14 | 547 | 252 | 109 | 115 | 730 | 960 | 1202 | 654 | 360 | 400 | 442 |
| 100CWZ‑11 | 547 | 252 | 109 | 115 | 730 | 960 | 1202 | 654 | 360 | 400 | 442 |
| 100CWZ‑9 | 532 | 241 | 95 | 103.5 | 850 | 1057 | 1308 | 777 | 460 | 510 | 562 |
| 100CWZ‑8 | 532 | 241 | 95 | 103.5 | 850 | 1057 | 1308 | 777 | 460 | 510 | 562 |
| 100CWZ‑7 | 603 | 262 | 105 | 103 | 915 | 1120 | 1382 | 777 | 460 | 510 | 562 |
| 100CWZ‑6.5 | 352 | 235 | 1008 | 117 | 725 | 960 | 1146 | 610 | 420 | 500 | 500 |
| 100CWZ‑6.2 | 603 | 262 | 105 | 127 | 915 | 1168 | 1468 | 863 | 500 | 560 | 625 |
| 100CWZ‑6 | 603 | 262 | 105 | 127 | 915 | 1168 | 1468 | 863 | 500 | 560 | 625 |
| 125CWZ‑23.5 | 647 | 252 | 109 | 115 | 730 | 960 | 1202 | 654 | 360 | 400 | 441 |
| 125CWZ‑23.5A | 567 | 252 | 109 | 115 | 730 | 960 | 1158 | 610 | 360 | 600 | 442 |
| 125CWZ‑16.5 | 671 | 307 | 166 | 175 | 750 | 1100 | 1449 | 777 | 450 | 510 | 562 |
| 125CWZ‑16.5A | 671 | 307 | 166 | 175 | 750 | 1100 | 1449 | 777 | 450 | 510 | 562 |
| 125CWZ‑9 | 532 | 241 | 95 | 104 | 850 | 1057 | 1309 | 777 | 460 | 510 | 562 |
| 125CWZ‑8 | 604 | 262 | 118 | 220 | 780 | 1220 | 1548 | 943 | 580 | 670 | 708 |
| 150CWZ‑15 | 771 | 329 | 151 | 129 | 960 | 1217 | 1552 | 779 | 340 | 391 | 507 |
| 150CWZ‑13 | 771 | 329 | 151 | 129 | 960 | 1217 | 1552 | 779 | 340 | 391 | 507 |
| 150CWZ‑9 | 909 | 342 | 152 | 160 | 1080 | 1400 | 1782 | 873 | 420 | 465 | 563 |
| 150CWZ‑7 | 964 | 389 | 172 | 139 | 1200 | 1477 | 1863 | 898 | 540 | 580 | 605.5 |
| 150CWZ‑3.5 | 987 | 411 | 157 | 200 | 1200 | 1560 | 1940 | 952 | 640 | 680 | 680 |
| 200CWZ‑23.5 | 930 | 362 | 155 | 167 | 1080 | 1417 | 1803 | 873 | 420 | 465 | 563 |
| 200CWZ‑16 | 771 | 329 | 151 | 142 | 900 | 1180 | 1496 | 723 | 330 | 375 | 459 |
| 200CWZ‑15 | 767 | 345 | 147 | 141 | 860 | 1141 | 1452 | 685 | 320 | 375 | 458 |
| 250CWZ‑22 | 1027 | 404 | 146 | 200 | 1208 | 1608 | 1979 | 948 | 470 | 510 | 598 |
| 250CWZ‑18 | 1107 | 492 | 168 | 200 | 1365 | 1765 | 2180 | 1068 | 560 | 615 | 688 |
Flange and Structure Dimension Table
表格
| MODEL | H2 | HD | Dj | Dj1 | Dj32 | Dj3 | N‑D | L3 | N‑Dd | Dc |
|---|---|---|---|---|---|---|---|---|---|---|
| 25CWZ‑3 | 276 | 414 | 1155 | 85 | 65 | 25 | 4‑φ14 | 80.5 | 4‑φ18 | 25 |
| 32CWZ‑25 | 276 | 414 | 1405 | 100 | 76 | 32 | 4‑φ18 | 80.5 | 4‑φ18 | 32 |
| 32CWZ‑5 | 276 | 409 | 140 | 100 | 76 | 32 | 4‑φ18 | 64.4 | 4‑φ18 | 32 |
| 32CWZ‑4 | 276 | 409 | 140 | 100 | 76 | 32 | 4‑φ18 | 64.4 | 4‑φ18 | 32 |
| 32CWZ‑3 | 363 | 507 | 140 | 100 | 76 | 32 | 4‑φ18 | 97 | 4‑φ18 | 32 |
| 32CWZ‑2 | 363 | 507 | 140 | 100 | 76 | 32 | 4‑φ18 | 97 | 4‑φ18 | 32 |
| 40CWZ‑6 | 276 | 414 | 150 | 110 | 84 | 40 | 4‑φ18 | 80.5 | 4‑φ18 | 40 |
| 40CWZ‑5 | 276 | 414 | 150 | 110 | 84 | 40 | 4‑φ18 | 80.5 | 4‑φ18 | 40 |
| 40CWZ‑4 | 276 | 414 | 150 | 110 | 84 | 40 | 4‑φ18 | 80.5 | 4‑φ18 | 40 |
| 40CWZ‑3 | 276 | 414 | 150 | 110 | 84 | 40 | 4‑φ18 | 80.5 | 4‑φ18 | 40 |
| 50CWZ‑8 | 386 | 558 | 165 | 125 | 99 | 50 | 4‑φ18 | 0 | 4‑φ18 | 50 |
| 50CWZ‑6 | 386 | 558 | 165 | 125 | 99 | 50 | 4‑φ18 | 0 | 4‑φ18 | 50 |
| 50CWZ‑5 | 386 | 558 | 165 | 125 | 99 | 50 | 4‑φ18 | 0 | 4‑φ18 | 50 |
| 65CWZ‑11 | 386 | 558 | 185 | 145 | 118 | 65 | 4‑φ18 | 101 | 4‑φ18 | 65 |
| 65CWZ‑8 | 386 | 558 | 185 | 145 | 118 | 65 | 4‑φ18 | 101 | 4‑φ18 | 65 |
| 65CWZ‑6 | 386 | 558 | 185 | 145 | 118 | 65 | 4‑φ18 | 101 | 4‑φ18 | 65 |
| 65CWZ‑5 | 386 | 558 | 185 | 145 | 118 | 65 | 4‑φ18 | 101 | 4‑φ18 | 65 |
| 65CWZ‑4.5 | 386 | 558 | 185 | 145 | 118 | 65 | 4‑φ18 | 101 | 4‑φ18 | 65 |
| 65CWZ‑3 | 407 | 595 | 185 | 145 | 118 | 65 | 4‑φ18 | 119 | 4‑φ18 | 65 |
| 80CWZ‑14 | 400 | 620 | 200 | 160 | 132 | 80 | 8‑φ18 | 105 | 4‑φ18 | 80 |
| 80CWZ‑11 | 400 | 620 | 200 | 160 | 132 | 80 | 8‑φ18 | 105 | 4‑φ18 | 80 |
| 80CWZ‑8 | 400 | 620 | 200 | 160 | 132 | 80 | 8‑φ18 | 105 | 4‑φ18 | 80 |
| 80CWZ‑7 | 400 | 620 | 200 | 160 | 132 | 80 | 8‑φ18 | 105 | 4‑φ18 | 80 |
| 80CWZ‑6 | 447 | 651 | 200 | 160 | 132 | 80 | 8‑φ18 | 119 | 4‑φ22 | 80 |
| 80CWZ‑5.7 | 447 | 651 | 200 | 160 | 132 | 80 | 8‑φ18 | 119 | 4‑φ22 | 80 |
| 80CWZ‑5.5 | 447 | 651 | 200 | 160 | 132 | 80 | 8‑φ18 | 119 | 4‑φ22 | 80 |
| 80CWZ‑4 | 680 | 885 | 200 | 160 | 132 | 80 | 8‑φ18 | 160 | 4‑φ22 | 80 |
| 80CWZ‑3 | 407 | 595 | 200 | 160 | 132 | 80 | 8‑φ18 | 119 | 4‑φ22 | 80 |
| 100CWZ‑18 | 400 | 607 | 220 | 180 | 156 | 100 | 8‑φ18 | 103 | 4‑φ22 | 100 |
| 100CWZ‑15 | 400 | 607 | 220 | 180 | 156 | 100 | 8‑φ18 | 103 | 4‑φ22 | 100 |
| 100CWZ‑14 | 400 | 607 | 220 | 180 | 156 | 100 | 8‑φ18 | 103 | 4‑φ22 | 100 |
| 100CWZ‑11 | 400 | 607 | 220 | 180 | 156 | 100 | 8‑φ18 | 103 | 4‑φ22 | 100 |
| 100CWZ‑9 | 494 | 707 | 220 | 180 | 156 | 100 | 8‑φ18 | 105 | 4‑φ22 | 100 |
| 100CWZ‑8 | 494 | 707 | 220 | 180 | 156 | 100 | 8‑φ18 | 105 | 4‑φ22 | 100 |
| 100CWZ‑7 | 510 | 714 | 220 | 180 | 156 | 100 | 8‑φ18 | 127 | 4‑φ22 | 100 |
| 100CWZ‑6.5 | 400 | 620 | 220 | 180 | 156 | 100 | 8‑φ18 | 105 | 4‑φ22 | 100 |
| 100CWZ‑6.2 | 510 | 714 | 220 | 180 | 156 | 100 | 8‑φ18 | 127 | 4‑φ22 | 100 |
| 100CWZ‑6 | 510 | 714 | 220 | 180 | 156 | 100 | 8‑φ18 | 127 | 4‑φ22 | 100 |
| 125CWZ‑23.5 | 400 | 607 | 250 | 210 | 184 | 125 | 8‑φ18 | 103 | 4‑φ22 | 125 |
| 125CWZ‑23.5A | 400 | 607 | 250 | 210 | 184 | 125 | 8‑φ18 | 103 | 4‑φ22 | 125 |
| 125CWZ‑16.5 | 450 | 680 | 250 | 210 | 184 | 125 | 8‑φ18 | 104 | 4‑φ22 | 125 |
| 125CWZ‑16.5A | 450 | 680 | 250 | 210 | 184 | 125 | 8‑φ18 | 104 | 4‑φ22 | 125 |
| 125CWZ‑9 | 494 | 708 | 250 | 210 | 184 | 125 | 8‑φ18 | 105 | 4‑φ22 | 125 |
| 125CWZ‑8 | 574 | 777.5 | 250 | 210 | 184 | 125 | 8‑φ18 | 127 | 4‑φ22 | 125 |
| 150CWZ‑15 | 550 | 833 | 285 | 240 | 211 | 150 | 8‑φ22 | 97.5 | 4‑φ22 | 150 |
| 150CWZ‑13 | 550 | 833 | 285 | 240 | 211 | 150 | 8‑φ22 | 97.5 | 4‑φ22 | 150 |
| 150CWZ‑9 | 685 | 959 | 285 | 240 | 211 | 150 | 8‑φ22 | 174 | 4‑φ22 | 150 |
| 150CWZ‑7 | 782 | 1061 | 285 | 240 | 211 | 150 | 8‑φ22 | 231 | 4‑φ22 | 150 |
| 150CWZ‑3.5 | 930 | 1206 | 285 | 240 | 211 | 150 | 8‑φ22 | 282 | 4‑φ22 | 150 |
| 200CWZ‑23.5 | 685 | 959 | 340 | 295 | 266 | 200 | 8‑φ22 | 174 | 4‑φ22 | 200 |
| 200CWZ‑16 | 550 | 833 | 340 | 295 | 266 | 200 | 8‑φ22 | 97.5 | 4‑φ22 | 200 |
| 200CWZ‑15 | 555 | 833 | 340 | 295 | 266 | 200 | 8‑φ22 | 118 | 4‑φ22 | 200 |
| 250CWZ‑22 | 385 | 971 | 395 | 350 | 319 | 250 | 12‑φ22 | 183 | 4‑φ22 | 250 |
| 250CWZ‑18 | 490 | 1173 | 395 | 350 | 319 | 250 | 12‑φ22 | 226 | 4‑φ22 | 250 |
Note: The description may be different with the product, please contact us for quotation.
Click here to contact us via whatsapp for details
Tag: Our other products
