Marine Horizontal Centrifugal Pumps – Technical Specifications
Product Overview
The CF5-7 is a marine-grade Marine Horizontal Centrifugal Pumps designed for wastewater and oil handling applications. It complies with CB/T 3792-1996 technical standards for marine sewage crushing pumps.
Key Applications
✔ Sewage Processing – Crushes and transports soft organic waste in:
-
Shipboard domestic sewage (≤85°C / 185°F)
-
Post-grinding particles ≤5mm
✔ Marine Fuel Handling – Processes:
-
Low-temperature solidified heavy oil
-
Pre-treatment for atomization
Performance Features
-
Max. Fluid Temperature: 85°C (185°F)
-
Max. Particle Size After Grinding: 5mm
-
Standards Compliance: CB/T 3792-1996
-
Design: Horizontal centrifugal flow for efficient solids handling
Construction & Materials
-
Pump Type: Horizontal centrifugal
-
Sealing System: Mechanical seal (standard)
-
Materials: Corrosion-resistant alloys for marine environments

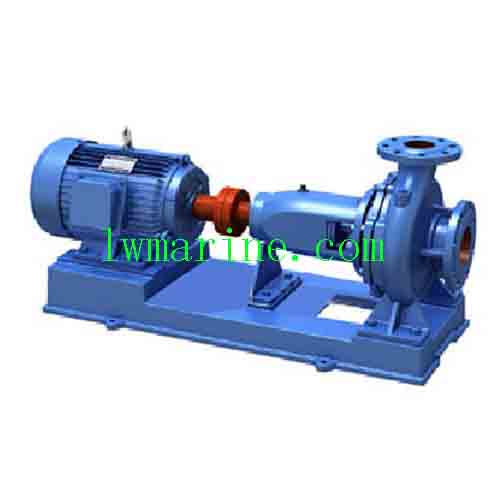

Marine Horizontal Centrifugal Pumps
Parameters:
| Model | Flow | Head | Speed | NPSH | Motor Power |
| m3/h | m | r/min | m | kW | |
| CF5-7 | 5 | 7 | 1450 | 4 | 1.5 |
| CF5-8 | 5 | 8 | 2900 | 4 | 0.75 |
| CF5-10 | 5 | 10 | 2900 | 4 | 1.1 |
| CF10-11 | 10 | 11 | 2900 | 4 | 1.5 |
| CF10-15 | 10 | 15 | 2900 | 4 | 3 |
| CF15-30 | 15 | 30 | 2900 | 4 | 5.5 |
| CF15-35 | 15 | 35 | 2900 | 4 | 7.5 |
| CF20-20 | 20 | 20 | 2900 | 4 | 3 |
| CF30-20 | 30 | 20 | 2900 | 4 | 7.5 |
| CF30-30 | 30 | 30 | 2900 | 4 | 11 |
The description/sizes may be different with goods, please check with us when order.
