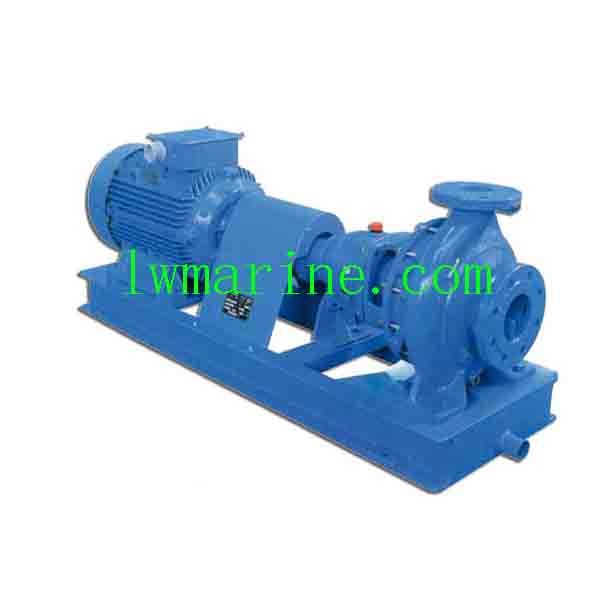

Ship Centrifugal Pumps

Ship Centrifugal Pumps for Marine Applications

1. In – Depth Operating Principle of Marine Ship Centrifugal Pumps

The ISG ship centrifugal pumps are ingeniously designed to harness the immense power of centrifugal force, which is generated through the high – speed rotation of an impeller. This fundamental principle forms the basis of their efficient fluid – pumping mechanism.

Fluid Acceleration Mechanism: When the impeller starts spinning at a high velocity, it acts like a powerful propeller, accelerating the fluid outward along the impeller vanes. This rapid acceleration of the fluid is a critical initial step in the entire pumping process, as it sets the fluid in motion and prepares it for the subsequent energy conversion.

Energy Conversion Process: The fluid that has been accelerated by the impeller is then directed through the volute casing. Inside this casing, a remarkable transformation takes place. The kinetic energy of the rapidly moving fluid is converted into pressure head. This conversion is of paramount importance because it creates the necessary pressure to propel the fluid through the complex pipeline system on the ship, ensuring a smooth and continuous flow.

Continuous Flow Creation System: The pump creates a self – sustaining continuous flow of fluid by establishing two distinct pressure zones. At the volute outlet, there is a positive discharge pressure that forcefully pushes the fluid out of the pump and into the pipeline. On the other hand, at the impeller eye (inlet), a negative pressure suction is generated, which effectively draws the fluid into the pump. This dual – pressure mechanism enables the pump to transfer fluid autonomously, eliminating the need for auxiliary priming systems. This makes the pump highly efficient and extremely reliable in the demanding marine environment, where consistent and uninterrupted fluid flow is crucial.

2. Outstanding Performance Characteristics of Marine Ship Centrifugal Pumps

Compact Vertical Design for Optimal Space Utilization in Marine Installations

In – line Configuration Advantage: The pump features an in – line configuration with uniform inlet and outlet diameters. This design simplifies the pipeline layout on the ship significantly. It makes it incredibly easy to connect the pump to the existing marine piping system, reducing installation time and potential errors.
Centerline – Aligned Ports Benefit: The ports of the pump are centerline – aligned, which allows for direct pipeline integration. This eliminates the need for additional fittings and adaptors, saving both time and cost during the installation process. It also ensures a more streamlined and efficient pipeline system on the ship.
Valve – Style Installation Efficiency: The pump can be installed in a valve – style manner, which is a space – saving solution. In ships where space is at a premium, this installation method allows for more efficient use of the available area, enabling the installation of other essential equipment without compromising on the pumping capacity.

Advanced Drive System for Smooth and Reliable Marine Operation

Motor – Extended Shaft Mounting Simplicity: The motor – extended shaft mounting eliminates the need for couplings. This reduces the number of components in the drive system, minimizing the potential for mechanical failures. It also simplifies maintenance procedures, as there are fewer parts to inspect, repair, or replace, ensuring the pump operates smoothly over an extended period.
Optimized Bearing Arrangement Stability: The bearing arrangement is optimized to balance both radial loads and axial thrust. This ensures that the pump operates evenly and smoothly, reducing wear and tear on the components. As a result, the service life of the pump is significantly extended, reducing the need for frequent replacements and saving on long – term costs.
Vibration – Damped Operation Quietness: The pump operates with a vibration velocity of less than 2.8mm/s. This vibration – damped operation reduces noise levels on the ship, creating a more comfortable working environment for the crew. It also prevents damage to the pump and the surrounding equipment, enhancing the overall reliability of the marine pumping system.

Reliability Features for Long – Term Marine Use

Long – Lasting Mechanical Seals: The standard mechanical seals of the pump have a service life of at least 5,000 operational hours, providing long – lasting protection against fluid leakage. Additionally, optional cartridge – type mechanical seals are available. These offer easier installation and replacement, further enhancing the reliability of the pump and reducing downtime during maintenance.
Weatherproof Motor Protection: The motor is equipped with IP54/55 protection, making it suitable for outdoor operation on ships. This weatherproofing eliminates the need for a separate pump house, saving space and reducing installation costs. It also protects the motor from dust, water, and other environmental factors, ensuring its reliable performance in harsh marine conditions, such as high humidity and salt – laden air.

Operational Flexibility for Diverse Marine Requirements

Modular Parallel/Series Arrangements Versatility: The pump can be arranged in modular parallel or series configurations. In parallel arrangements, the flow rate can be augmented, which is extremely useful when a higher volume of fluid needs to be pumped, such as during ballast operations on large ships. In series arrangements, the head can be multiplied, enabling the pump to overcome greater resistance in the pipeline system, such as when pumping fluids to higher elevations on the ship or against high – pressure valves.
Smart Control Integration Intelligence: The pump can be integrated with smart control systems that offer a range of features, including leak detection, overload protection, thermal monitoring, and automated safety shutdown. These features enhance the safety and efficiency of the pumping operation, preventing potential damage to the pump and the marine system as a whole. For example, the leak detection feature can quickly identify any fluid leakage, allowing for immediate repairs to prevent further damage and environmental pollution.

3. CLZ Series Vertical Centrifugal Self – Priming Marine Pumps

The China – made CLZ series vertical centrifugal self – priming marine pumps are designed with a focus on compactness, lightweight, and high self – priming functionality. These pumps are highly suitable for a variety of applications on different types of ships and warships, including ballast, fire control, and cooling of the bilge. However, it is important to note that the medium temperature should be lower than 80℃.

Type	Capacity (m³/h)	Head (m)	NPSHr (m)	Efficiency (%)
40CLZ – 2	5	60	3.5	19
40CLZ – 2A	4	54	3.5	19
40CLZ – 2B	4	38	3.5	19
50CLZ – 4.5	12.5	32	4	41
50CLZ – 4.5A	11.2	26	4	41
50CLZ – 4.5B	10	28	4	41
50CLZ – 4.5C	10	20.5	4.5	42
50CLZ – 6	20	32	4	49
50CLZ – 6A	17	28	4	49
50CLZ – 9	27	14.5	4	57
50CLZ – 9A	21	12	4	55
50CLZ – 7	12.5	20	4	51
50CLZ – 7A	10	17	4	51
50CLZ – 7B	10	14	4	50
50CLZ – 3	12.5	50	4	35
50CLZ – 3A	10	45	4	35
50CLZ – 3B	10	32	4	35
50CLZ – 4	20	50	4	42
50CLZ – 4A	17	46	4	42
50CLZ – 4B	17	36	4	42
65CLZ – 9	25	20	4	61
