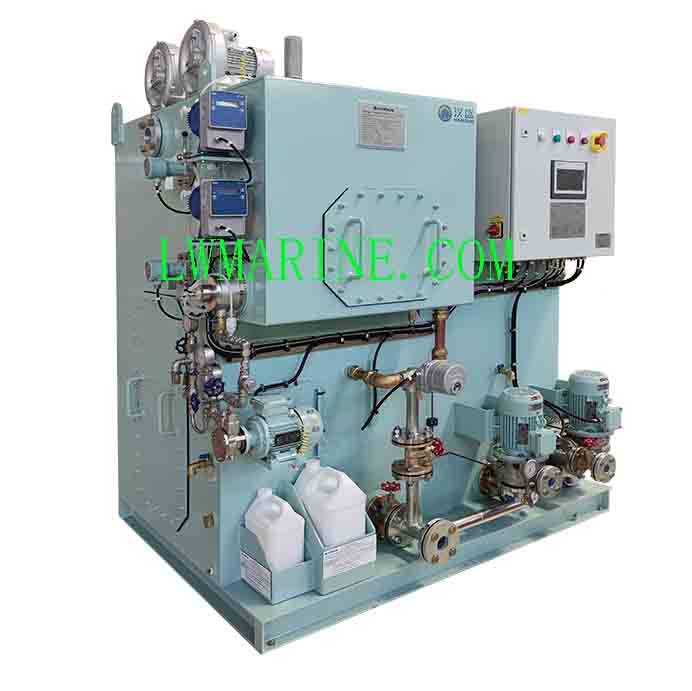

Marine Black & Grey Water Processor
Our marine black and grey water processor serves as a vital pollution prevention mechanism that strictly adheres to the rigorous IMO MEPC.159(55) standards applicable to vessels commissioned after January 1, 2010. This sophisticated biological treatment apparatus is highly proficient in handling toilet waste (black water) and can be seamlessly configured to manage galley and shower drainage (grey water) after appropriate pre-treatment.
Key Features & Significant Advantages
✔ Dual Waste Stream Processing Capacity – This system is capable of simultaneously treating both black water and pre-treated grey water, providing a one-stop solution for all marine wastewater management needs.
✔ State-of-the-Art Biological Treatment – It employs a combination of activated sludge, contact oxidation, and biofilm technologies. This multi-faceted approach ensures efficient and thorough breakdown of organic matter in the wastewater.
✔ Full Compliance with Regulatory Requirements – The system fully meets the “New Standards” set forth in MARPOL Annex IV, guaranteeing that your vessel operates within legal and environmental boundaries.
✔ UV-Based Disinfection – It utilizes a chemical-free UV disinfection process to eliminate pathogens from the treated effluent, ensuring a safer and more environmentally friendly discharge.
✔ Compact and Highly Efficient Design – The space-saving design of the system does not compromise on performance, making it an ideal choice for marine vessels where space is at a premium.
System Components
| Component | Qty | Description |
|---|---|---|
| Main Treatment Unit | 1 set | Comprises an aeration tank, contact oxidation tank, settling tank, and membrane tank, all working in tandem to process wastewater effectively. |
| Cutting Pump | 1 set | Specifically designed for efficient waste processing, ensuring smooth flow and breakdown of solid matter. |
| Air Pump | 2 sets | Dual pumps are provided to ensure reliable aeration, which is crucial for the biological treatment process. |
| Discharge Pump | 1 set | Responsible for pumping out the treated effluent from the system, ensuring a continuous flow of clean water. |
| UV Disinfectant | 1 set | Offers chemical-free disinfection, eliminating harmful pathogens without introducing any additional chemicals into the environment. |
| Membrane Module | 1 set | Advanced filtration component that ensures the effluent is clear, odorless, and free from suspended solids. |
| Electric Control Box | 1 set | Automates the entire system, allowing for minimal crew intervention and ensuring smooth operation. |
| Piping Accessories | 1 set | A complete installation kit that includes all the necessary pipes and fittings for easy and quick setup. |
Certified Performance Standards
Our marine black and grey water treatment system surpasses the IMO MEPC.159(55) “New Standards” requirements, as evidenced by the following performance metrics:
- BOD5: ≤25 mg/L
- COD: ≤125 mg/L
- TSS: ≤35 mg/L
- Coliform: ≤100 CFU/100mL
- pH: 6.0 – 8.5
Why Opt for Our Marine Wastewater Treatment System?
- Advanced Treatment Technologies
- The three-stage biological process ensures superior breakdown of organic matter, leaving the effluent in a highly purified state.
- Membrane filtration technology guarantees clear and odorless effluent, enhancing the overall quality of the discharged water.
- UV disinfection effectively eliminates pathogens without the use of chemicals, making it an eco-friendly choice.
- Operational Advantages
- Automated control system reduces the need for constant crew attention, allowing for more efficient use of manpower.
- Dual air pumps provide redundant aeration, ensuring uninterrupted operation even in the event of a pump failure.
- The compact footprint of the system makes it easy to install on marine vessels of various sizes.
- Regulatory Compliance
- Fully compliant with MARPOL Annex IV, ensuring that your vessel meets all current environmental regulations.
- Meets the latest IMO standards, providing peace of mind and avoiding potential fines or penalties.
- Designed to be adaptable to future regulation changes, ensuring long-term viability and compliance.
